Electrical System 126Service Manual – CS7000

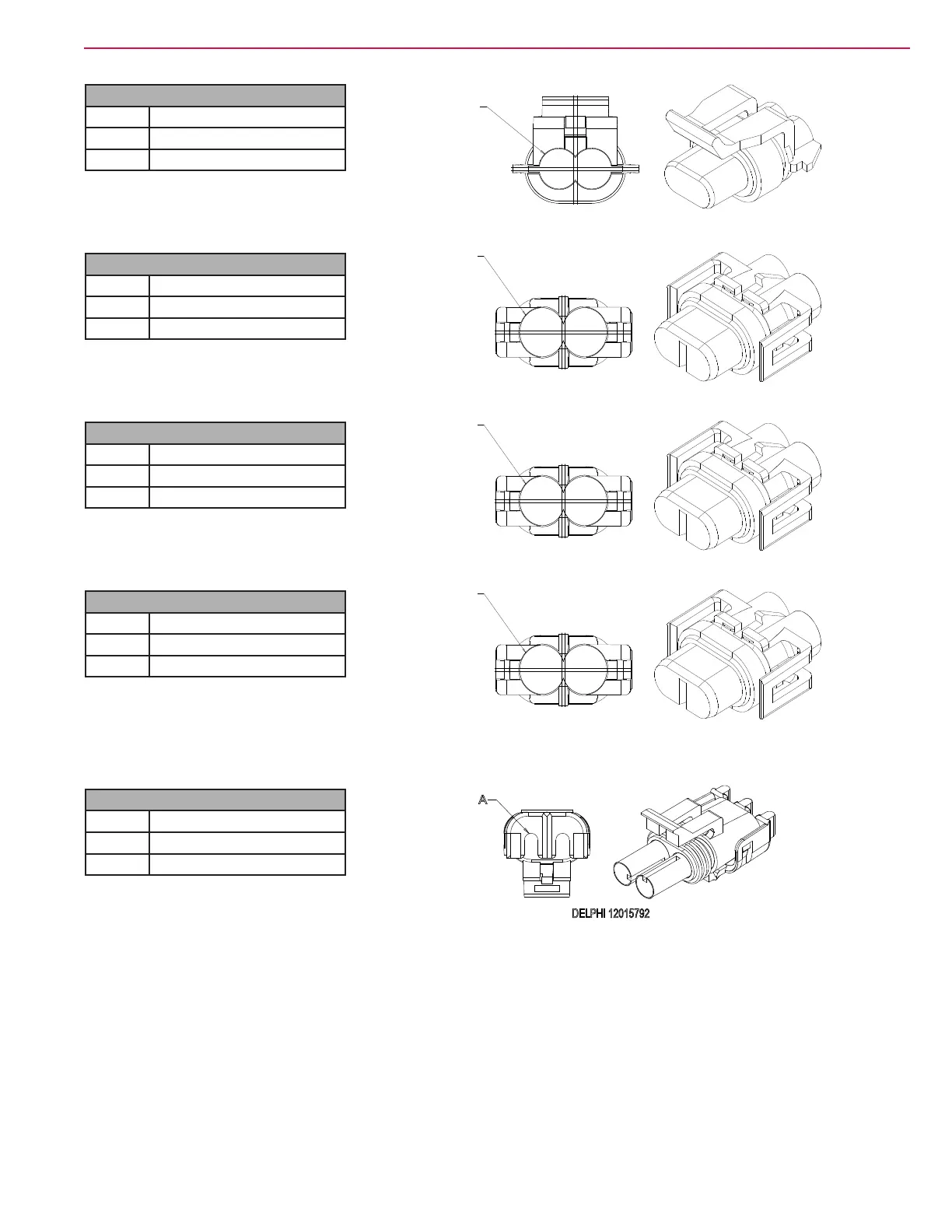

X153 - Tail Lamp, Left (LT9)

Pin Wire

A 010 TAN/BLK

B 011 BLK/YEL

X154 - Tail Lamp, Right (LT5)

Pin Wire

A 012 TAN/BLK

B 025 BLK/YEL

X161 - Left Head Lamp (LT3)

Pin Wire

A 236 BRN

B 237 BLK/WHT

X162 - Right Head Lamp (LT2)

Pin Wire

A 274 BRN

B 276 BLK/WHT

X165 - Curb Lamp

Pin Wire

A 273 BRN

B 275 BLK/WHT

SIDE

TOP

DELPHI 12052641

SIDE

TOP

DELPHI 12124819

SIDE

TOP

DELPHI 12124819

SIDE

TOP

DELPHI 12124819
