Nilfisk-Advance CS7000 Service Manual

Electrical System 127Service Manual – CS7000

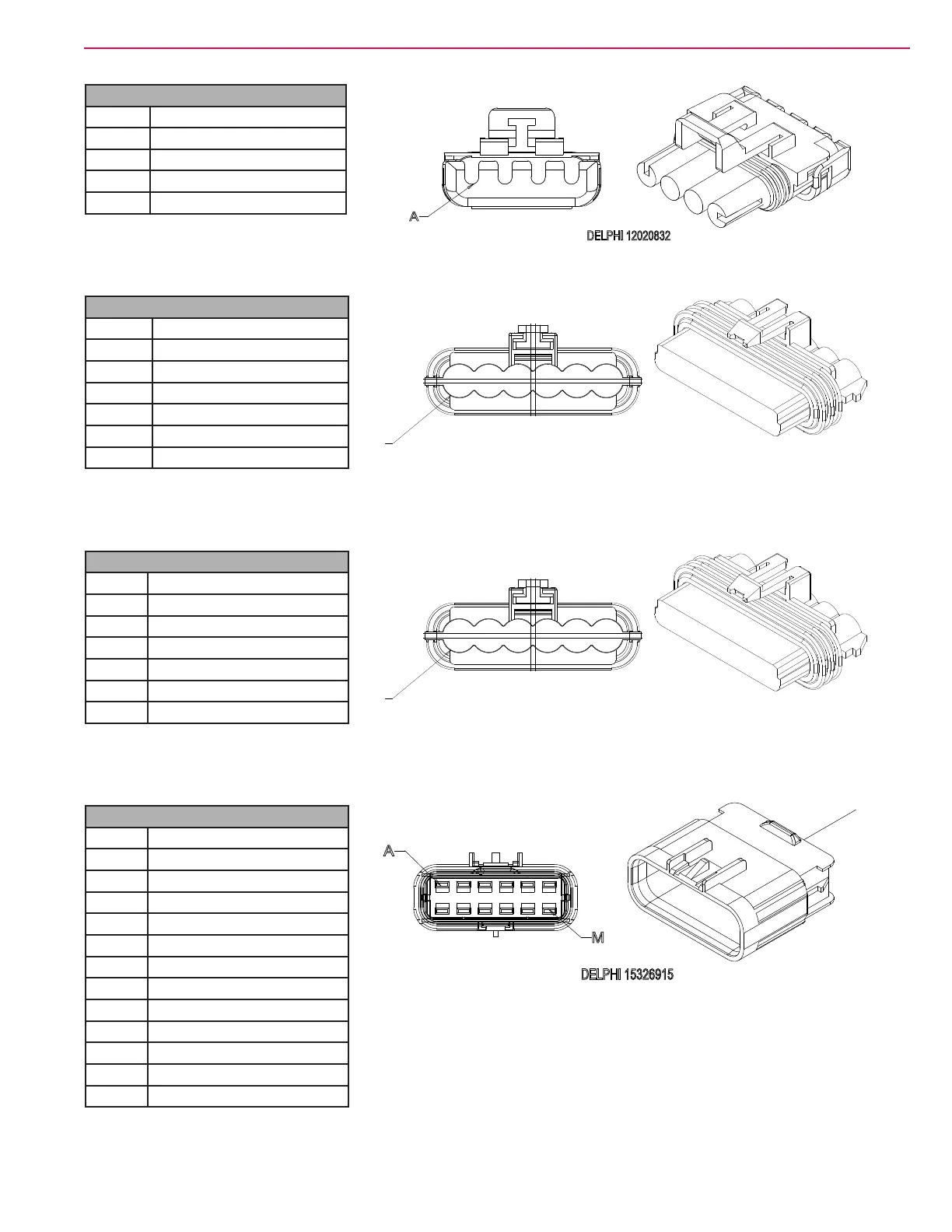

X166 - Tail Lamp Harness Connector (X239)
Pin Wire
A 094 ORN/BLU
B 107 TAN/BLK
C 285 BLK/YEL
D 101 YEL/GRN
X172 - Splice Saver Connector Comb
Pin Wire
A 265 GRA
B 264 GRA
C 097 GRA
D 041 GRA
E 255 GRA
F ---
X173 - Splice Saver Connector Comb
Pin Wire
A 037 GRA
B 269 GRA
C 266 GRA
D ---
E ---
F 265 GRA
X175 - Main Harness Connector
Pin Wire
A 319 PINK
B 322 BLU/PINK
C 323 GRN/YEL
D 324 GRA
E 325 GRA/ORN
F 326 GRA/BLU
G 327 WHT/ORN
H 328 YEL/RED
J 330 TAN/WHT
K 334 BRN/ORN
L 335 ORN
M ---
DELPHI 12020832
A
SIDE
TOP
DELPHI 12059573
A
SIDE
TOP
DELPHI 12059573
A
DELPHI 15326915
A
M
