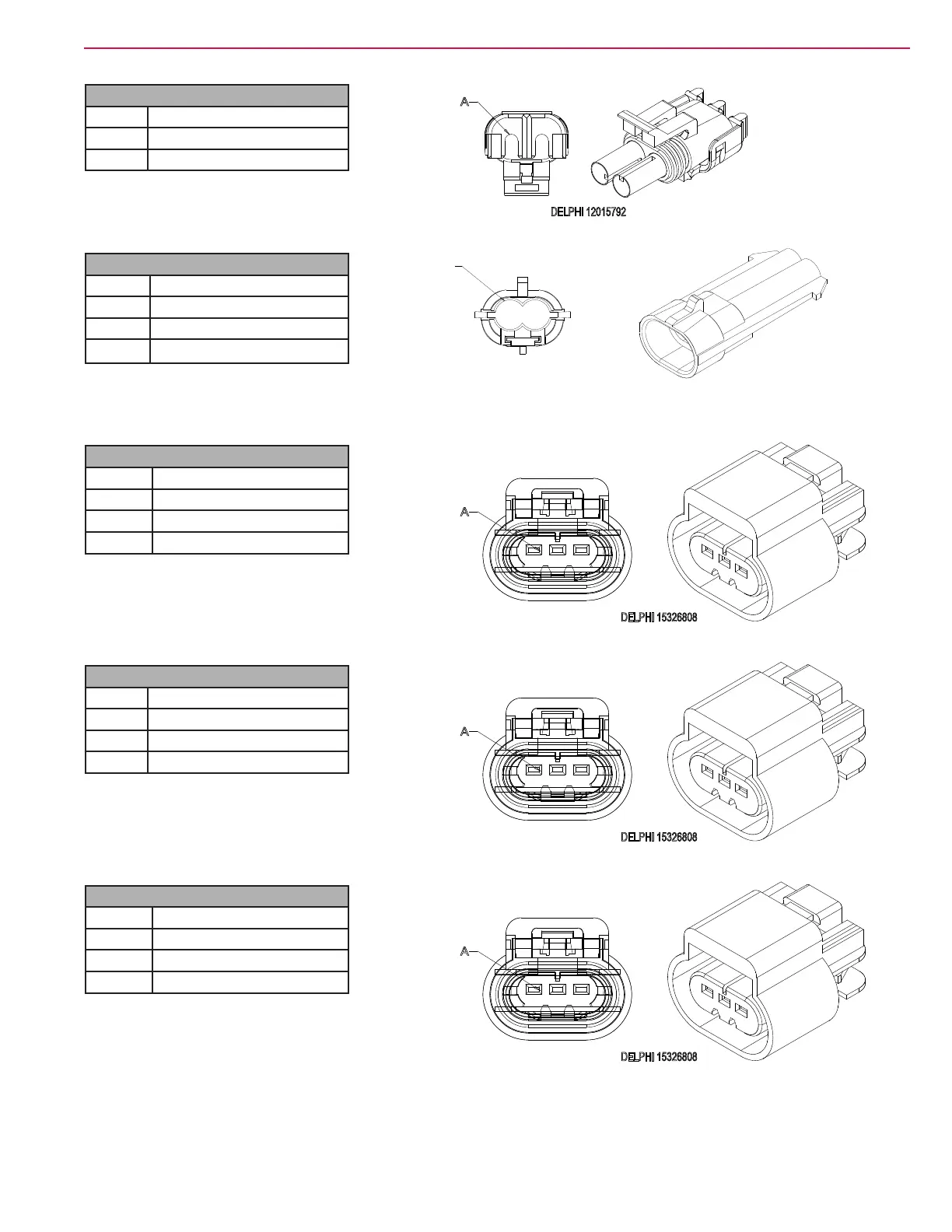

Electrical System 128Service Manual – CS7000

X178 - Back Up Alarm (H1)

Pin Wire

A 037 GRA

B 076 GRN/BRN

X180 - Stop/Turn Lamp, Left (LT9)

Pin Wire

A 023 ORN/BLU

B 009 BLK/YEL

X181 - Broom Motor Current Sensor (B2)

Pin Wire

A 261 BLU/YEL

B 256 VIO/WHT

C 215 ORN/BLU

X182 - Vacuum Motor Current Sensor (B3)

Pin Wire

A 262 BLU/YEL

B 257 VIO/WHT

C 184 RED/WHT

X183 - Brush Motor Current Sensor (B1)

Pin Wire

A 263 BLU/YEL

B 258 VIO/WHT

C 178 BRN

DELPHI 12015792

DELPHI 12162000

DELPHI 15326808
