Electrical System 129Service Manual – CS7000

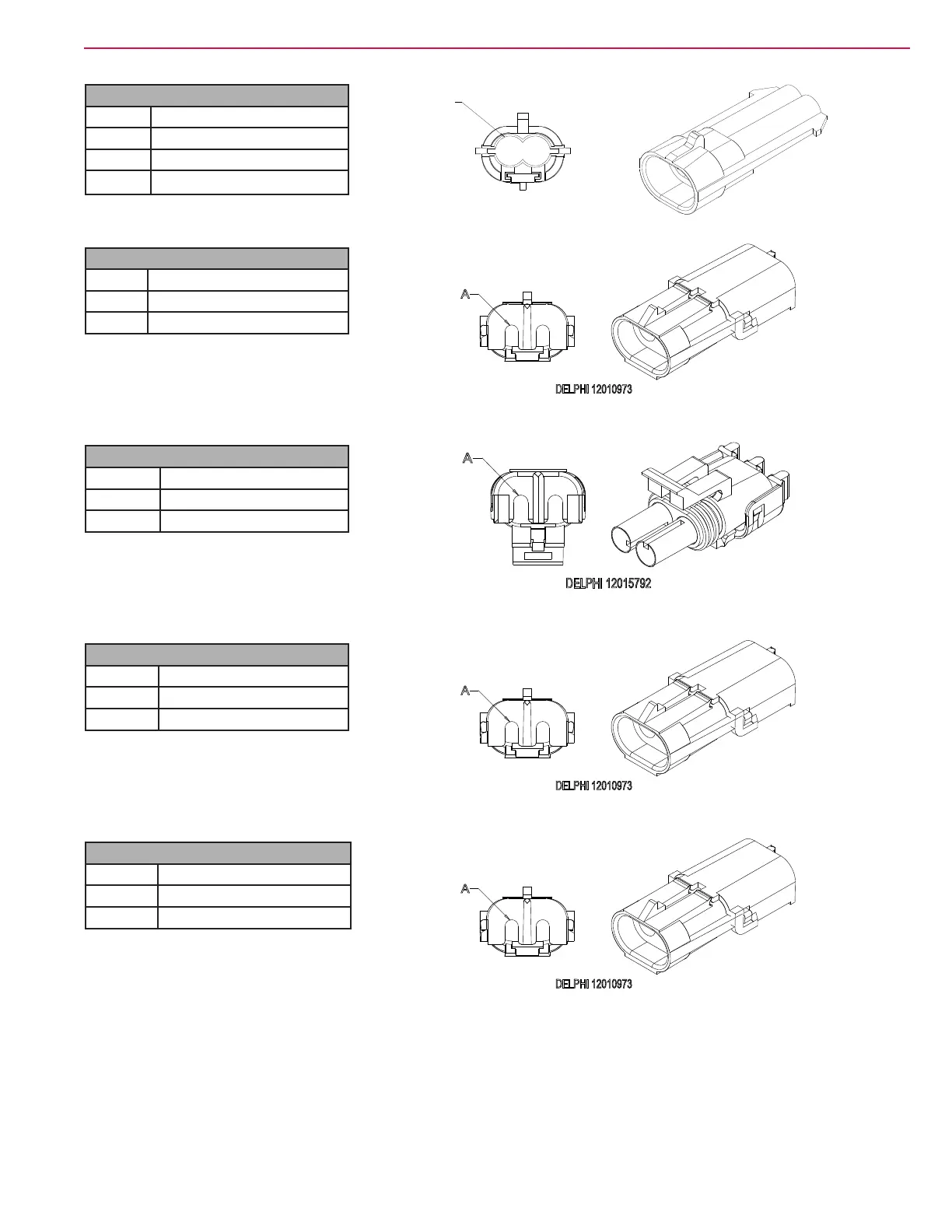

X184 - Stop/Turn Lamp, Right (LT11)

Pin Wire

A 014 YEL/GEN

B 024 BLK/YEL

X187 - Battery Interlock Switch (S13)

Pin Wire

A 315 TAN

B 338 GRN/BLU

X190 - Solution Solenoid Valve (L1)

Pin Wire

A 157 YEL/ORN

B 089 VIO

X202 - Brake Switch (S5)

Pin Wire

A 145 ORN/GRA

B 231 BLK

X204 - Hopper Interlock Switch (S3)

Pin Wire

A 046 RED/BLK

B 230 BLK

DELPHI 12162000
