Electrical System 130Service Manual – CS7000

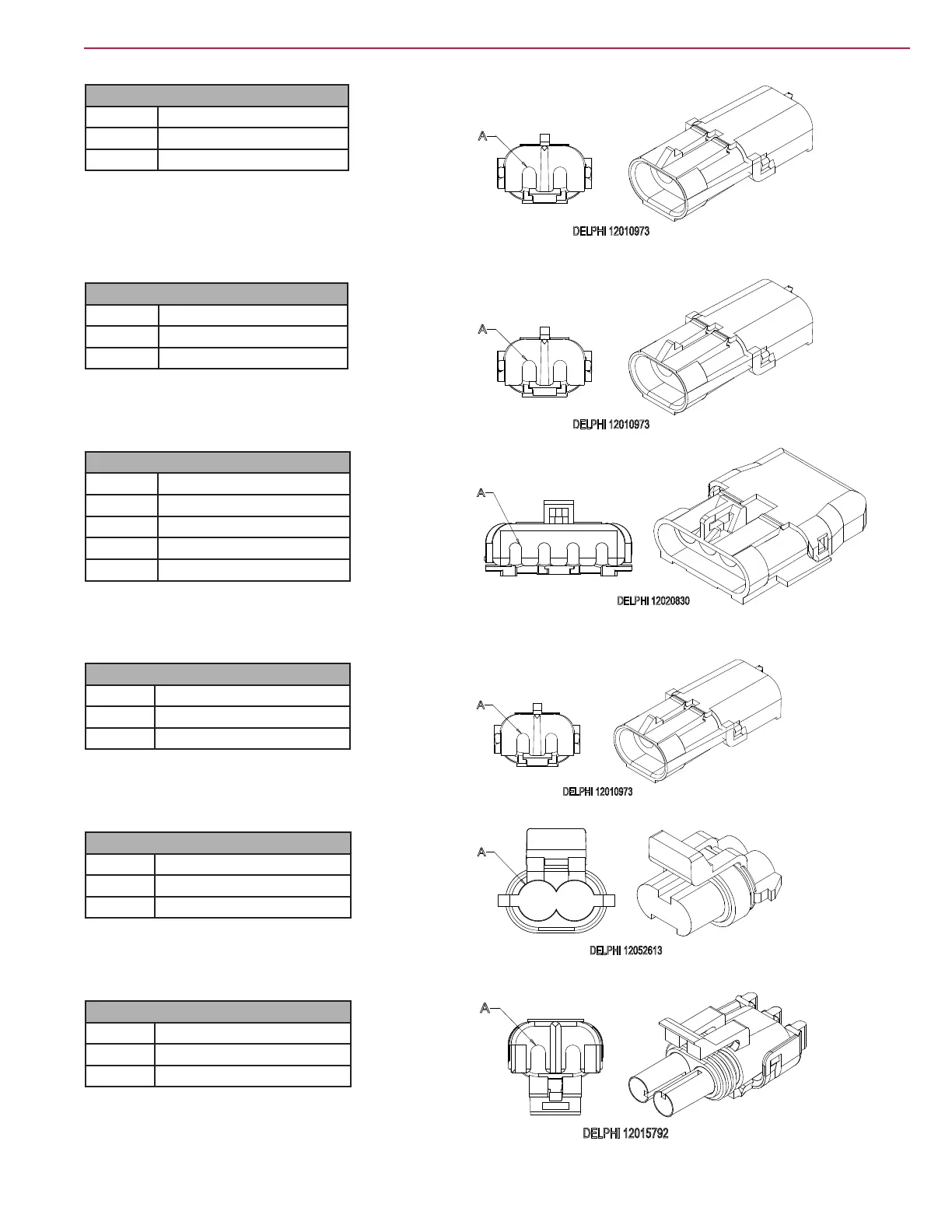

X236 - Dump Door Extend Limit Switch (S7)

Pin Wire

A 290 ORN/RED

B 291 BLK

X238 - Dump Door Retract Limit Switch (S8)

Pin Wire

A 292 YEL/WHT

B 293 BLK

X239 - Main Harness Connector (X166)

Pin Wire

A 023 ORN/BLU

B 013 TAN/BLK

C 022 BLK/YEL

D 014 YEL/GRN

X255 - Scrub Deck Retract Limit Switch (S1)

Pin Wire

A 161 RED/ORN

B 229 BLK

X256 - Scrub Deck Actuator Motor (M11)

Pin Wire

A 132 RED/GRN

B 135 YEL/GRA

X257 - Beacon (LT10)

Pin Wire

A 220 VIO

B 234 BLK

DELPHI 12010973

DELPHI 12020830

DELPHI 12010973

DELPHI 120526 13

DELPHI 120157 92
