Electrical System 131Service Manual – CS7000

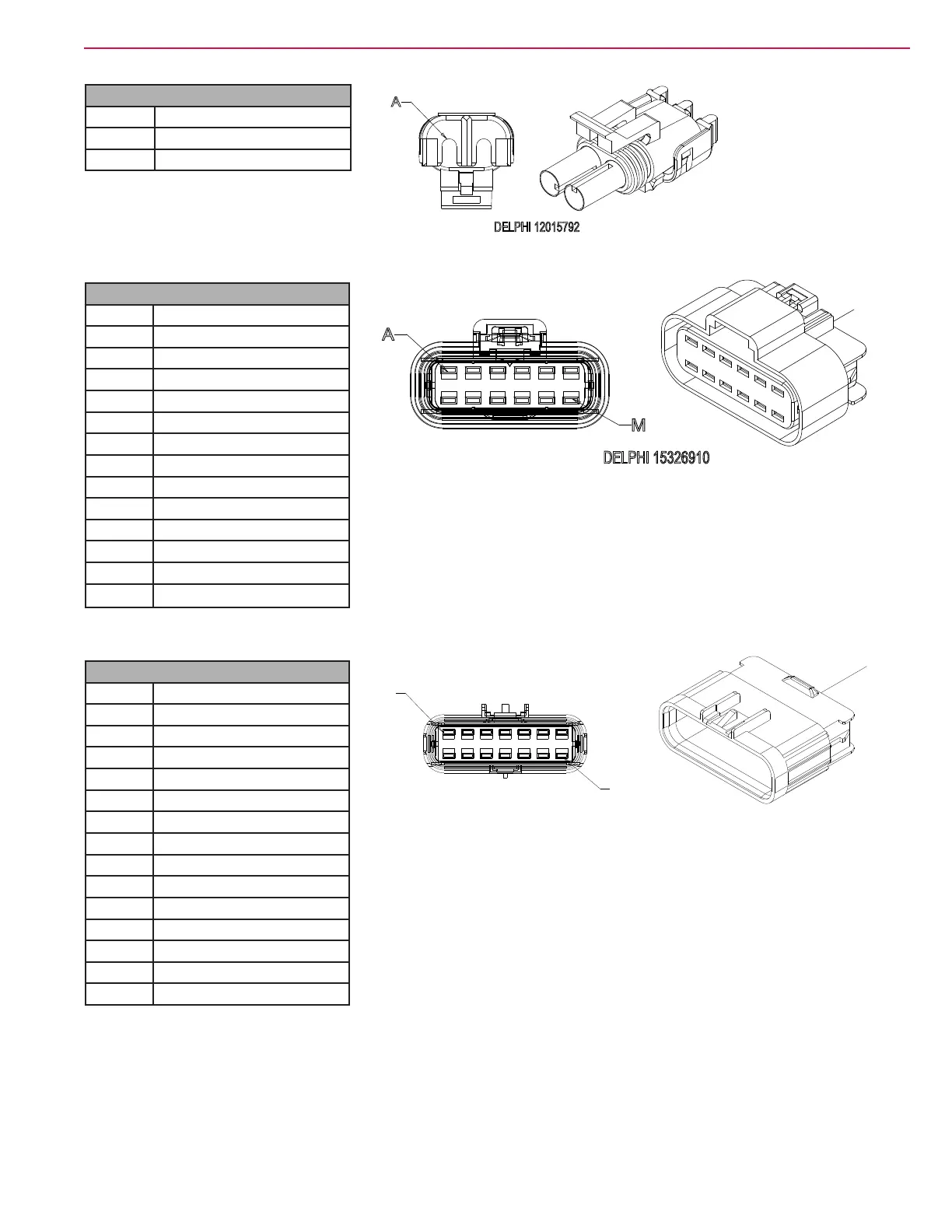

X258 - Trouble Light (LT1)

Pin Wire

A 316 YEL/BRN

B 232 BLK

X262 - Main Harness Connector (X1)

Pin Wire

A 176 GRA

B 181 BRN/RED

C 223 WHT/GRA

D 224 BLK

E 225 YEL/VIO

F 226 BLK

G 259 ORN/GRN

H 260 BLK

J 267 VIO

K 268 BLK/RED

L 271 BRN

M 272 BLK/WHT

X263 - Main Harness Connector (X2)

Pin Wire

A ---

B 218 ORN/YEL

C 279 BLK/YEL

D 281 YEL/RED

E 282 GRA/VIO

F 283 GRN/ORN

G 286 BRN/GRN

H 287 RED/GRA

J 290 ORN/RED

K 291 BLK

L 292 YEL/WHT

M 293 BLK

N 294 WHT/RED

P 296 BLK

DELPHI 120157 92

DELPHI 15326910

DELPHI 15326922
