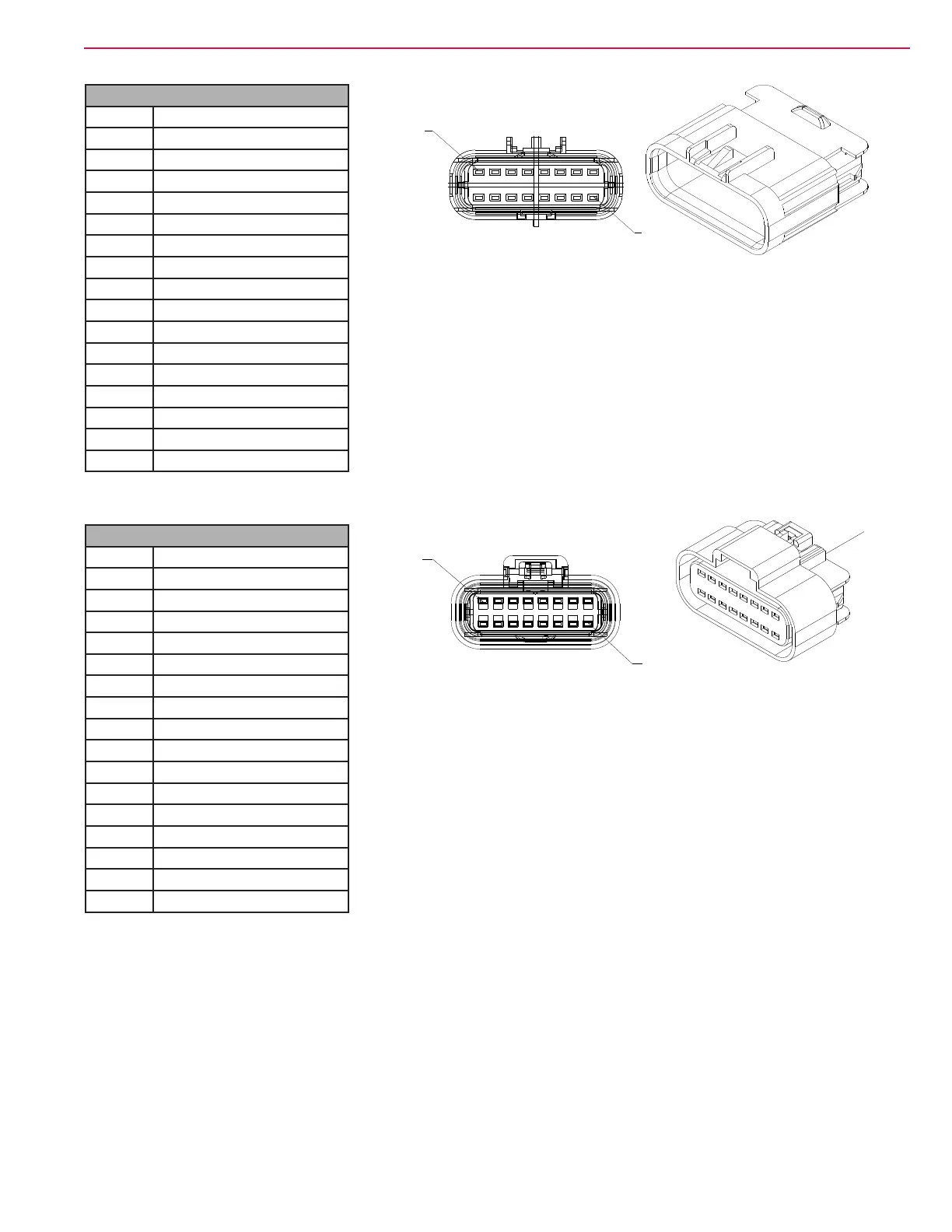

Electrical System 132Service Manual – CS7000
X265 - Engine Harness Connector
Pin Wire
A 321 PINK
B 341 PINK
C 318 BLK/RED
D 317 PINK/YEL
E ---
F 322 BLU/PINK
G 323 GRN/YEL
H ---
J ---
K ---
L ---
M ---
N ---
P ---
R ---
S ---
X266 - Engine Harness Connector
Pin Wire
A ---
B ---
C 324 GRA
D ---
E ---
F ---
G ---
H ---
J 325 GRA/ORN
K 326 GRA/BLU
L ---
M ---
N ---
P ---
R ---
S ---
SIDE
TOP
DELPHI 15326868
A
S
DELPHI15326863
A
S
