Electrical System 133Service Manual – CS7000

X268 - Extended Scrub Level Switch (S4)

Pin Wire

A 035 GRA/YEL

B 036 BLK

X270 - Main Harness Connector (X271)

Pin Wire

A 017 BLU/GRA

B 018 BLK

C 019 BLU/GRA

D 020 BLK

X271 - Vacuum Motor Harness (X270)

Pin Wire

A 026 BLU/GRA

B 027 BLK

C 028 BLU/GRA

D 029 BLK

X274 - Engine Interface Harness Connector

(X175)

Pin Wire

A 123 PINK

B 129 BLU/PINK

C 108 GRA/YEL

D 102 GRA

E 131 GRA/ORN

F 134 GRA/BLU

G 118 WHT/ORN

H 117 YEL/RED

J 112 TAN/WHT

K 355 ORN

L 222 BRN/ORN

M ---

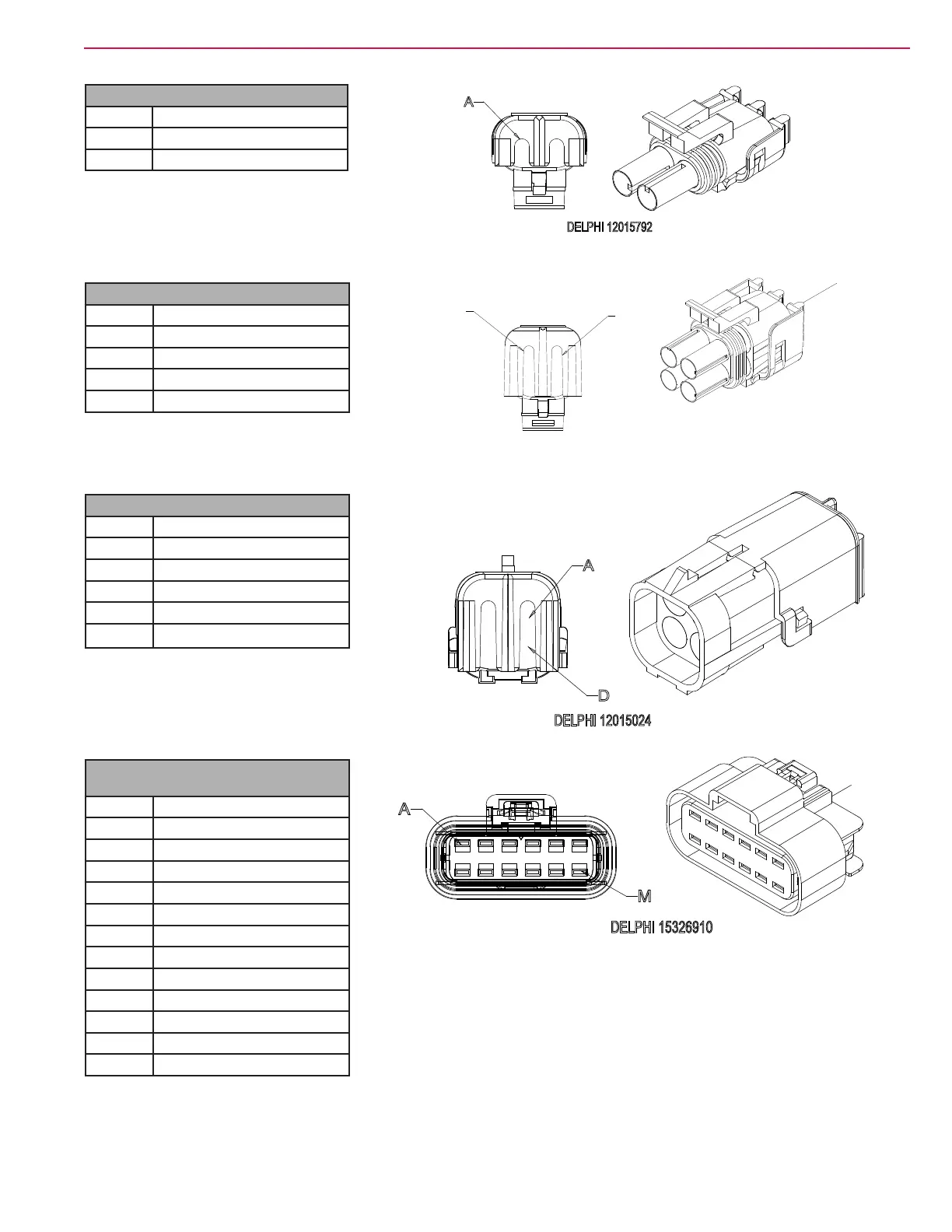

DELPHI 120157 92

DELPHI 12015798

DELPHI 1201 5024

DELPHI 153269 10
