Wheel System, Traction 430Service Manual – CS7000

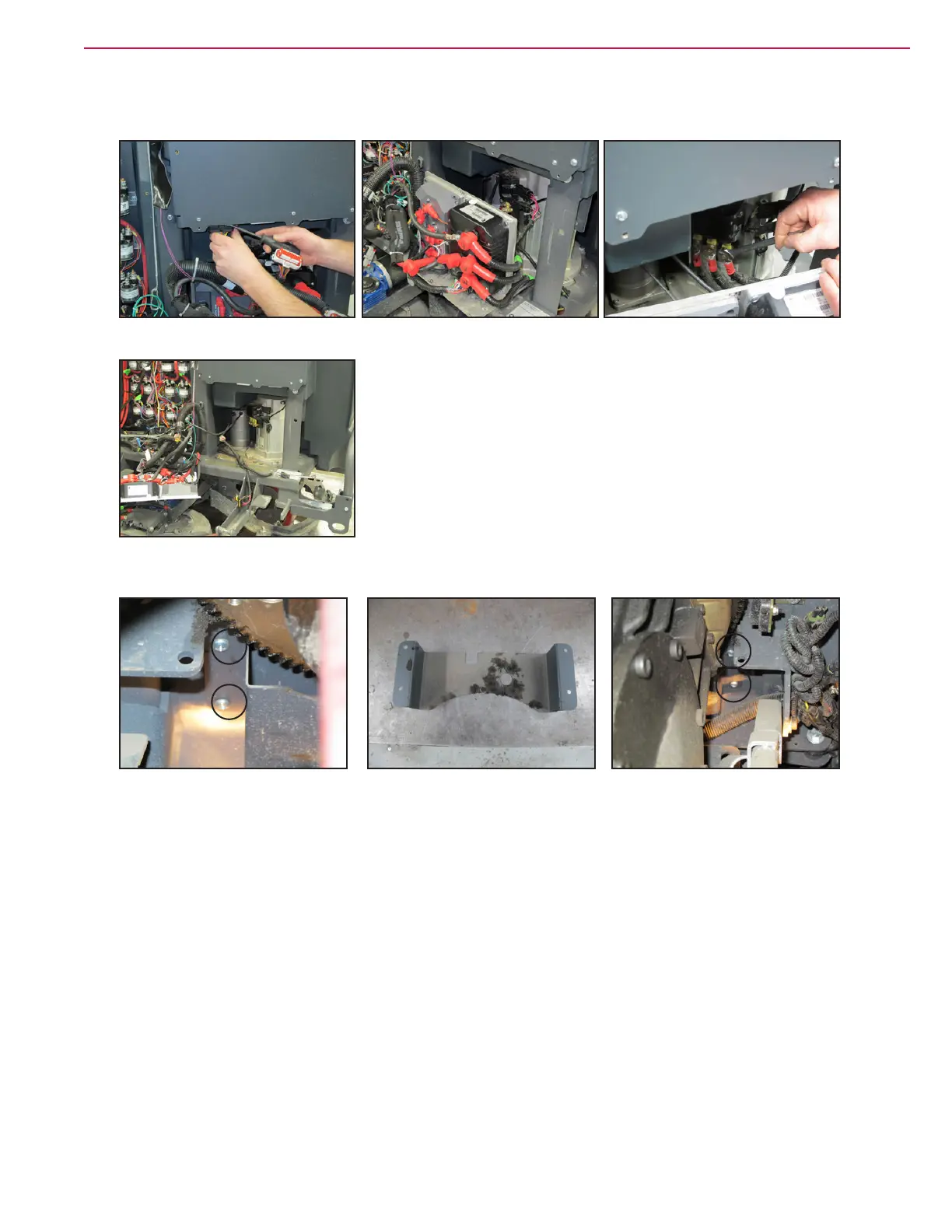

6. Disconnect all of the main machine controller connectors and pull the harness aside. Remove the
controller mounting bracket fasteners and pull it away to gain access to the drive motor wiring. Label
the drive motor cables for proper reassembly, then remove them from the motor.
7. Swing the controller bracket assembly out of the way (reposition the steering motor wiring as needed).
8. Working from under the machine, remove the cover plate that is under the steering drive gear. There
are two screws on each side.
9. Lift the squeegee lift bar and tie it up.
10. Block drive wheel with wheel chocks on both sides so that it cannot roll.
