Control System 69Service Manual – CS7000
4. Press the One-touch scrub switch to enter the service menu.
5. With the arrow cursor aligned with “Service Mode”, press the One-touch scrub switch to enter the mode.
“Service Mode” will be displayed at the top of the LCD followed by battery voltage, drive pedal position
sensor voltage, drive mode (Reverse, Neutral or Forward) and any current main machine controller
faults..
With the introduction of a new main machine controller 56111560, 4 more “screens” are available in the
service test mode. To cycle through the screens, press the burst of power button.

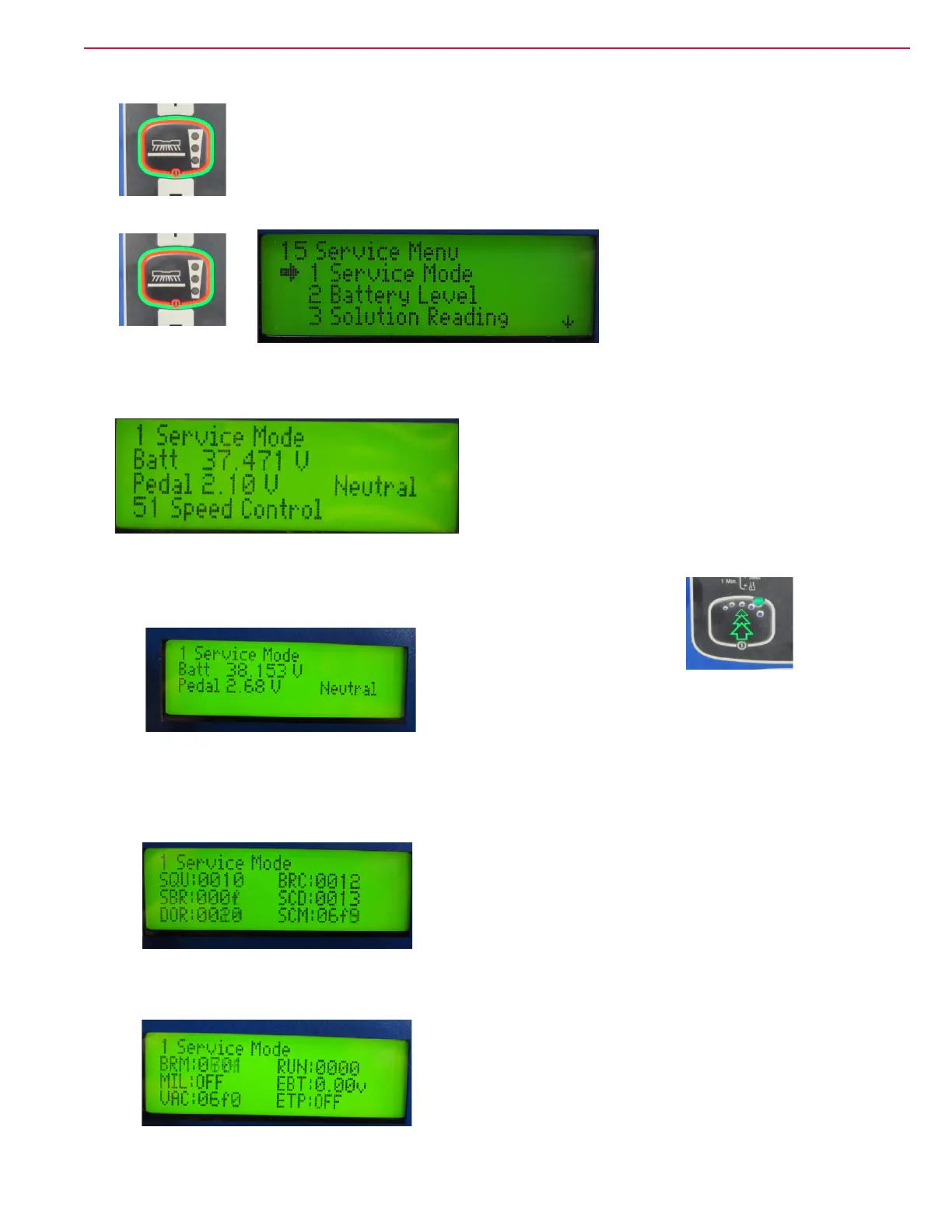

◦ Screen 1:
− Shows the battery voltage seen by the main controller, the drive pedal position sensor voltage
and the transport status from the drive controller.
◦ Screen 2
− This screen is intended for engineers. All values are hexadecimal.
◦ Screen 3
Service Mode Screen 1
Service Mode Screen 2
Service Mode Screen 3
To Next Page
