Control System 70Service Manual – CS7000
− BRM, VAC and RUN are intended for engineers. All values are hexadecimal.
− MIL (Malfunction Indicator Lamp) is the input request from the engine controller (LPG LEV
engine only) to the main controller to turn on the “check engine” icon..
− EBT (Engine Battery) is the engine starting battery voltage as seen by the main controller.
− ETP (Engine Temperature or Pressure). This is an input signal from the LPG LEV engine
controller to the main controller to inform that the engine has been shut down due to either high
temperature or low oil pressure.
◦ Screen 4
− This is the main broom actuator potentiometer (R4) voltage as seen by the main controller.
◦ Screen 5
− This screen shows the amperage reported to the main machine controller by each of the three
current sensors.
Once in the service mode, you will be able to turn various electrical loads on and off through the control
panel buttons. Some loads are toggled on and off by a single button press, while others are only on when the
button is held down. To exit the service mode: Turn the Key Switch off.

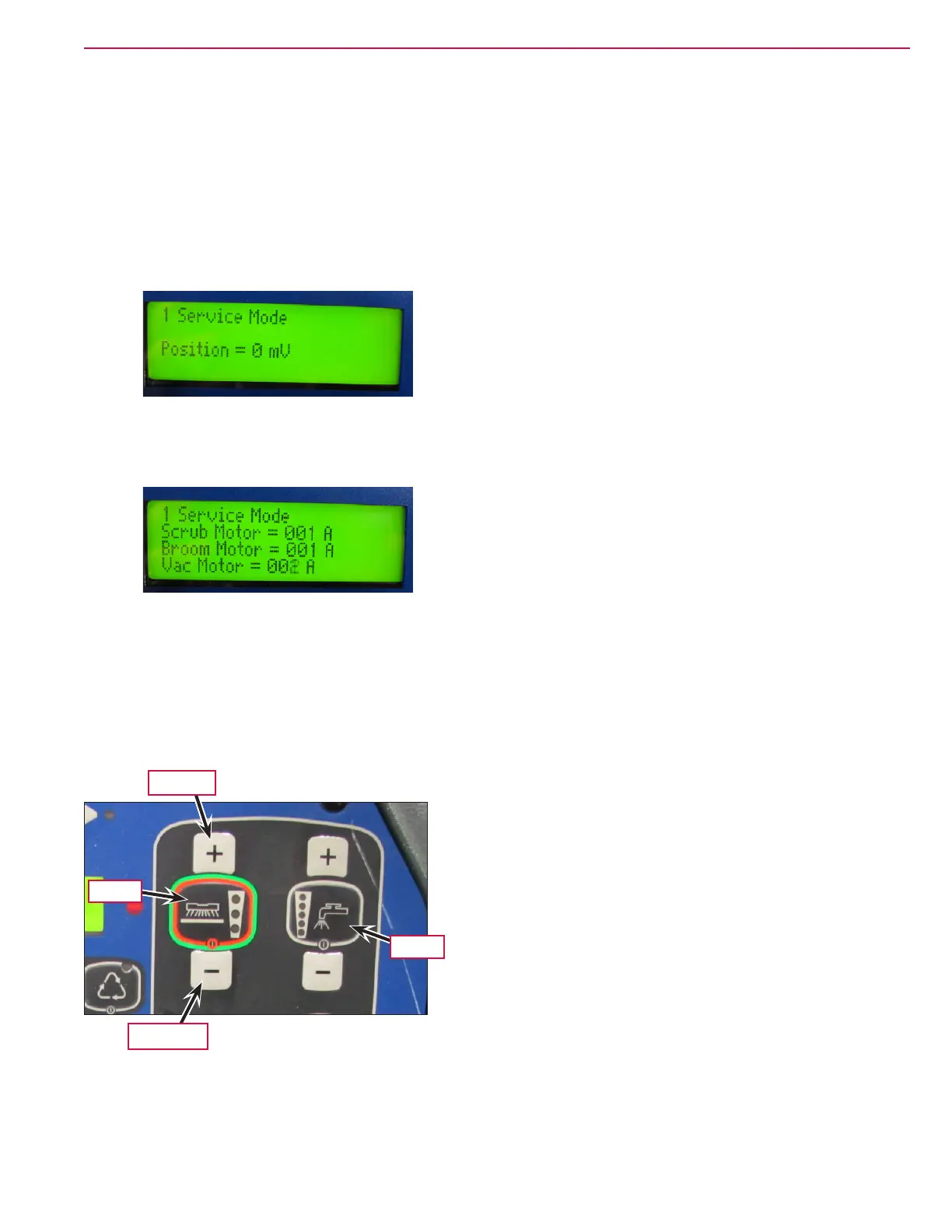

Service Mode Screen 4
Service Mode Screen 5
Scroll Up
Scroll Down
Enter
Exit
To Next Page
