Oce PlotWave 340 Operation Guide

2.

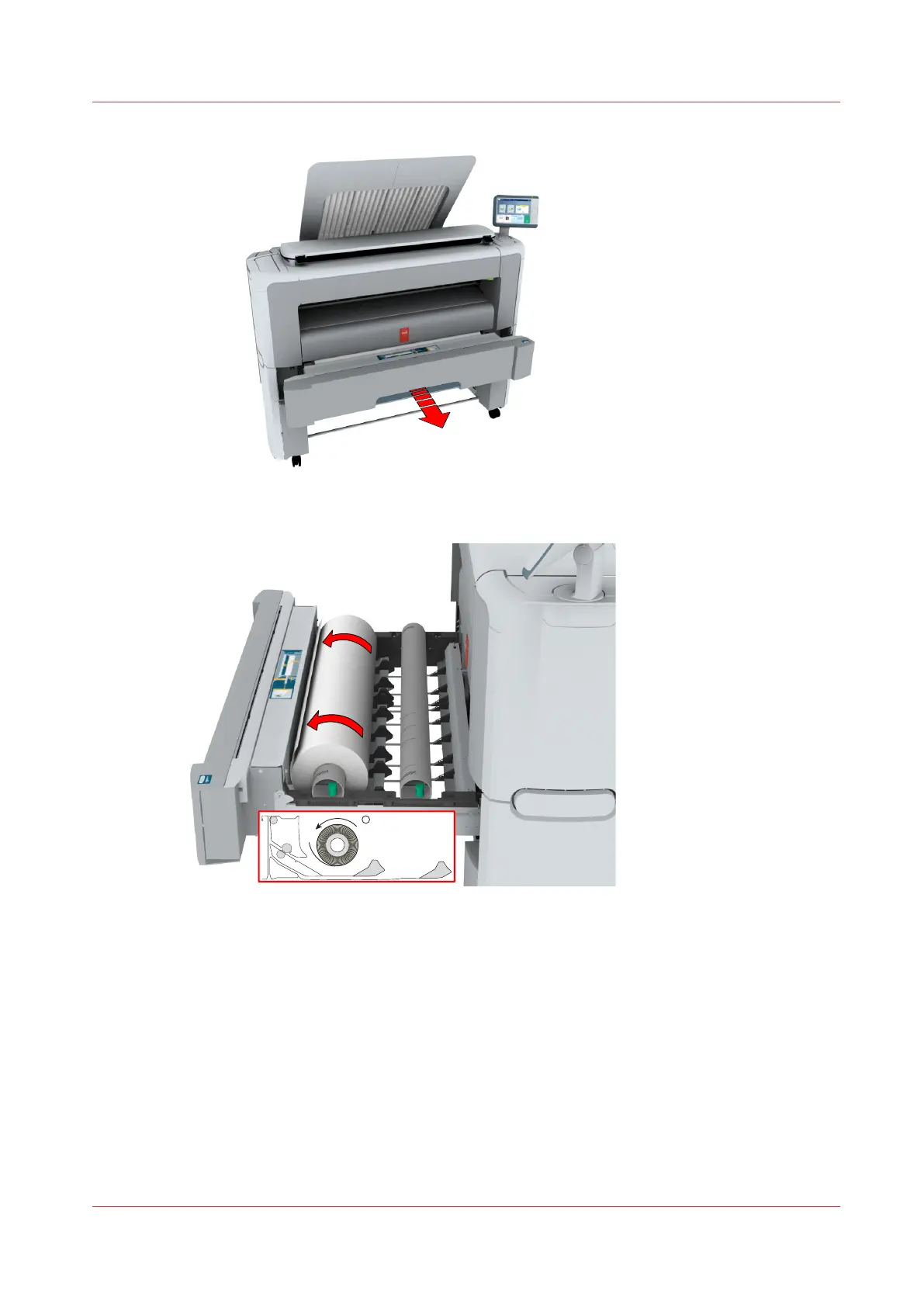

Roll the media back manually, to remove the media from the metal paper guide.
1
3.
Use both hands (as indicated) to lift the roll holder with the media roll, and put it on the roll
loading station.
Remove a media roll
Chapter 5 - Maintain the Printing System
259

Oce PlotWave 340 Specifications

General

Print Resolution	600 x 1200 dpi
Maximum Roll Width	36 inches
Memory	2 GB
Hard Drive	500 GB
Maximum Print Length	Unlimited
Maximum Print Width	36 inches
Media Handling	Roll feed
Connectivity	Ethernet 10/100/1000Base-T
Media Width	297 - 914 mm
Media Types	Recycled
Media Thickness	0.07 - 0.3 mm
Operating Systems Supported	Windows, Linux
