Oce PlotWave 340 Operation Guide

4.

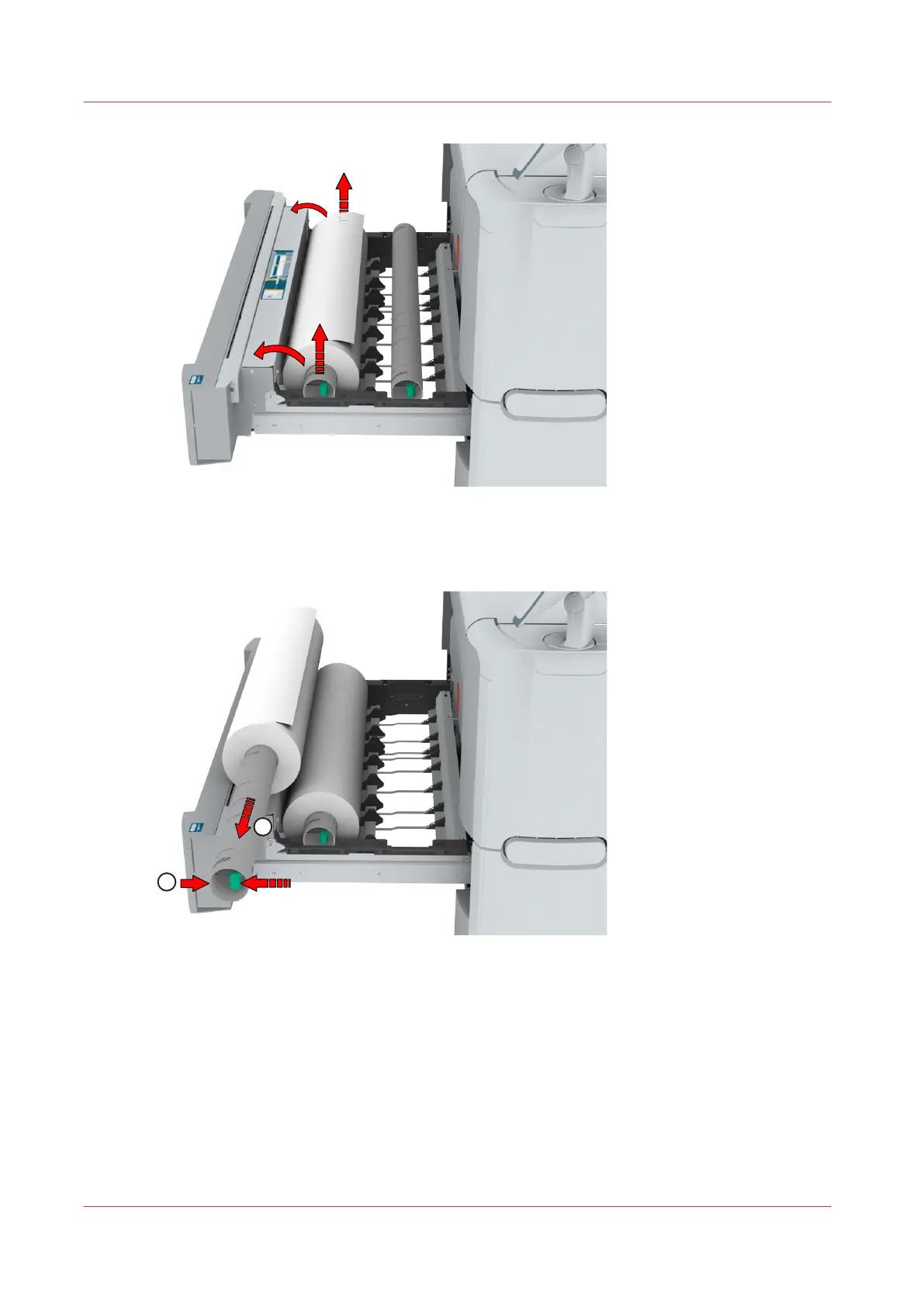

Pull the handle of the roll holder locking mechanism towards you, and remove the roll holder
from the core of the media roll.
Put the empty roll holder back into the drawer (as shown in the illustrations)
1
2
5.
Remove the media roll from the roll loading station.
Store it in a safe place, so that it cannot fall over or roll away.
Remove a media roll
260
Chapter 5 - Maintain the Printing System

Oce PlotWave 340 Specifications

General

Print Resolution	600 x 1200 dpi
Maximum Roll Width	36 inches
Memory	2 GB
Hard Drive	500 GB
Maximum Print Length	Unlimited
Maximum Print Width	36 inches
Media Handling	Roll feed
Connectivity	Ethernet 10/100/1000Base-T
Media Width	297 - 914 mm
Media Types	Recycled
Media Thickness	0.07 - 0.3 mm
Operating Systems Supported	Windows, Linux
