Chapter2 Operating Range Selection
F3SG-R
User’s Manual
System Operation and Functions
2-19-4. Setting by Wiring
For the F3SG-RE, the user can select the mode of Operating Range Selection by wiring.
The F3SG-RE enters the Lockout state when the Operating Range Select Input line (white) is open.
2-19-5. Setting with Configuration Tool
The user cannot make any changes to this function by the Configuration Tool.

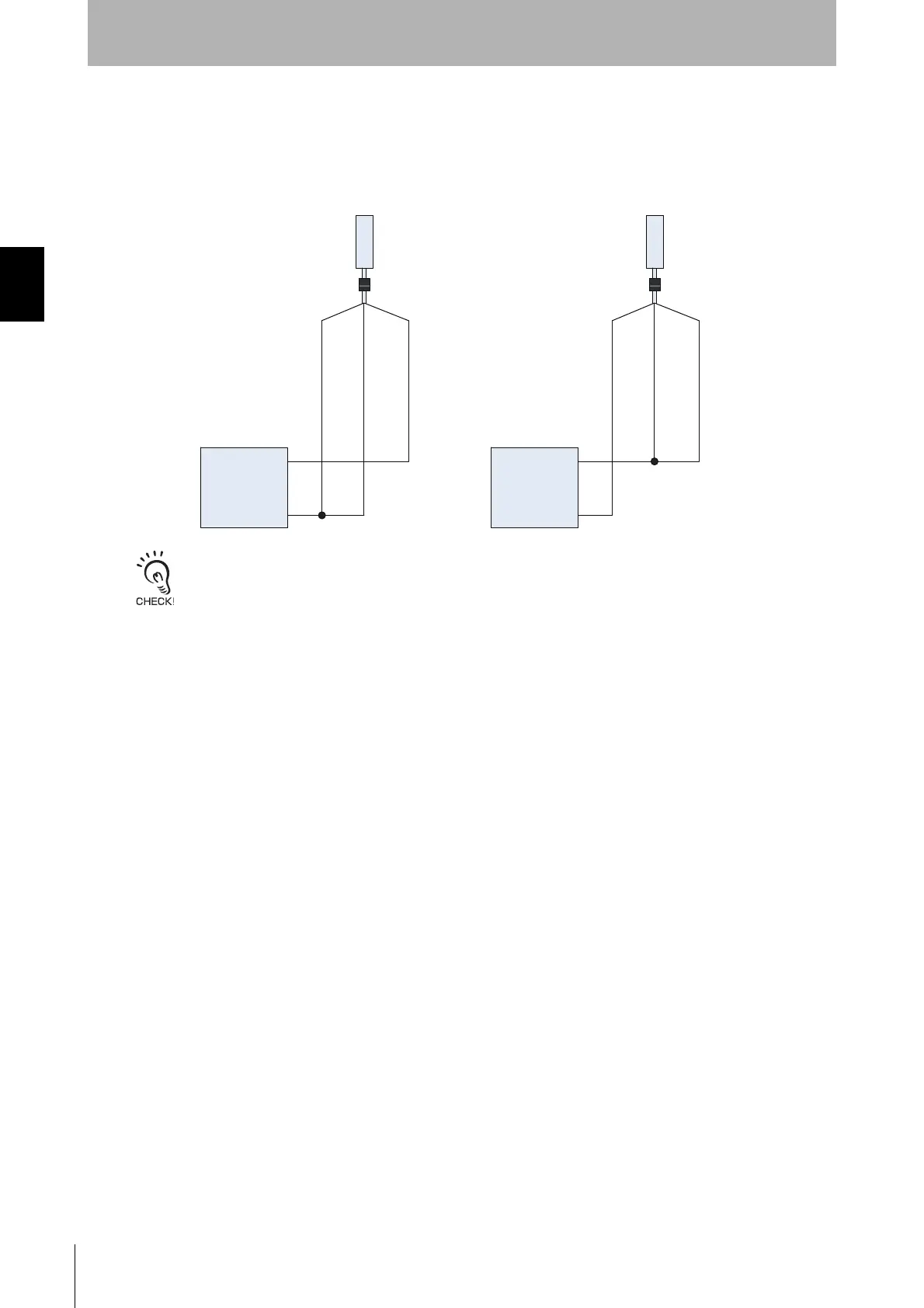

Operating Range Select Input: White Operating Range Select Input: White
Long ModeShort Mode
XS5F-D421-

80-F XS5F-D421-

80-F
<Basic wiring diagram>
Power supply
0 VDC
+24 VDC
Power supply
0 VDC
+24 VDC
0 VDC : Blue 0 VDC : Blue 24 VDC : Brown 24 VDC : Brown
Emitter Emitter

Omron F3SG series Specifications

General

Type	Safety Light Curtain
Protection Rating	IP67
Connection	M12 connector
Detection Method	Infrared Light
Operating Temperature	-10°C to +55°C
Resolution	14mm, 25mm, 40mm
Standards	EN/IEC 61496-1, EN ISO 13849-1
Power Supply Voltage	24V DC ±10%
