Chapter2 External Test
F3SG-R
User’s Manual
System Operation and Functions
2-7. External Test
2-7-1. Overview
This function stops the emission using an external signal. It can be used to verify that a safety system
should properly stop (safety output turns OFF) when F3SG-RA is interrupted.
To stop the emission, apply the following voltage to the emitter's TEST input line according to the DIP
switch settings of the emitter.
When muting, safety output is kept ON even if the emission is stoped.
The External Test is not available for the F3SG-RE.

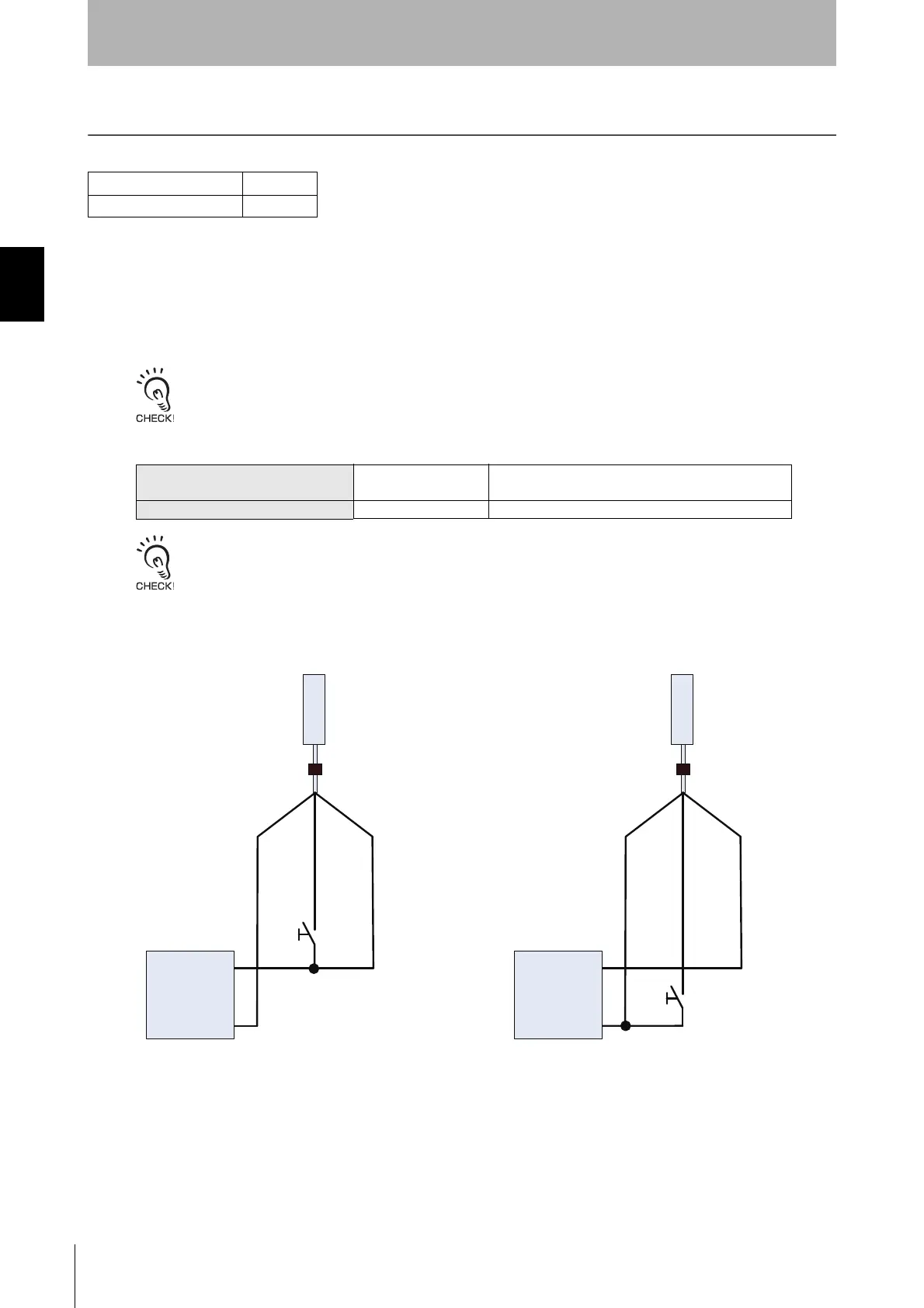

<Basic wiring diagram>
F3SG-RA Series X
F3SG-RE Series
DIP Switch settings
(Position 4 on Emitter)
24 V Active 0 V Active
Input voltage 9 V to Vs 0 to 3 V
㻱㼙㼕㼠㼠㼑㼞 㻱㼙㼕㼠㼠㼑㼞
24 V Active 0 V Active
+24 VDC
Power Supply
S1: Test Switch(Connect the line to
0 V if this switch is not required)
S1: Test Switch (Connect the line to
24 V if this switch is not required)
0 VDC
+24 VDC
Power Supply
0 VDC
24 VDC: Brown
TEST: Black 0 VDC: Blue
24 VDC: Brown
TEST:

Black
0 VDC: Blue
S1
S1
F39-JG

A-L F39-JG

A-L

Omron F3SG series Specifications

General

Type	Safety Light Curtain
Protection Rating	IP67
Connection	M12 connector
Detection Method	Infrared Light
Operating Temperature	-10°C to +55°C
Resolution	14mm, 25mm, 40mm
Standards	EN/IEC 61496-1, EN ISO 13849-1
Power Supply Voltage	24V DC ±10%
