Omron F3SG series User Manual

126
Chapter4 Installation Considerations
F3SG-R
User’s Manual
Wiring/Installation

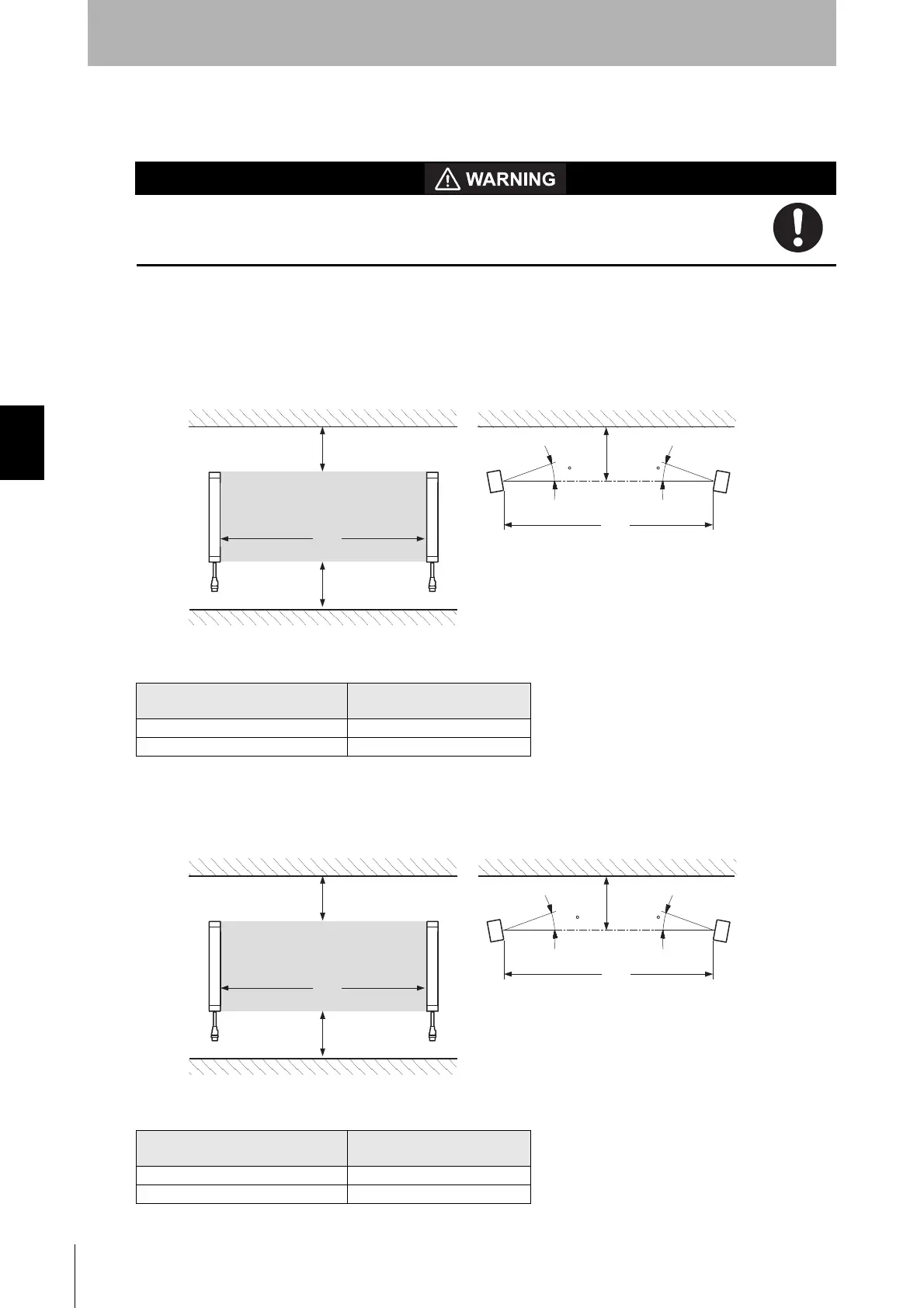

4-1-3. Distance from Reflective Surfaces
Install the sensor system so that it is not affected by reflective surfaces. Failure to do so
may hinder detection, resulting in serious injury.
Install the sensor system at distance D or further from highly reflective surfaces such as metallic walls,
floors, ceilings, or workpieces, as shown below.
4-1-3-1. F3SG-4R (Type 4 ESPE)
4-1-3-2. F3SG-2R (Type 2 ESPE)
Distance between an emitter and a
receiver (operating range L)
Allowable installation distance
D
0.3 to less than 3 m 0.13 m
3 m or more L/2 x tan5 ° = L x 0.044 m
Distance between an emitter and a
receiver (operating range L)
Allowable installation distance
D
0.3 to less than 3 m 0.26 m
3 m or more L/2 x tan10 ° = L x 0.089 m
L
D
D
L
D
5
5
Detection zone
Emitter
Receiver
Reflective ceiling
Reflective floor
Emitter
Receiver
Reflective surface
L
D
D
L
D
10
10
Detection zone
Emitter
Receiver
Reflective ceiling
Reflective floor
Emitter
Receiver
Reflective surface

Omron F3SG series Specifications

General

Type	Safety Light Curtain
Protection Rating	IP67
Connection	M12 connector
Detection Method	Infrared Light
Operating Temperature	-10°C to +55°C
Resolution	14mm, 25mm, 40mm
Standards	EN/IEC 61496-1, EN ISO 13849-1
Power Supply Voltage	24V DC ±10%
