Omron F3SG series User Manual

196
Chapter5 Wiring Examples(F3SG-RA Series)
F3SG-R
User’s Manual
Input/Output Circuit and Applications

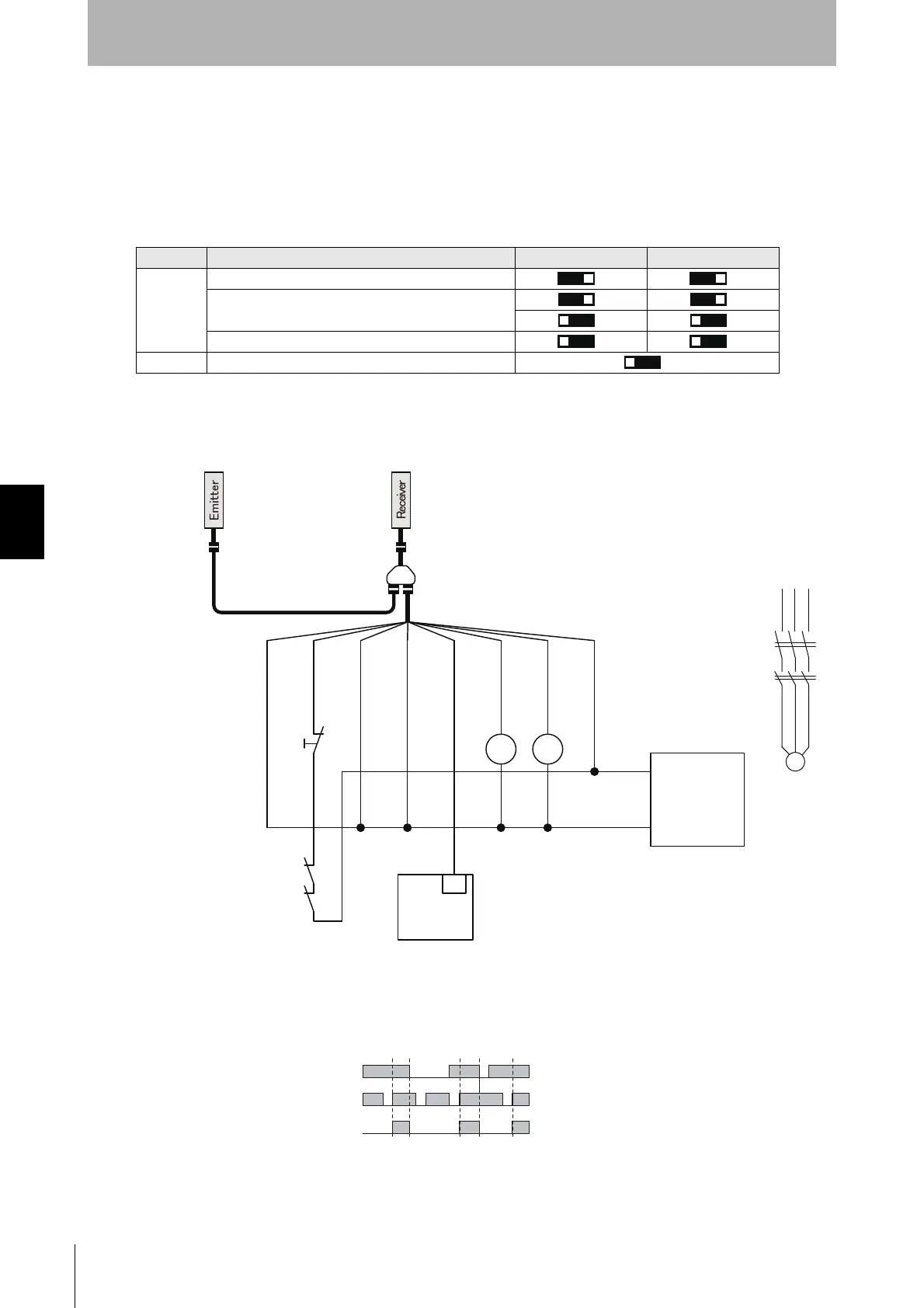

5-2-13. Standalone F3SG-RA with Y-Joint Plug/Socket
Connector using PNP outputs
The following is the example of Muting not used, External Device Monitoring enabled, Manual Reset
mode, PNP output and External Test in 24 V Active.
[DIP Switch settings] *3
: Indicates a switch position.
Configure functions with the DIP Switches before wiring.
[Wiring Example]
Function DIP-SW1 DIP-SW2
Receiver
EDM Enabled
Manual Reset
PNP (factory default setting)
Emitter External Test: 24 V Active (factory default setting)
㻞㻻㻺
㻞㻻㻺
㻟㻻㻺 㻟㻻㻺
㻠㻻㻺 㻠㻻㻺
㻣㻻㻺
㻣㻻㻺
㻠㻻㻺
KM1
KM2
M
0 VDC: Blue
RESET: Yellow *1
MUTE A: Gray MUTE B: Pink AUX: Red
OSSD1: Black OSSD2: White 24 VDC: Brown
+24 VDC
0 VDC
Power supply
IN
PLC *2
KM1 KM2
F39-JG  B-L
F39-GCNY2
F39-JG
 A-D
S1
KM1
KM2
S1: Lockout/Interlock Reset Switch
KM1,KM2: External device feedback
M: 3-phase motor
PLC: Programmable controller
(Used for monitoring only. NOT related to safety system.)
Unblocked
Blocked
Beam state
Reset Switch (S1)
OSSD
*1. Also used as EDM input line.
*2. When connecting to the PLC, the output mode must be
changed with the Configuration Tool.
*3. The functions are configurable with DIP Switch. Refer to
Chapter 3 Setting with DIP Switch for more information on
setting the functions by the DIP Switch.

Omron F3SG series Specifications

General

Type	Safety Light Curtain
Protection Rating	IP67
Connection	M12 connector
Detection Method	Infrared Light
Operating Temperature	-10°C to +55°C
Resolution	14mm, 25mm, 40mm
Standards	EN/IEC 61496-1, EN ISO 13849-1
Power Supply Voltage	24V DC ±10%
