39
F3SG-R
User’s Manual
Chapter2 External Device Monitoring (EDM)
System Operation and Functions
E

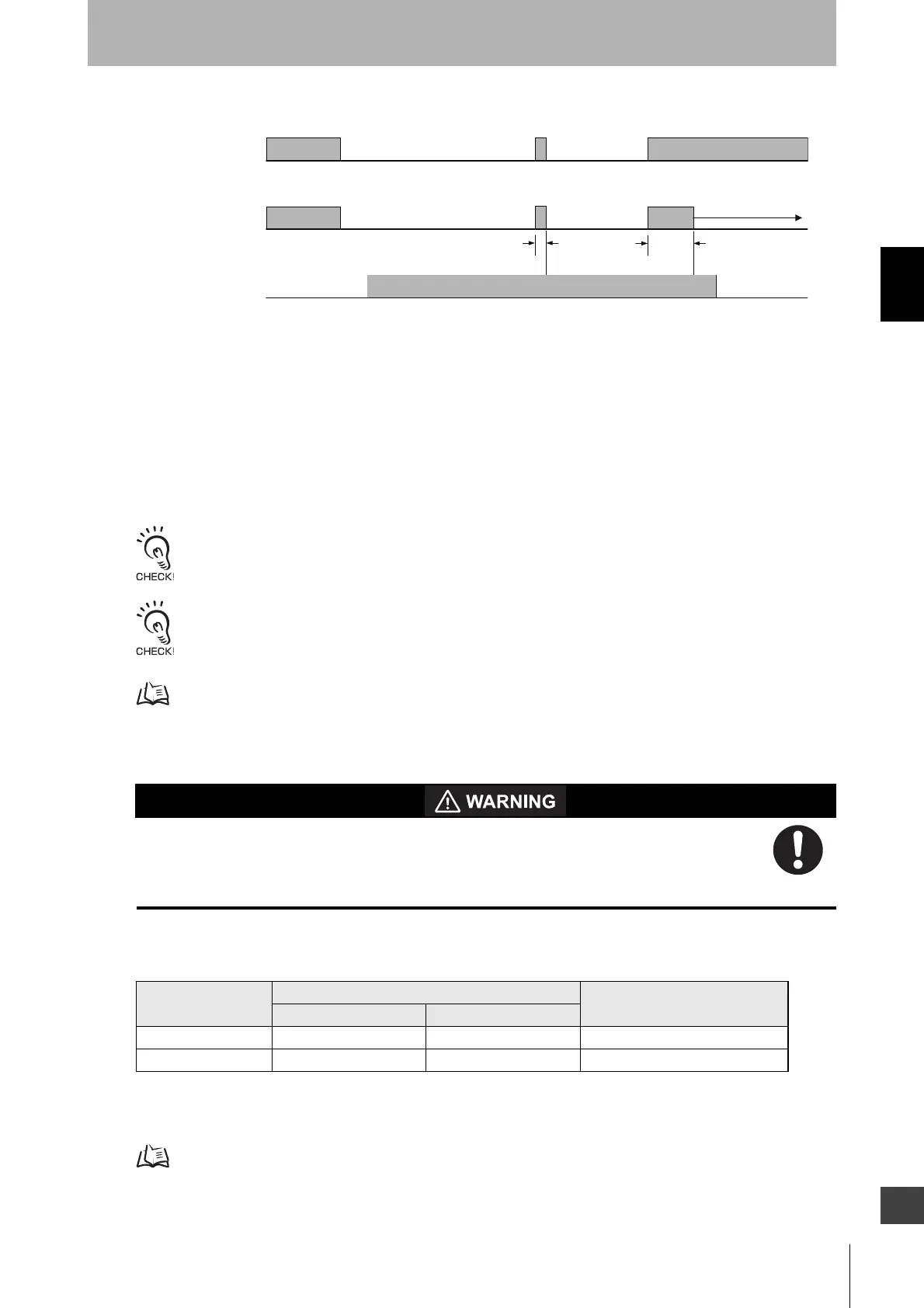

<Timing chart>
2-10-2. Factory Default Setting
The default setting is EDM Disable.
2-10-3. Setting with DIP Switch
The user can select the setting from EDM Enabled or Disabled by the DIP Switch. When it is enabled,
the allowable delay time is set to 0.3 s.
Make sure the Position 8 of the DIP Switch is set to DIP Switch Enabled to activate the setting by the DIP Switch.
After making the setting, make sure to perform the wiring so that the specified voltage is supplied into the Reset input of
the receiver without passing through the N.C. contacts of the external relays, and confirm the F3SG-RA enters the
Lockout state.
Refer to Chapter 3 Setting with DIP Switch for more information on setting this function by the DIP Switch.
2-10-4. Setting with Configuration Tool
Some settings of functions configurable with the Configuration Tool may increase risks.
Make sure the Responsible Person conduct a thorough risk assessment analysis before
managing and changing the settings. Unintended changes to the settings may cause a
person to go undetected, resulting in serious injury.
The user can make changes to the settings by the Configuration Tool.
*Setting parameters of this function are saved according to the states where the Muting function is
enabled and disabled, respectively. After changing the Muting function from Enable to Disable or from
Disable to Enable, also check the settings of this function again.
Refer to
Considerations for enabling and disabling Muting function under 2-1. Combination of Functions
for more information.
Function
Factory Default Setting
Available Parameters
Muting function enabled* Muting function disabled*
EDM Disable Disable Enable/Disable
Allowable delay time 0.3 s 0.3 s 0.1 to 4 s in 0.1-s increments
ON
OFF
ON
OFF
T1
Lockout
T1 max.
T1: Allowable delay time
Unblocked
Blocked
Beam state
OSSD
EDM input
