5-2-5. Standard Muting Mode/Exit-Only Muting Mode with two
Muting Sensors using PNP Outputs
The following is the example of External Device Monitoring disabled, Auto Reset mode, PNP output
and External Test in 24 V Active.
[DIP Switch settings] *5
: Indicates a switch position.
Configure functions with the DIP Switches before wiring.

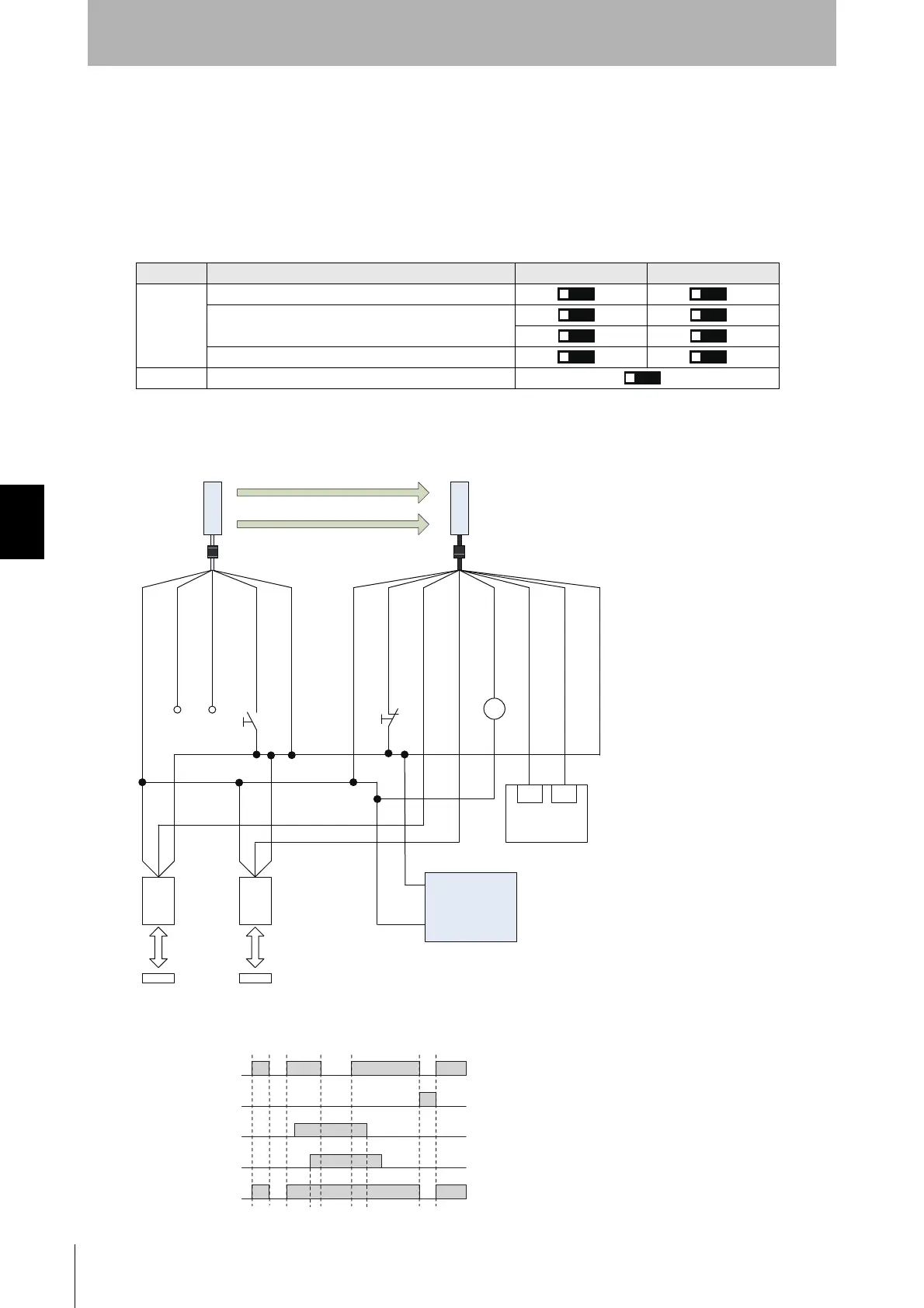

[Wiring Example]
Function DIP-SW1 DIP-SW2
Receiver
EDM Disabled (factory default setting)
Auto Reset (factory default setting)
PNP (factory default setting)
Emitter External Test: 24 V Active (factory default setting)
㻞㻻㻺
㻟㻻㻺 㻟㻻㻺
㻠㻻㻺 㻠㻻㻺
㻣㻻㻺
OSSD1 : Black
OSSD2 : White
24 VDC : Brown
Not used : Yellow
TEST : Black
Not used : White
24 VDC : Brown
0 VDC : Blue
Receiver
Emitter
0 VDC : Blue
AUX : Red
MUTE B : Pink
MUTE A : Gray
RESET : Yellow *1
S1: Test Switch (Connect the line to 0 V if this switch is not required)
S2: Lockout/Interlock Reset Switch,Override Switch or Override Cancel Switch
ML: Muting lamp
A1, B1: Muting sensor
S1
S2
*2
Muting
Sensor
(PNP
output)
Reflector
F39-JGA-L F39-JGA-D
A1
B1
Power Supply
+24 VDC
0 VDC
Safety
Controller *3 *4
IN1
IN2
ML
Unblocked
Blocked
MUTE A
MUTE B
OSSD
Test Switch (S1)
Beam state
*1. Also used as Override input line.
*2. Make sure to connect an override cancel switch to the
Reset line when using the override function. Otherwise
the override state may not be released by the override
cancel switch, resulting in serious injury.
*3. Refer to 5-4. Connectable Safety Control Units for
more information.
*4. The safety controller and the F3SG-R must share the
power supply or be connected to the common terminal
of the power supply.
*5. The functions are configurable with DIP Switch. Refer
to Chapter 3 Setting with DIP Switch for more
information on setting the functions by the DIP Switch.
