Omron F3SG series User Manual

191
F3SG-R
User’s Manual
Chapter5 Wiring Examples(F3SG-RA Series)
Input/Output Circuit and Applications
E

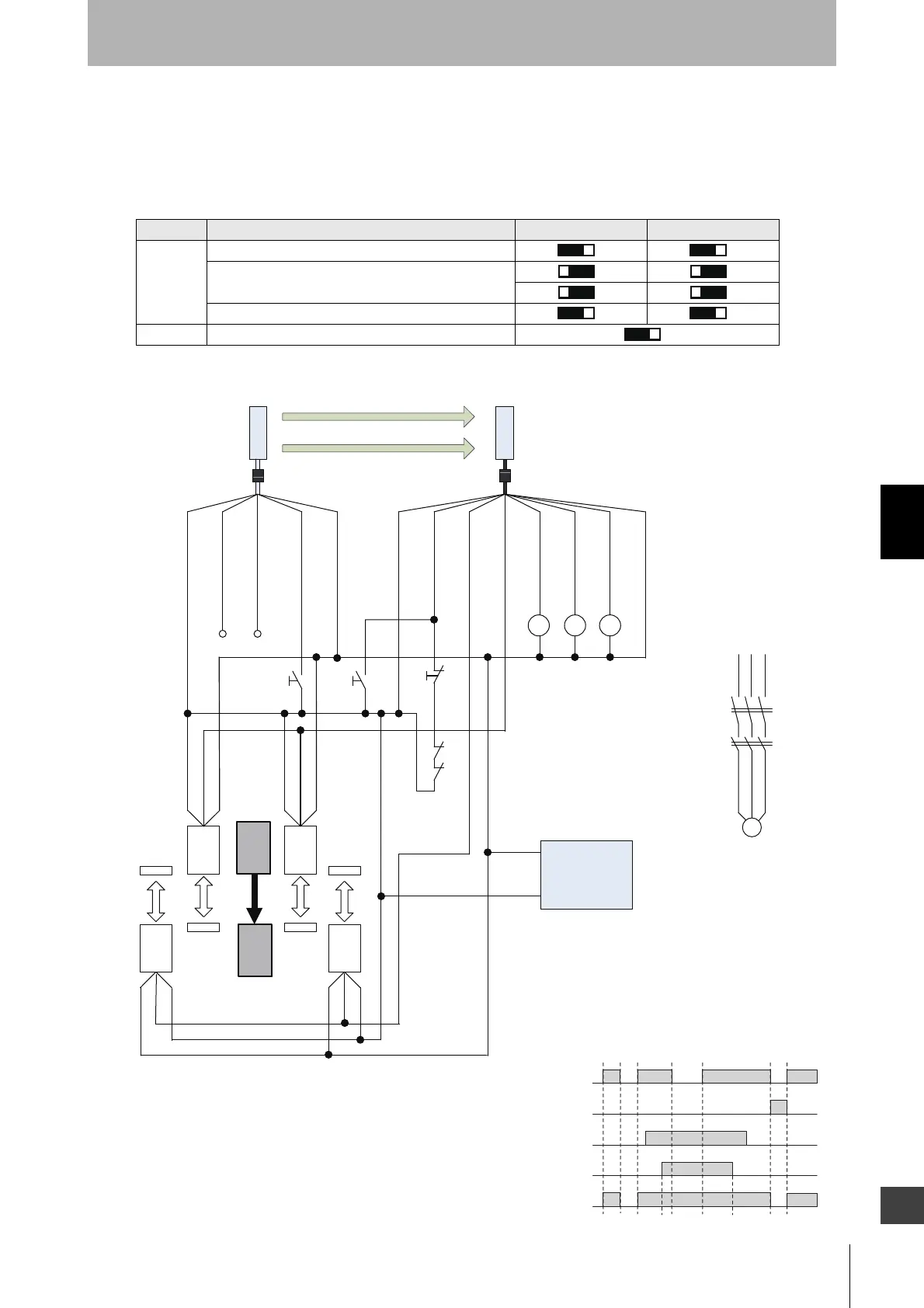

5-2-8. Standard Muting Mode with four Muting Sensors using
NPN Outputs
The following is the example of External Device Monitoring enabled, Auto Reset mode, NPN output
and External Test in 0 V Active.
[DIP Switch settings] *3
: Indicates a switch position.
Configure functions with the DIP Switches before wiring.
[Wiring Example]
Function DIP-SW1 DIP-SW2
Receiver
EDM Enabled
Auto Reset (factory default setting)
NPN
Emitter External Test: 0 V Active
㻞㻻㻺
㻞㻻㻺
㻟㻻㻺 㻟㻻㻺
㻠㻻㻺 㻠㻻㻺
㻣㻻㻺
㻣㻻㻺
㻠㻻㻺
OSSD1 : Black OSSD2 : White 24 VDC : Brown Not used : Yellow TEST : Black Not used : White 24 VDC : Brown 0 VDC : Blue
Receiver
Emitter
0 VDC : Blue AUX : Red MUTE B : Pink MUTE A : Gray RESET : Yellow *1
S1
S3
S2
*2
B1
B2
S1: Test Switch (Connect the line to 24 V if this switch is
not required)
S2: Override Cancel Switch
S3: Lockout/Interlock Reset Switch or Override Switch
KM1, KM2: Safety relay with forcibly guided contacts (G7SA)
or magnetic contactor
M: 3-phase motor
ML: Muting lamp
A1, A2, B1, B2: Muting sensor
F3SG
Muting
Sensor
(NPN
output)
Reflector
F3SG
A1 A2
Power Supply
+24 VDC
0 VDC
ML KM1 KM2
KM1
KM2
M
KM1
KM2
Unblocked
Blocked
MUTE A
MUTE B
OSSD
Test Switch (S1)
Beam state
F39-JGA-L F39-JGA-D
*1. Also used as Override input line.
*2. Make sure to connect an override cancel switch to the Reset line when
using the override function. Otherwise the override state maynot be
released by the override cancel switch, resulting in serious injury.
*3. The functions are configurable with DIP Switch. Refer to Chapter 3
Setting with DIP Switch for more information on setting the functions by
the DIP Switch.

Omron F3SG series Specifications

General

Type	Safety Light Curtain
Protection Rating	IP67
Connection	M12 connector
Detection Method	Infrared Light
Operating Temperature	-10°C to +55°C
Resolution	14mm, 25mm, 40mm
Standards	EN/IEC 61496-1, EN ISO 13849-1
Power Supply Voltage	24V DC ±10%
