Chapter5 Wiring Examples(F3SG-RA Series)
F3SG-R
User’s Manual
Input/Output Circuit and Applications
5-2-15. F3SG-RA with Y-Joint Plug/Socket Connector in Standard
Muting Mode/Exit-Only Muting Mode using PNP outputs
The following is the example of External Device Monitoring disabled, Auto Reset mode, PNP output
and External Test in 24 V Active.
[DIP Switch settings] *5
: Indicates a switch position.
Configure functions with the DIP Switches before wiring.

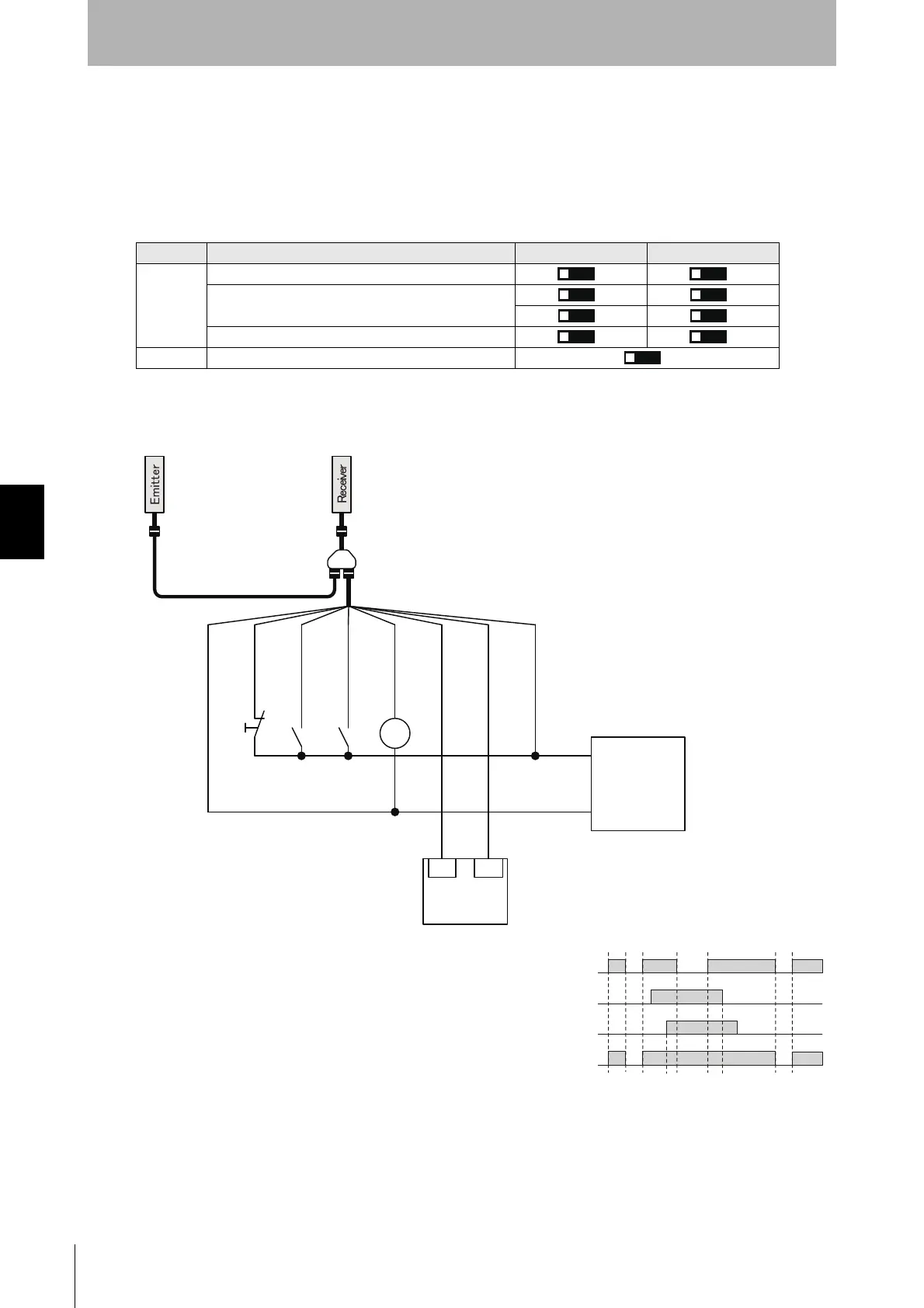

[Wiring Example]
Function DIP-SW1 DIP-SW2
Receiver
EDM Disabled (factory default setting)
Auto Reset (factory default setting)
PNP (factory default setting)
Emitter External Test: 24 V Active (factory default setting)
㻞㻻㻺
㻟㻻㻺 㻟㻻㻺
㻠㻻㻺 㻠㻻㻺
㻣㻻㻺
0 VDC: Blue
RESET: Yellow*1
MUTE A: Gray
MUTE B: Pink
AUX: Red
OSSD1: Black
OSSD2: White
24 VDC: Brown
+24V DC
0V
IN1 IN2
Safety
Controller *3 *4
F39-JG
B-L
F39-JG
A-D
F39-GCNY2
ML
S1
*2
Power supply
S1: Lockout/Interlock Reset Switch,
Override Switch or Override Cancel Switch
ML: Muting Lamp
Unblocked
Blocked
MUTE A
MUTE B
OSSD
Beam state
*1. Also used as EDM input line.
*2. Make sure to connect an override cancel switch to
the Reset line when using the override function.
Otherwise the override state may not be released by
the override cancel switch, resulting in serious injury.
*3. Refer to 5-4. Connectable Safety Control Units for
more information.
*4. The safety controller and the F3SG-R must share
the power supply or be connected to the common
terminal of the power supply.
*5. The functions are configurable with DIP Switch.
Refer to Chapter 3 Setting with DIP Switch for more
information on setting the functions by the DIP
Switch.
