Omron F3SG series User Manual

131
F3SG-R
User’s Manual
Chapter4 Cascade Connection
Wiring/Installation
E
4-2-2. Connection Procedure

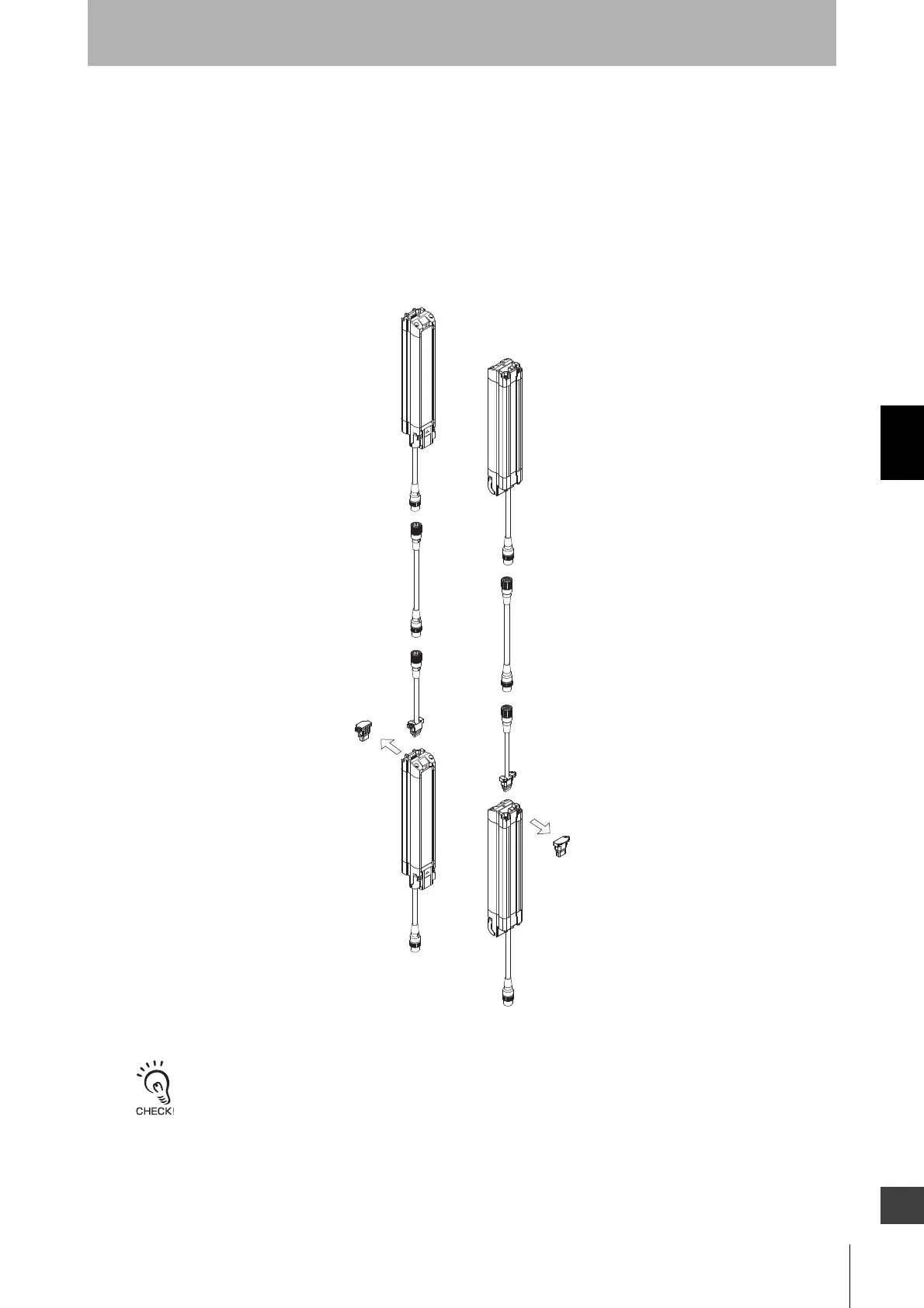

1. Remove the caps from the primary sensor. Loosen the screw (M3 cross-shaped) to remove the cap.
2. Connect the the the primary sensor and the secondary sensor with the F39-JGR2W Cascading Cable
(sold separately).
3. If the length of the Cascading Cable is insufficient, connect the F39-JGB- Double-Ended Cable
(sold separately) between the Cascading Cable and the power cable of the secondary sensor, as
required. (Cable length between sensors: 10 m max.)
- When attaching a cable or cap, securely fasten the screws (M2.5, recommended torque: 0.35 N•m).
Failure to do so may cause the cable/cap to come loose, leading to deterioration of the protective functions.
- Attaching/detaching of the cap and the Cascading Cable may cause misalignment of rubber grommet in the connector
assembly. Press the grommet to the bottom of the connector and attach the connector to the sensor again.
1.1.
1.1.
2.2.
2.2.
3.3.
3.3.
End Cap
End Cap
Cascading Cable F39-JGR2W-D
Double-Ended Cable F39-JGB-D
Cascading Cable F39-JGR2W-L
Double-Ended Cable F39-JGB-L
Receiver power cable
Emitter power cable
Emitter power cable
Receiver power cable
<Secondary sensor>
<Primary sensor>

Omron F3SG series Specifications

General

Type	Safety Light Curtain
Protection Rating	IP67
Connection	M12 connector
Detection Method	Infrared Light
Operating Temperature	-10°C to +55°C
Resolution	14mm, 25mm, 40mm
Standards	EN/IEC 61496-1, EN ISO 13849-1
Power Supply Voltage	24V DC ±10%
