155
F3SG-R
User’s Manual
Chapter4 Mounting
Wiring/Installation
E

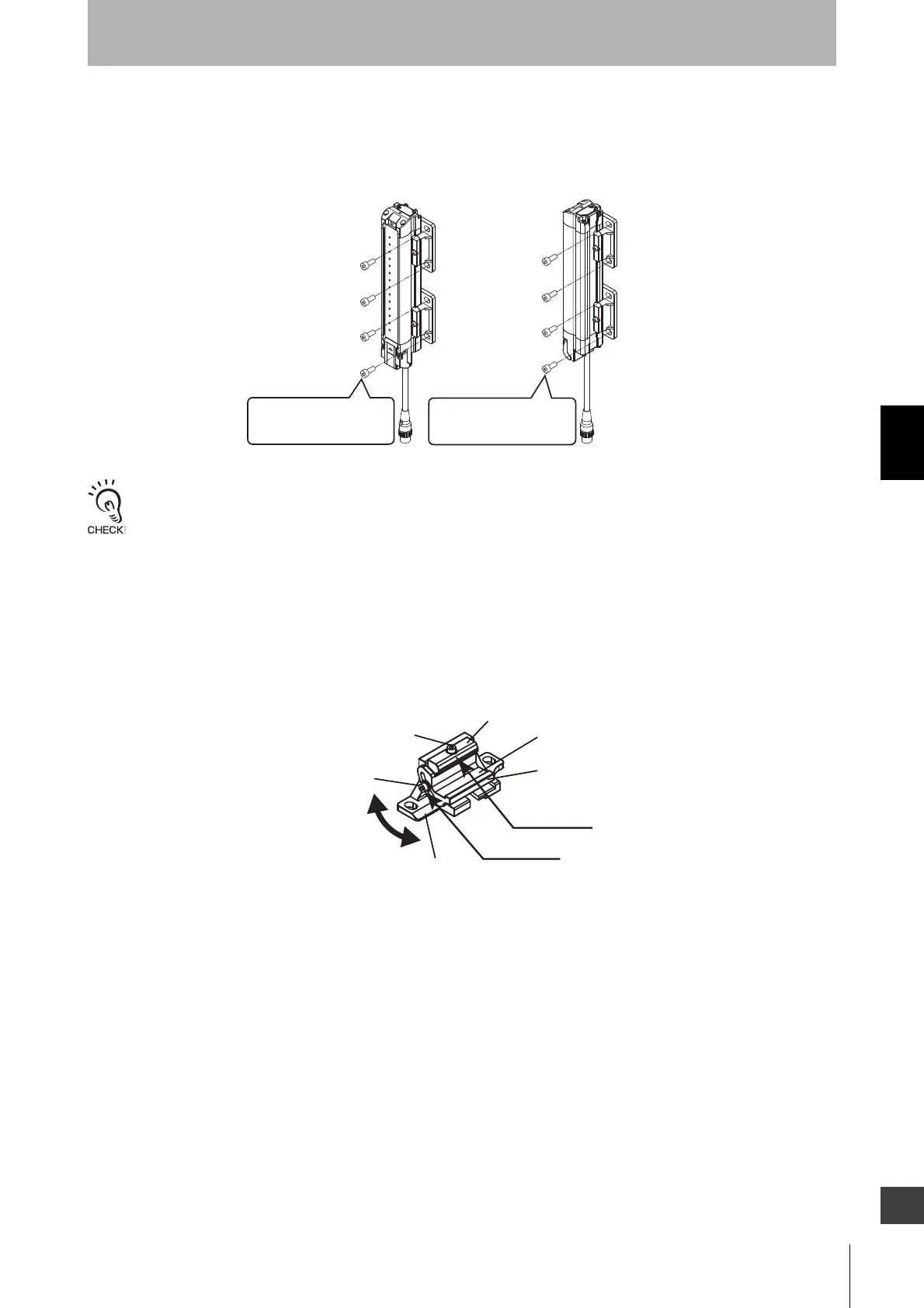

4. Securely tighten the screws to fix the Standard Fixed Bracket to the mounting position of the wall
surface. (Fig. 4)
Screws to mount the brackets to the wall are not included.
4-4-3-2. Mounting with Standard Adjustable Brackets (F39-LGA)
1. Loosen the Screw (1) (hexagon socket head cap screw (M3 x 15)) and change the angle of the
Adjustable Bracket (1) according to its mounting direction. (Fig. 1)
2. Loosen the Screw (2) (hexagon socket head cap screw (M3 x 15)). (Fig. 1)
Fig. 4
Fix the Standard
Fixed Bracket to the
wall surface with screws
Fix the Standard
Fixed Bracket to the
wall surface with screws
<Backside mounting> <Side mounting>
Screw (2)
(hexagon socket head
cap screw (M3 x 15))
Adjustable Bracket (2)
Adjustable Bracket (1)
Adjustable Bracket (3)
hook
1. Loosen this
2. Loosen this
Screw (1)
(hexagon socket head
cap screw (M3 x 15))
Fig. 1

Omron F3SG series Specifications

General

Type	Safety Light Curtain
Protection Rating	IP67
Connection	M12 connector
Detection Method	Infrared Light
Operating Temperature	-10°C to +55°C
Resolution	14mm, 25mm, 40mm
Standards	EN/IEC 61496-1, EN ISO 13849-1
Power Supply Voltage	24V DC ±10%
