Chapter4 Mounting
F3SG-R
User’s Manual
Wiring/Installation

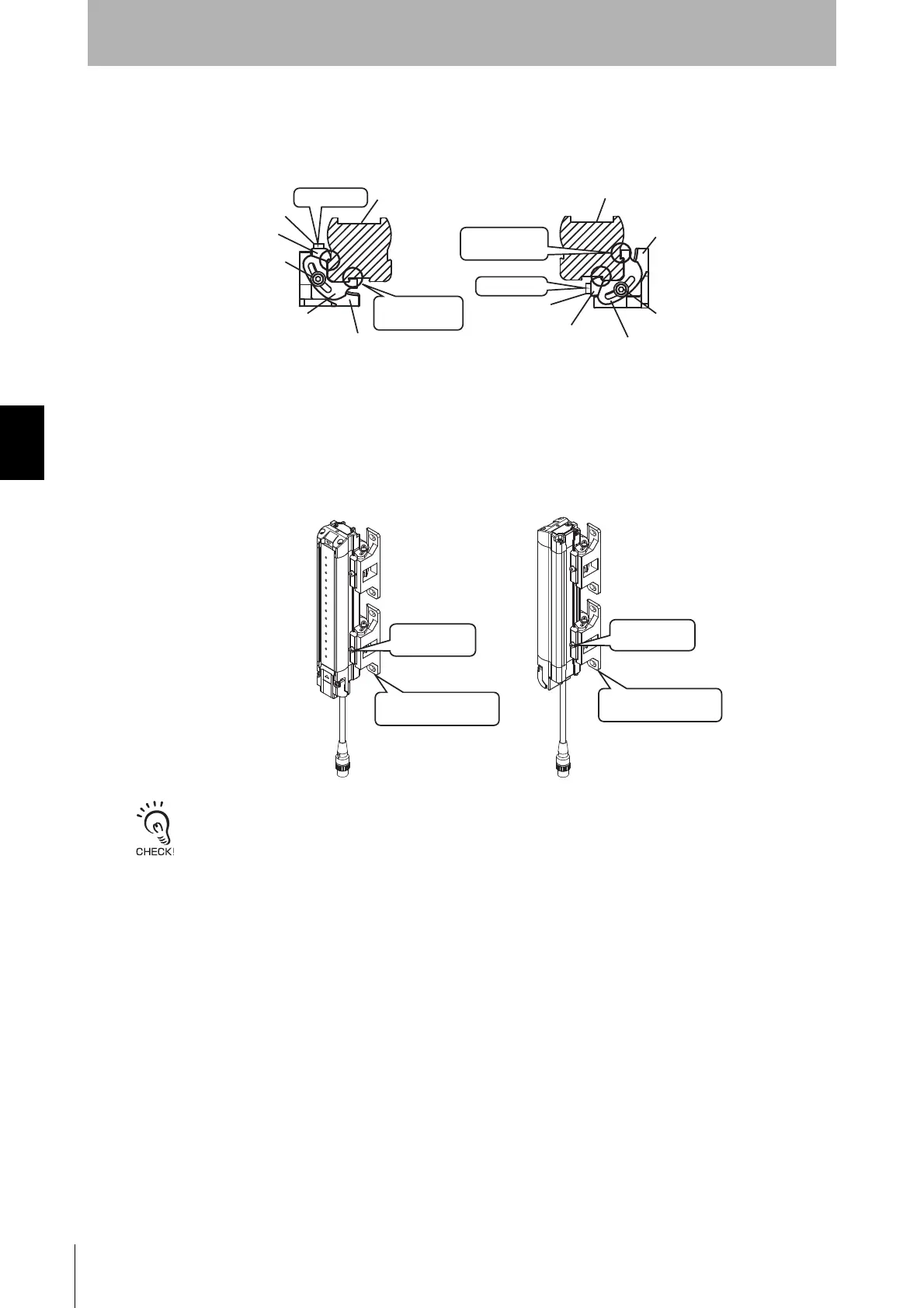

3. Slide the hooks of the Adjustable Bracket (1) and the Adjustable Bracket (2) in the grooves of the
F3SG-R housing. Lightly tighten the Screw (2). (Fig. 2)
4. Adjust the Standard Adjustable Bracket to the mounting position of the wall surface. Securely tighten
the Screw (2) to fix the Standard Adjustable Bracket to the housing of the F3SG-R. The recommended
torque to tighten the Screw (2) is 2.0 N•m. (Fig. 3)
Tightening screws with a torque that considerably exceeds the recommended torque may cause failure.
<Backside mounting> <Side mounting>
Optical surface
of F3SG-R
Optical surface
of F3SG-R
Loosen this
Loosen this
Adjustable
Bracket(1)
Adjustable
Bracket(1)
Adjustable
Bracket(3)
Adjustable
Bracket(3)
Adjustable
Bracket(2)
Adjustable
Bracket(2)
Slide the hook
in the groove
Fig. 2
Slide the hook
in the groove
Screw(1)
Screw(2)
Screw(1)
Screw(2)
Securely
tighten this
Adjust the bracket
to mounting position
Securely
tighten this
Adjust the bracket
to mounting position
<Backside mounting> <Side mounting>
Fig. 3

Omron F3SG series Specifications

General

Type	Safety Light Curtain
Protection Rating	IP67
Connection	M12 connector
Detection Method	Infrared Light
Operating Temperature	-10°C to +55°C
Resolution	14mm, 25mm, 40mm
Standards	EN/IEC 61496-1, EN ISO 13849-1
Power Supply Voltage	24V DC ±10%
