6
Chapter1 List of Features
F3SG-R
User’s Manual
Overview and Specifications
1-3. List of Features
1-3-1. Model Overview
The F3SG-R safety light curtain family has two types, F3SG-RA and F3SG-RE.
F3SG-RA Series
The model name is represented as F3SG-RA-.
The F3SG-RA series is an advance model, allowing you to configure the safety light curtain to fit your
application.
Refer to the List of Features below for available features.
F3SG-RE Series
The model name is represented as F3SG-RE.
The F3SG-RE series is a limited-function model, easy to use with simple wiring (emitter: 4-wire,
receiver: 4-wire).
Refer to the List of Features below for available features.
1-3-2. Versions
The F3SG-R has Version 1.0 and Version 1.1. Avaialble features vary depending on the versions.
When Version 1.0 and Version 1.1 of F3SG-RA are in cascade connection, all cascaded segments
operate as Version 1.0.
Refer to
Functions by versions under 1-3-3. List of Features for more information.
Please note that it is not possible to update the version of the F3SG-RA with the Configuration tool.

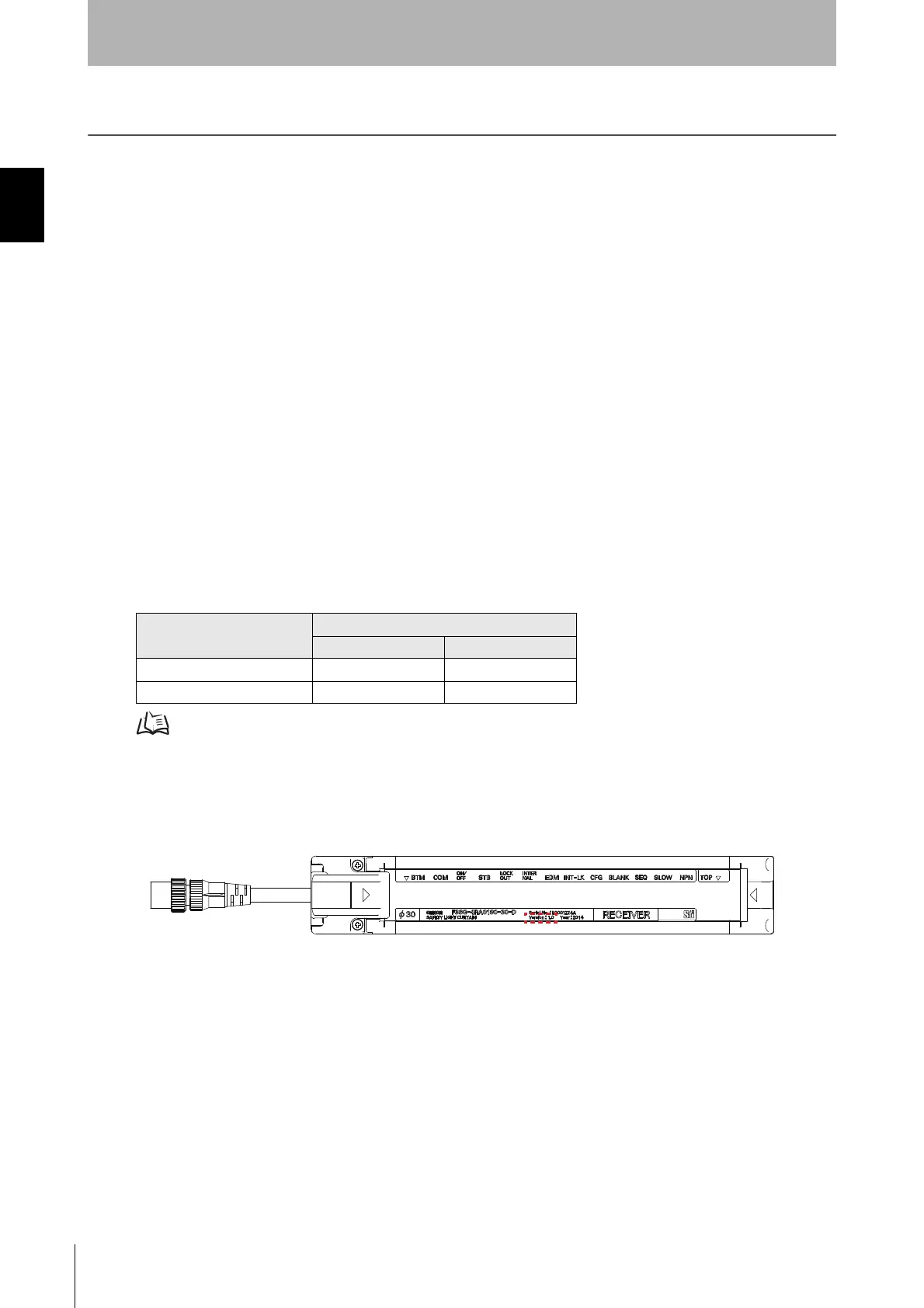

You can find a version of F3SG-R on the nameplate of the receiver as shown below.
Configuration Tool Version
F3SG-R Version
1.0 1.1 and up
1.01 and down Supported -
1.10 and up Supported Supported
