187
F3SG-R
User’s Manual
Chapter5 Wiring Examples(F3SG-RA Series)
Input/Output Circuit and Applications
E

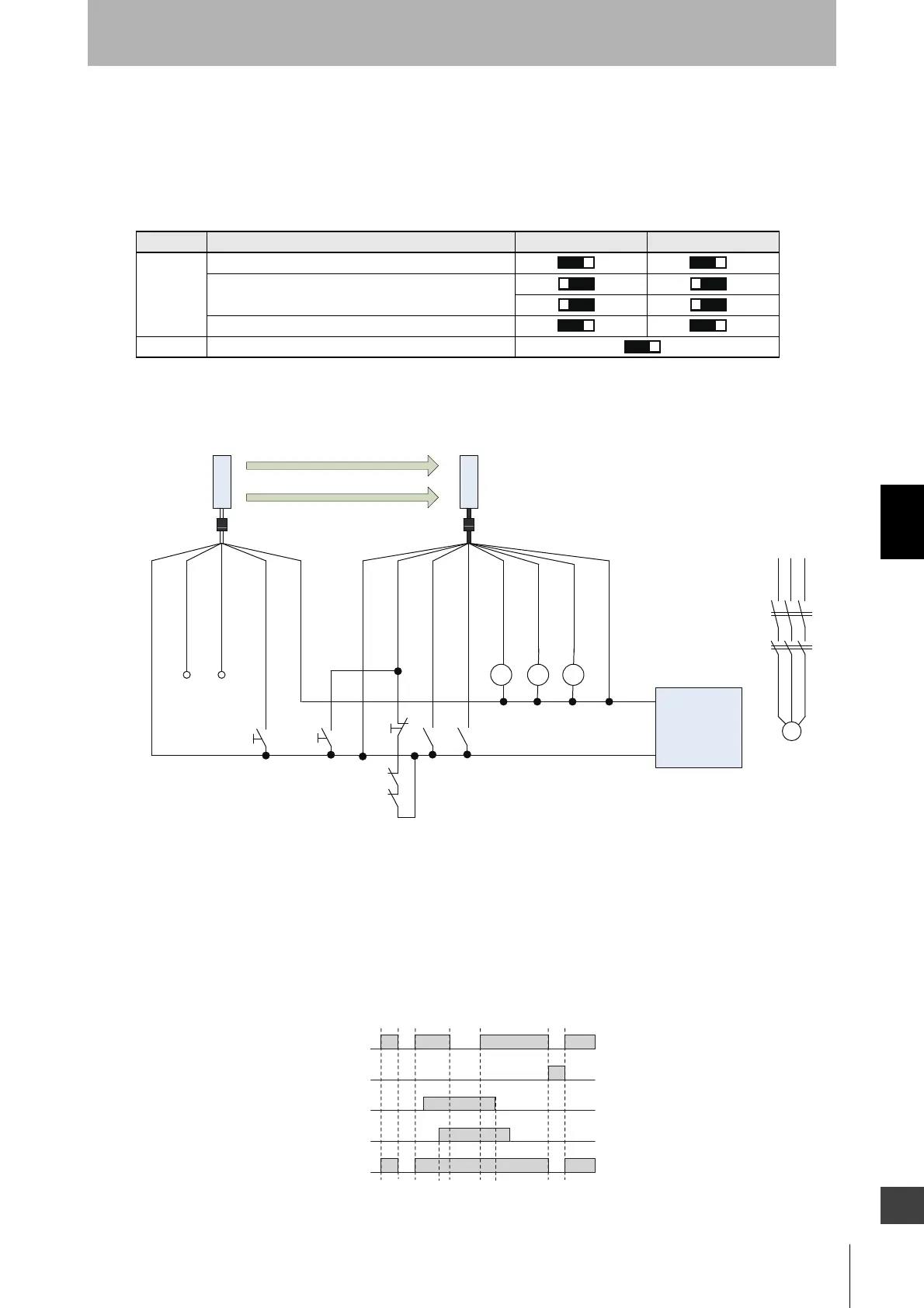

5-2-4. Standard Muting Mode/Exit-Only Muting Mode using NPN Outputs
The following is the example of External Device Monitoring enabled, Auto Reset mode, NPN output
and External Test in 0 V Active.
[DIP Switch settings] *3
: Indicates a switch position.
Configure functions with the DIP Switches before wiring.
[Wiring Example]
Function DIP-SW1 DIP-SW2
Receiver
EDM Enabled
Auto Reset (factory default setting)
NPN
Emitter External Test: 0 V Active
㻞㻻㻺
㻣㻻㻺
OSSD1 : Black
OSSD2 : White
24 VDC : Brown
Not used : Yellow
TEST : Black
Not used : White
24 VDC : Brown
0 VDC : Blue
Receiver
Emitter
0 VDC : Blue
AUX : Red
MUTE B : Pink
MUTE A : Gray
RESET : Yellow *1
S1: Test Switch (Connect the line to 24 V if this switch is not required)
S2: Override Cancel Switch
S3: Lockout/Interlock Reset Switch or Override Switch
S4, S5: Muting sensor
KM1, KM2: Safety relay with forcibly guided
contacts (G7SA) or magnetic contactor
M: 3-phase motor
ML: Muting lamp
S1
S3
F39-JGA-L F39-JGA-D
Power Supply
+24 VDC
0 VDC
S5
S2
*2
S4
KM1
KM2ML
KM1
KM2
KM1
KM2
M
Unblocked
Blocked
MUTE A
MUTE B
OSSD
Test Switch (S1)
Beam state
*1. Also used as Override input line.
*2. Make sure to connect an override cancel switch to the Reset line
when using the override function. Otherwise the override state may
not be released by the override cancel switch, resulting in serious
injury.
*3. The functions are configurable with DIP Switch. Refer to Chapter 3
Setting with DIP Switch for more information on setting the
functions by the DIP Switch.
To Next Page
