F3SG-R
User’s Manual
Chapter5 Wiring Examples(F3SG-RA Series)
Input/Output Circuit and Applications
E
5-2-6. Standard Muting Mode/Exit-Only Muting Mode with two
Muting Sensors using NPN Outputs
The following is the example of External Device Monitoring enabled, Auto Reset mode, NPN output
and External Test in 0 V Active.
[DIP Switch settings] *3
: Indicates a switch position.
Configure functions with the DIP Switches before wiring.

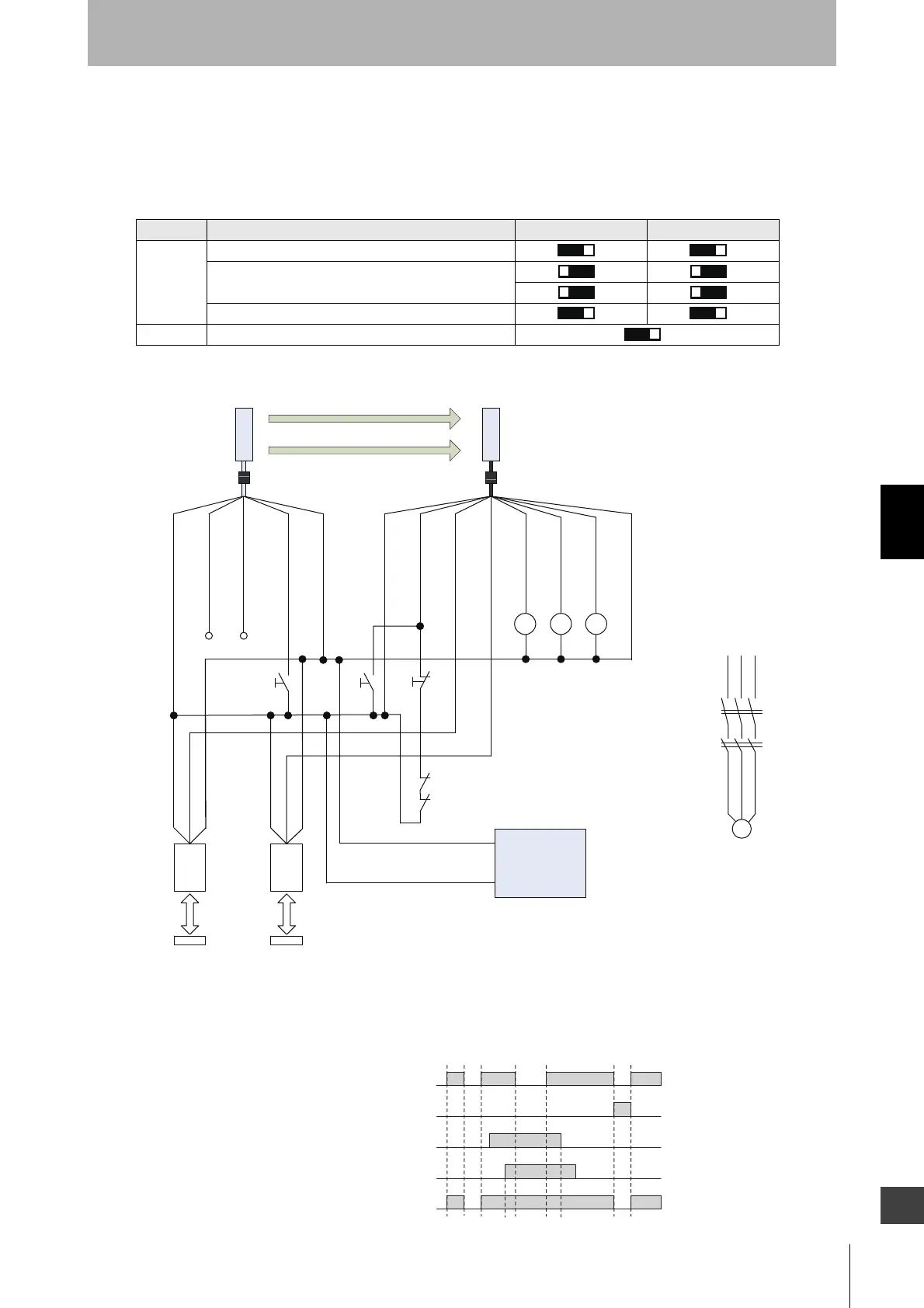

[Wiring Example]
Function DIP-SW1 DIP-SW2
Receiver
EDM Enabled
Auto Reset (factory default setting)
NPN
Emitter External Test: 0 V Active
㻞㻻㻺
㻞㻻㻺
㻟㻻㻺 㻟㻻㻺
㻠㻻㻺 㻠㻻㻺
㻣㻻㻺
㻣㻻㻺
㻠㻻㻺
Unblocked
Blocked
MUTE A
Beam state
MUTE B
OSSD
Test Switch (S1)
OSSD1 : Black OSSD2 : White 24 VDC : Brown Not used : Yellow TEST : Black Not used : White 24 VDC : Brown 0 VDC : Blue
Receiver
Emitter
0 VDC : Blue AUX : Red MUTE B : Pink MUTE A : Gray RESET : Yellow *1
S1: Test Switch (Connect the line to 24 V if this switch is
not required)
S2: Override Cancel Switch
S3: Lockout/Interlock Reset Switch or Override Switch
KM1, KM2: Safety relay with forcibly guided contacts (G7SA)
or magnetic contactor
M: 3-phase motor
ML: Muting lamp
A1, B1: Muting sensor
S1
S3
Muting
Sensor
(NPN
output)
Reflector
S2
*2
A1
B1
Power Supply
+24 VDC
0 VDC
ML KM1 KM2
KM1
KM2
KM1
KM2
M
F39-JGA-L F39-JGA-D
*1. Also used as Override input line.
*2. Make sure to connect an override cancel switch to the Reset line
when using the override function. Otherwise the override state
may not be released by the override cancel switch, resulting in
serious injury.
*3. The functions are configurable with DIP Switch. Refer to
Chapter 3 Setting with DIP Switch for more information on
setting the functions by the DIP Switch.
