Omron F3SG series User Manual

42
Chapter2 Auxiliary Output
F3SG-R
User’s Manual
System Operation and Functions
2-11-2. Factory Default Setting
The factory default setting is Muting/Override Information. When F3SG-RA is under a muting or
override state, the F3SG-RA switches ON and OFF at 0.5 s (1 Hz).
2-11-3. Setting with DIP Switch
When the Interlock is set to Pre-Reset Enabled by the DIP Switch, the auxiliary output is configured as
a inverted signal of the safety output. Other settings are configured as the same as the factory default
setting.

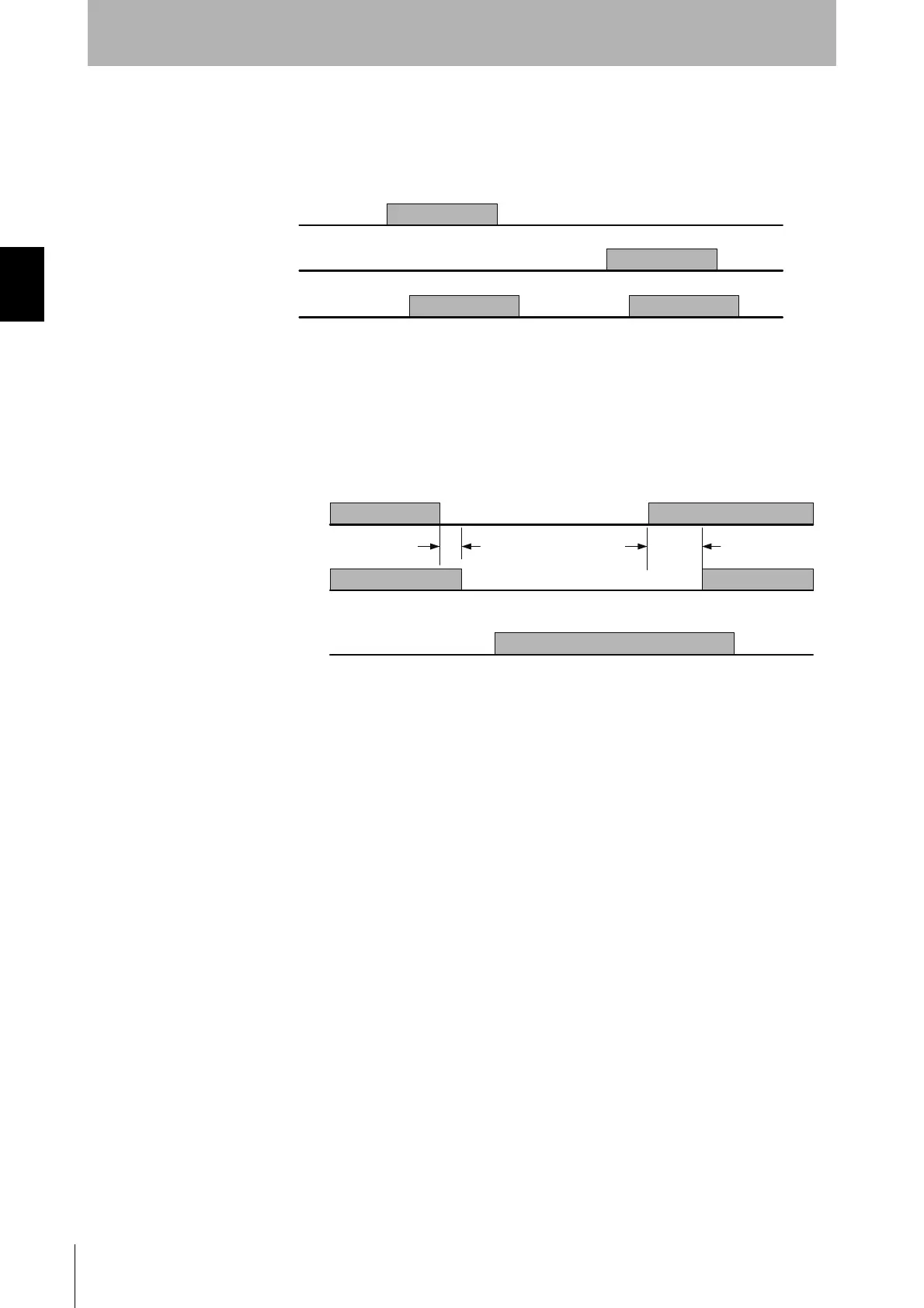

Muting state
ON
OFF
Override state
ON
OFF
Auxiliary output
Switching at every 0.5 s
OFF
Toff Ton
Beam state
Unblocked
Blocked
OSSD
ON
OFF
Auxiliary output
Ton: Response time OFF to ON
Toff: Response time ON to OFF
ON
OFF

Omron F3SG series Specifications

General

Type	Safety Light Curtain
Protection Rating	IP67
Connection	M12 connector
Detection Method	Infrared Light
Operating Temperature	-10°C to +55°C
Resolution	14mm, 25mm, 40mm
Standards	EN/IEC 61496-1, EN ISO 13849-1
Power Supply Voltage	24V DC ±10%
