Omron F3SG series User Manual

4
Chapter1 System Components
F3SG-R
User’s Manual
Overview and Specifications

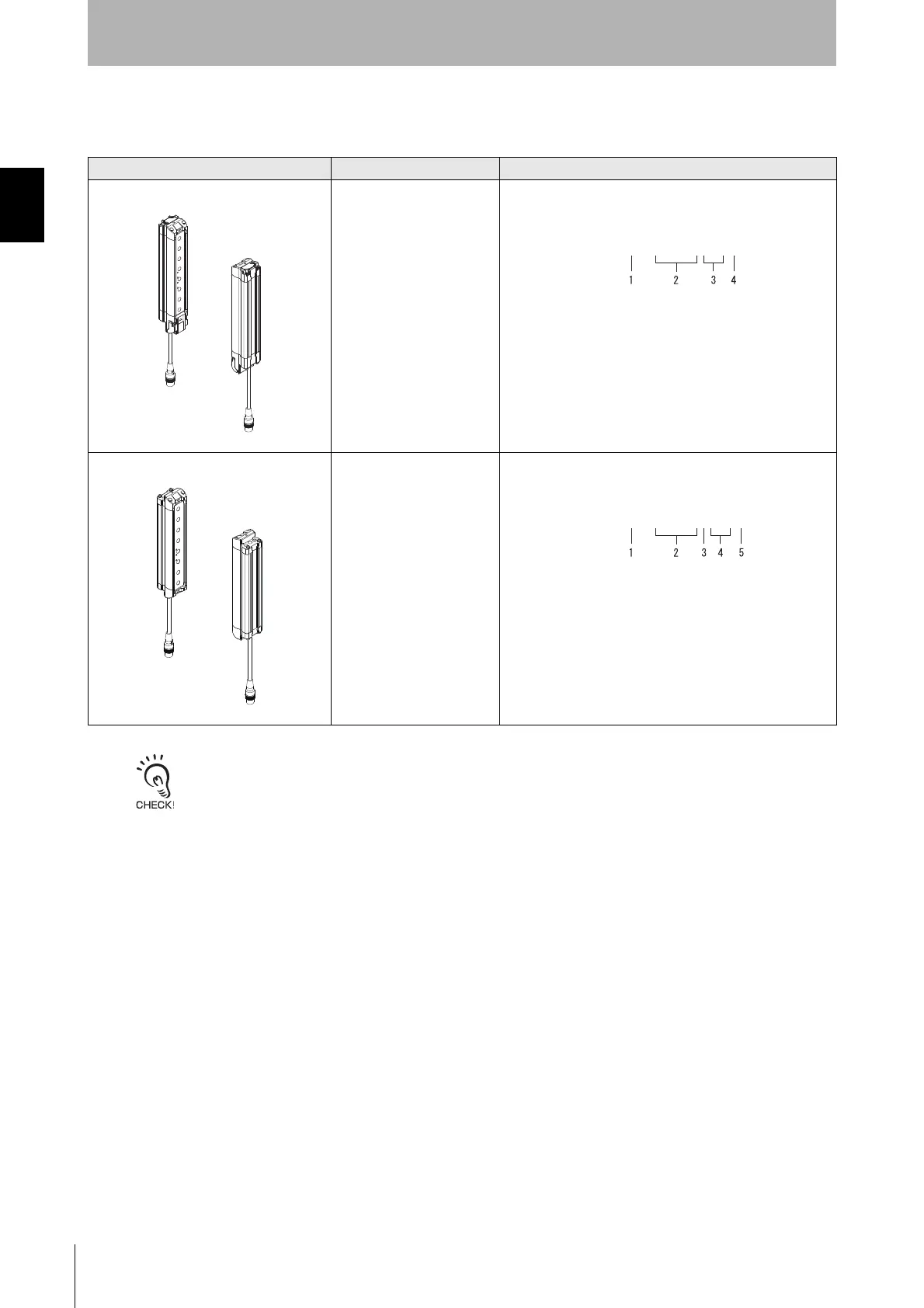

1-2-1. Basic Components
To distinguish between the emitter and receiver, find the labels attached to the front of the F3SG-R. The label on the
emitter reads "EMITTER" and the label on the receiver reads "RECEIVER".
Component Model name Description
Emitter, receiver F3SG-RA-- Select a model name based on the required protective
height and ESPE type.
The model name can be understood as follows:
1: ESPE type (4: Type 4, 2: Type 2)
2: Protective height (mm)
3: Object resolution (mm)
4: L: Emitter, D: Receiver, blank: Emitter and receiver.
Emitter, receiver F3SG-RE- Select a model name based on the required protective
height and ESPE type.
The model name can be understood as follows:
1: ESPE type (4: Type 4, 2: Type 2)
2: Protective height (mm)
3: Output type (P: PNP output, N: NPN output*)
4: Object resolution (mm)
5: L: Emitter, D: Receiver, blank: Emitter and receiver.
* For emitter, a hyphen "-" is indicated instead of "P" or "N".
F3SG-RA--
F3SG-RE-

Omron F3SG series Specifications

General

Type	Safety Light Curtain
Protection Rating	IP67
Connection	M12 connector
Detection Method	Infrared Light
Operating Temperature	-10°C to +55°C
Resolution	14mm, 25mm, 40mm
Standards	EN/IEC 61496-1, EN ISO 13849-1
Power Supply Voltage	24V DC ±10%
