Chapter5 Wiring Examples(F3SG-RA Series)
F3SG-R
User’s Manual
Input/Output Circuit and Applications
5-2-7. Standard Muting Mode with four Muting Sensors using
PNP Outputs
The following is the example of External Device Monitoring disabled, Auto Reset mode, PNP output
and External Test in 24 V Active.
[DIP Switch settings] *5
: Indicates a switch position.
Configure functions with the DIP Switches before wiring.

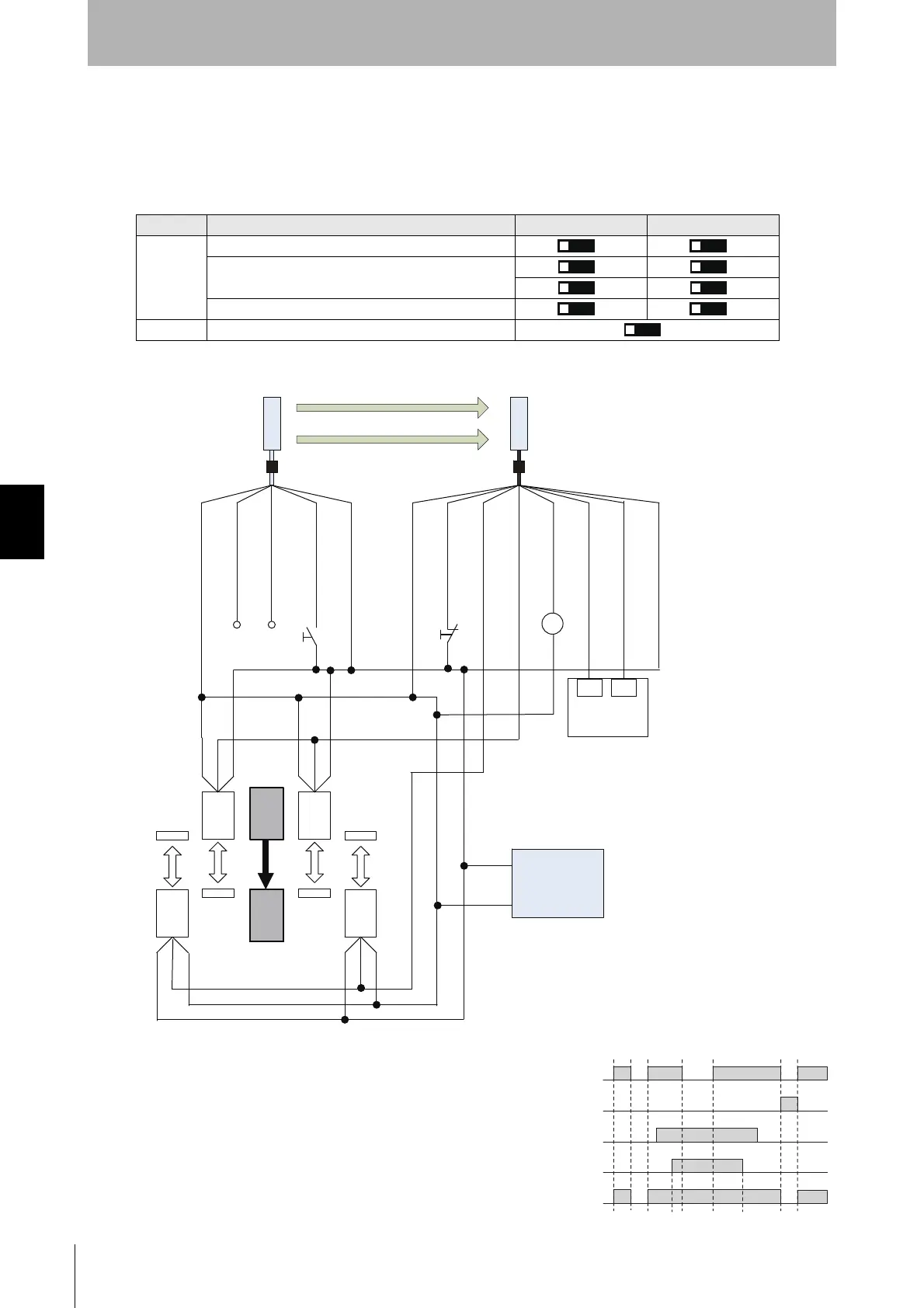

[Wiring Example]
Function DIP-SW1 DIP-SW2
Receiver
EDM Disabled (factory default setting)
Auto Reset (factory default setting)
PNP (factory default setting)
Emitter External Test: 24 V Active (factory default setting)
㻞㻻㻺
㻟㻻㻺 㻟㻻㻺
㻠㻻㻺 㻠㻻㻺
㻣㻻㻺
OSSD1 : Black
OSSD2 : White
24 VDC : Brown
Not used : Yellow
TEST : Black
Not used : White
24 VDC : Brown
0 VDC : Blue
Receiver
Emitter
0 VDC : Blue
AUX : Red
MUTE B : Pink
MUTE A : Gray
RESET : Yellow *1
S1: Test Switch (Connect the line to 0 V if this
switch is not required)
S2: Lockout/Interlock Reset Switch,
Override Switch or Override Cancel Switch
ML: Muting lamp
A1, A2, B1, B2: Muting sensor
S1
S2
*2
Muting
Sensor
(PNP
output)
Reflector
F3SGF3SG
A1 A2
B1
B2
Power Supply
+24 VDC
0 VDC
Safety
Controller *3 *4
IN1 IN2
ML
Unblocked
Blocked
MUTE A
Beam state
MUTE B
OSSD
Test Switch (S1)
F39-JGA-L F39-JGA-D
*1. Also used as Override input line.
*2. Make sure to connect an override cancel switch to the Reset line
when using the override function. Otherwise the override state may
not be released by the override cancel switch, resulting in serious
injury.
*3.Refer to 5-4. Connectable Safety Control Units for more information.
*4.The safety controller and the F3SG-R must share the power supply
or be connected to the common terminal of the power supply.
*5. The functions are configurable with DIP Switch. Refer to Chapter 3
Setting with DIP Switch for more information on setting the functions
by the DIP Switch.
