184
Chapter5 Wiring Examples(F3SG-RA Series)
F3SG-R
User’s Manual
Input/Output Circuit and Applications
5-2. Wiring Examples(F3SG-RA Series)
Examples of a motor control system using the F3SG-RA are shown below. This chapter shows examples
equivalent to up to PLe, Category 4 (ISO13849-1).
5-2-1. Standalone F3SG-RA using PNP Outputs
The following is the example of Muting not used, External Device Monitoring enabled, Manual Reset
mode, PNP output and External Test in 24 V Active.
[DIP Switch settings] *2
: Indicates a switch position.
Configure functions with the DIP Switches before wiring.

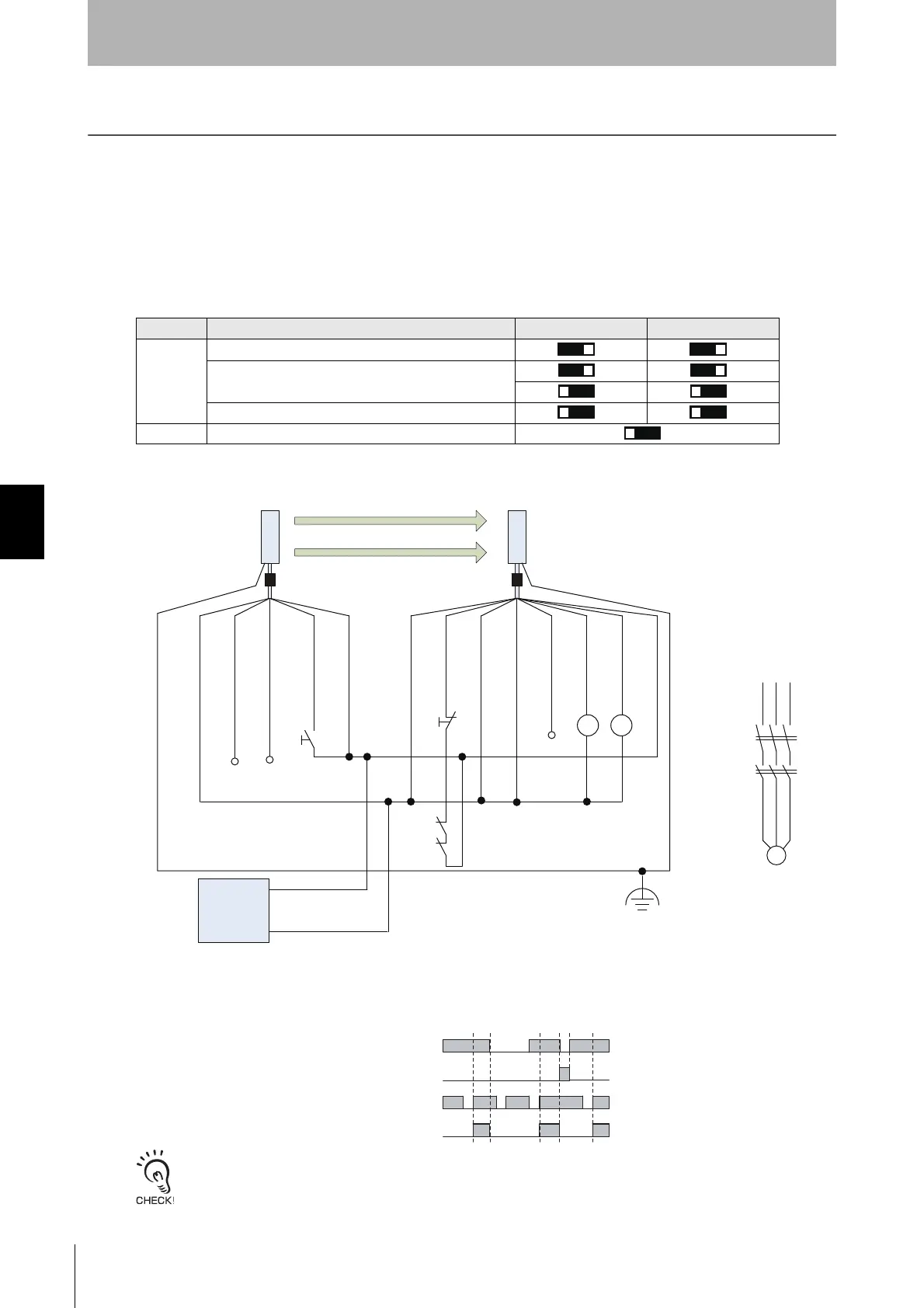

[Wiring Example]
The wiring examples in later pages do not indicate functional earth. To use functional earth, wire an earth cable
according to the example above. Refer to 4-5-5. Functional Earth Connection for more information.
Function DIP-SW1 DIP-SW2
Receiver
EDM Enabled
Manual Reset
PNP (factory default setting)
Emitter External Test: 24 V Active (factory default setting)
㻞㻻㻺
㻟㻻㻺 㻟㻻㻺
㻠㻻㻺 㻠㻻㻺
㻣㻻㻺
OSSD1 : Black
OSSD2 : White
24 VDC : Brown
Not used : Yellow
TEST : Black
Not used : White
24 VDC : Brown
0 VDC : Blue
Receiver
Emitter
0 VDC : Blue
AUX : Red
MUTE B : Pink
MUTE A : Gray
RESET : Yellow *1
S2
S1: Test Switch (Connect the line to 0 V
if this switch is not required)
S2: Lockout/Interlock Reset Switch
KM1, KM2: Safety relay with forcibly guided contacts (G7SA)
or magnetic contactor
M: 3-phase motor
S1
F39-JGA-L F39-JGA-D
KM1
KM2
KM1
KM2
Power Supply
+24 VDC
0 VDC
KM1
KM2
M
Unblocked
Blocked
Test Switch (S1)
Beam state
Reset Switch (S2)
OSSD
Functional Earth
*1. Also used as EDM input line.
*2. The functions are configurable with DIP Switch. Refer to
Chapter 3 Setting with DIP Switch for more information on
setting the functions by the DIP Switch.
To Next Page
