Omron F3SG series User Manual

75
F3SG-R
User’s Manual
Chapter2 Override
System Operation and Functions
E

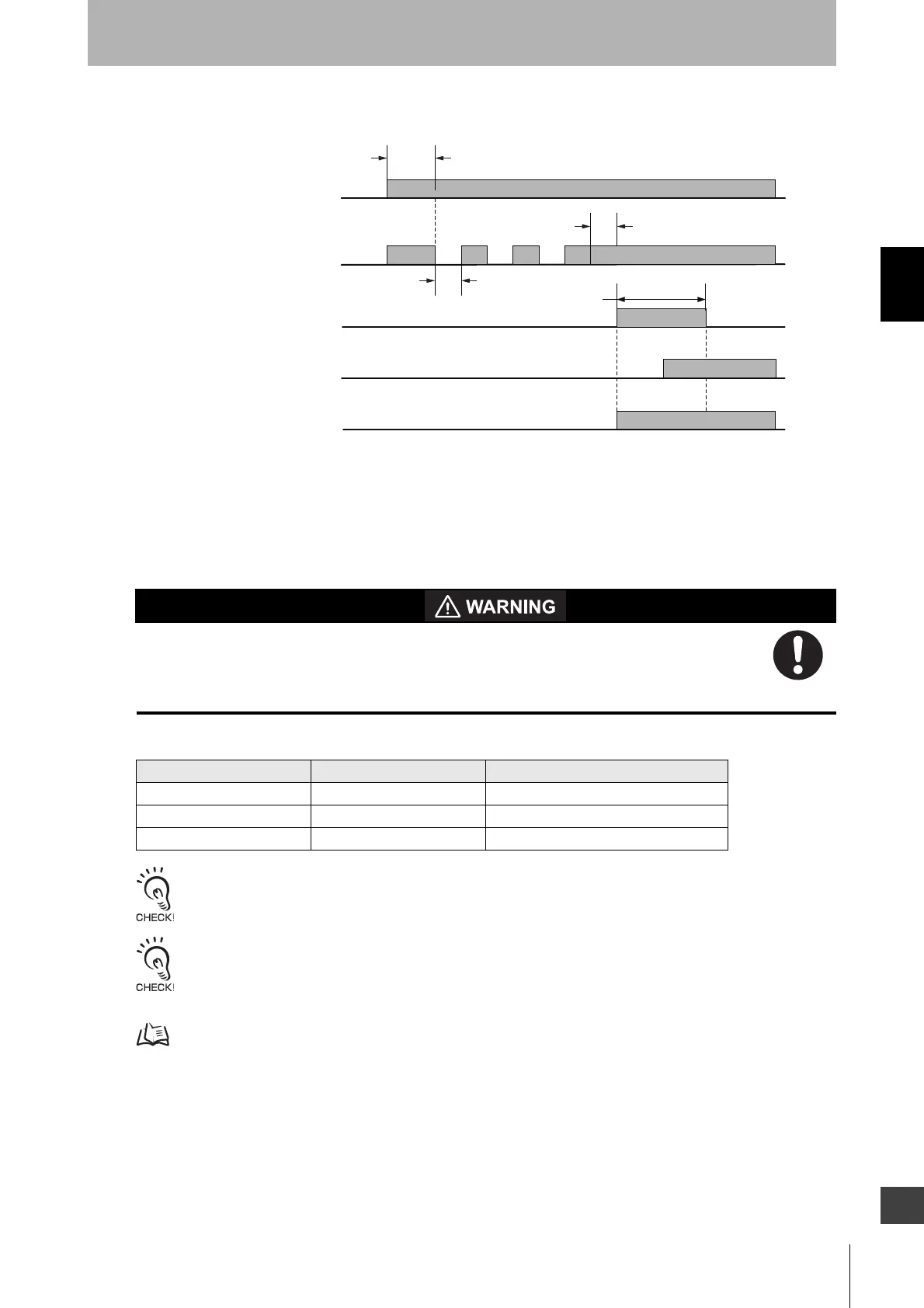

 Timing chart
2-13-3. Setting with DIP Switch
The user cannot make any changes to this function by the DIP Switch.
2-13-4. Setting with Configuration Tool
Some settings of functions configurable with the Configuration Tool may increase risks.
Make sure the Responsible Person conduct a thorough risk assessment analysis before
managing and changing the settings. Unintended changes to the settings may cause a
person to go undetected, resulting in serious injury.
The user can make changes to the settings by the Configuration Tool.
Make sure the Position 8 of the DIP Switch is set to Configuration Tool Enabled to activate the settings by the
Configuration Tool.
Setting the override time limit to infinite may cause a failure of disabling the override state when there is a failure of the
override input signal. Conduct risk assessment analysis thoroughly before enabling this setting.
Refer to Safety Light Curtain Configuration Tool for Model F3SG (SD Manager 2) User’s Manual for more
information on setting this function by the Configuration Tool.
Function name Factory Default Setting Available Parameters
Override Enable Enable/Disable
Override input time limit 1 s 0.1 to 5 s in 0.1-s increments
Override time limit 600 s 1 to 600 s in 1-s increments, or infinite
Reset Input
ON
OFF
Override State
Beam state
Unblocked
Blocked
Enabled
Disabled
OSSD
ON
OFF
T1 T1 T1 T1 T1 T1
ON
OFF
Power
2 to 5 s
1 s max.
1 s max.
T2 max.

Omron F3SG series Specifications

General

Type	Safety Light Curtain
Protection Rating	IP67
Connection	M12 connector
Detection Method	Infrared Light
Operating Temperature	-10°C to +55°C
Resolution	14mm, 25mm, 40mm
Standards	EN/IEC 61496-1, EN ISO 13849-1
Power Supply Voltage	24V DC ±10%
