Omron F3SG series User Manual

99
F3SG-R
User’s Manual
Chapter2 Designated Beam Output
System Operation and Functions
E
2-22. Designated Beam Output
2-22-1. Overview
This function allows information on unblocked/blocked states of a given beam to be output.
Example:
• To turn a Lamp ON when a specified beam of F3SG-RA is blocked
• To output, from the auxiliary output, a signal of information on a specified beam being unblocked
If one or more specified beams are blocked or unblocked, the information on the beam state can be
provided as an auxiliary output or indication of Lamp.

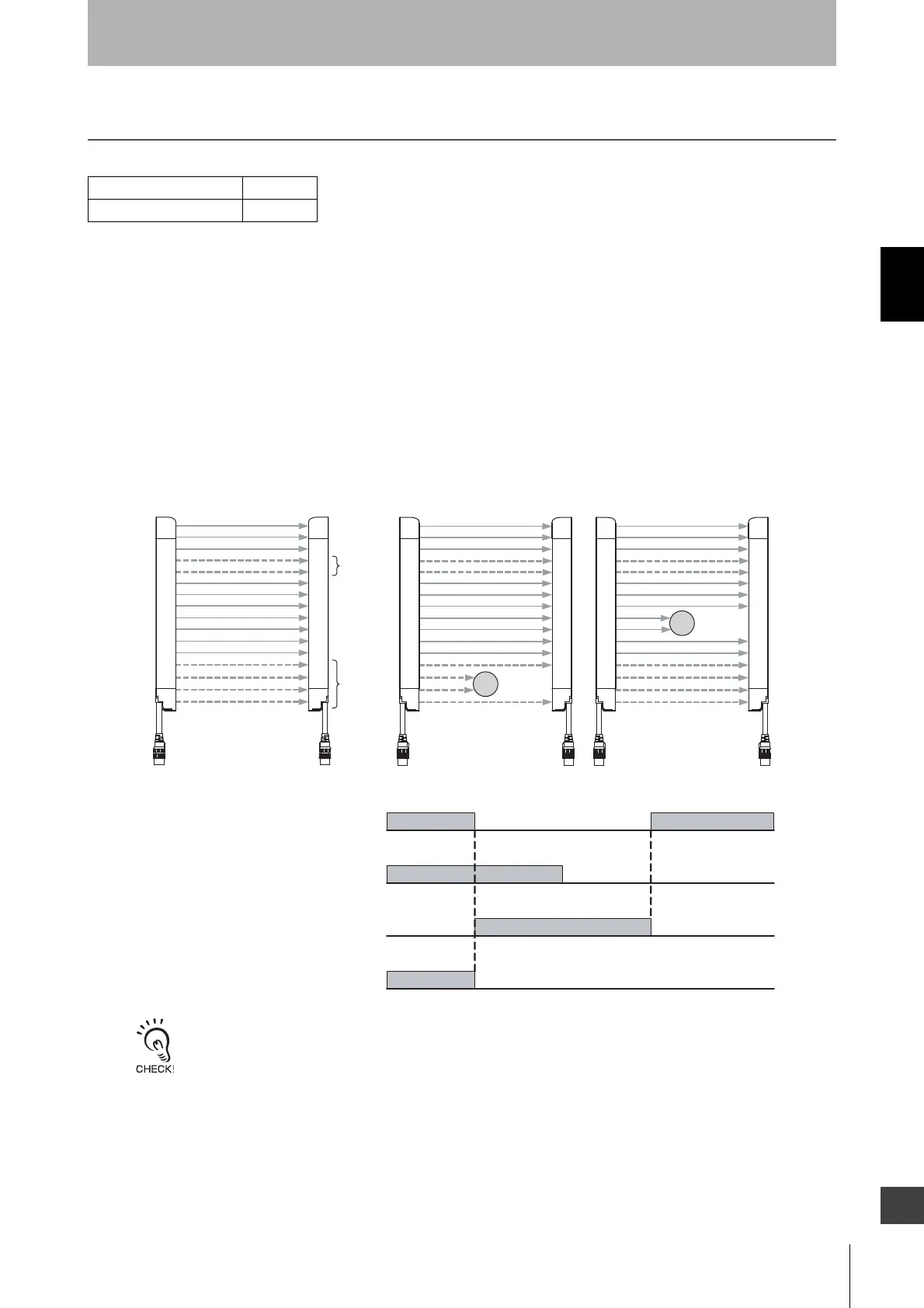

Operation Example
Designated beam state: Dark-ON
The Designated Beam Output is not available for the F3SG-RE.
2-22-2. Factory Default Setting
The factory default setting is Designated Beam Output as Disable.
F3SG-RA Series X
F3SG-RE Series
Safety output ON Safety output OFF Safety output OFF
Designated beam output OFF Designated beam output ON Designated beam output OFF
Figure 1 Figure 2 Figure 3
Designated
beam
Designated
beam
Beam state
Beam state
(Designated beam)
Unblocked
Blocked
(Other than designated beam)
Designated beam output
ON
OFF
Unblocked
Blocked
OSSD
ON
OFF

Omron F3SG series Specifications

General

Type	Safety Light Curtain
Protection Rating	IP67
Connection	M12 connector
Detection Method	Infrared Light
Operating Temperature	-10°C to +55°C
Resolution	14mm, 25mm, 40mm
Standards	EN/IEC 61496-1, EN ISO 13849-1
Power Supply Voltage	24V DC ±10%
