Omron F3SG series User Manual

132
Chapter4 Dimensions
F3SG-R
User’s Manual
Wiring/Installation

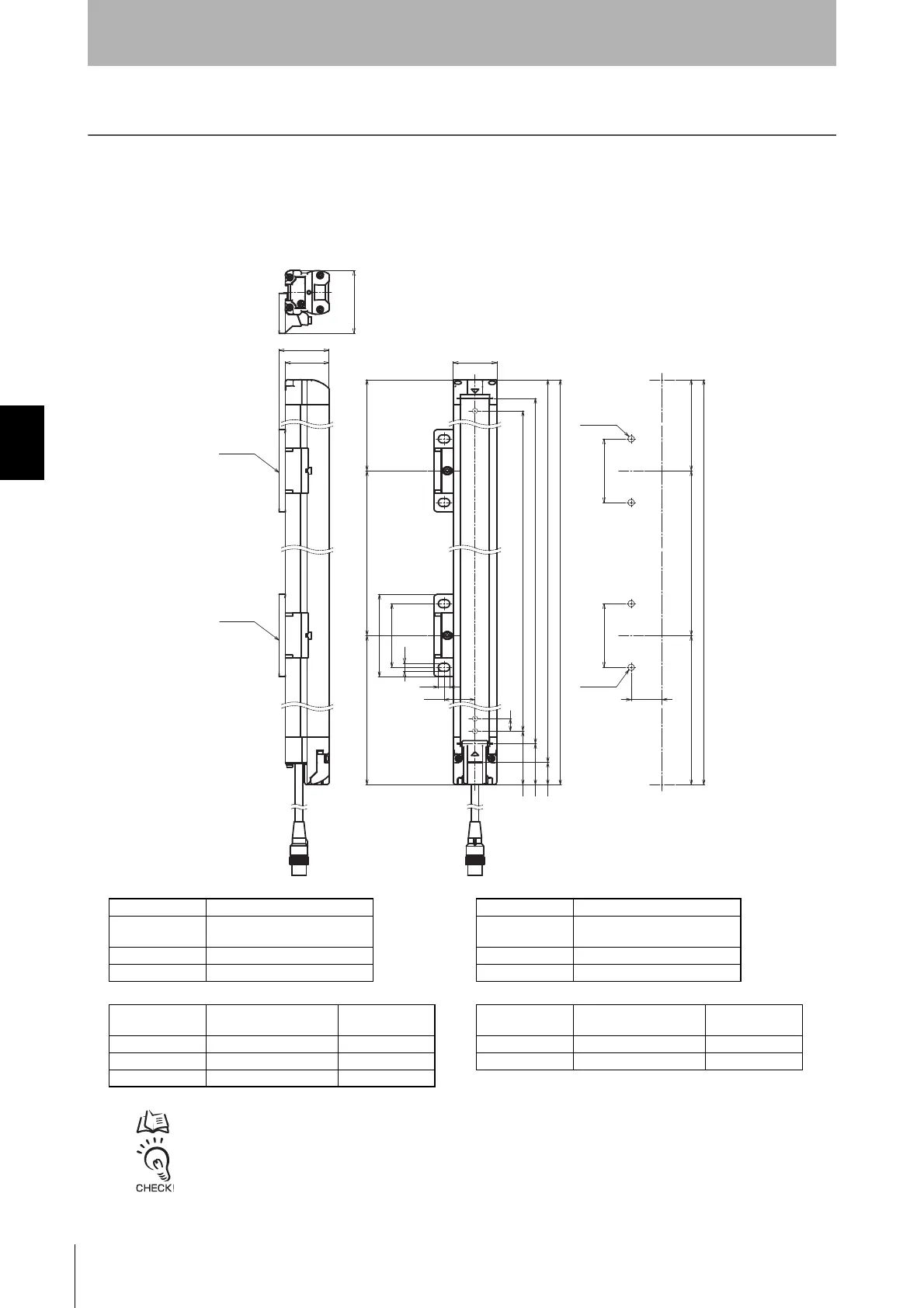

4-3. Dimensions
4-3-1. Mounted with Standard Fixed Brackets (F39-LGF)
4-3-1-1. F3SG-RA Series
 Backside Mounting
4-4-3-1. Mounting with Standard Fixed Brackets (F39-LGF)
- Use the brackets of specified quantities and locations according to the dimensions. The other brackets than described
above may not meet the specified ratings and performance.
- When you use the sensor in a situation where the sensor is under a load, increase the number of the brackets used.
- The Standard Fixed Bracket does not allow beam alignment.
2-M5 or M6
2-M5 or M6
A
6.4
51
51
35
9.2
66
Standard Fixed
Bracket
Standard Fixed
Bracket
(F39-LGF)
(F39-LGF)
35
40
50.35
D
P
24.85
51
150 maxF
150 max
C2 (Protective height for 14 mm)
C1 (Protective height for 30 mm)
33
18
43
F
24.85
A
150 max
150 max
[ Unit : mm ]
< Screw: M5 or M6 >
F3SG-RA-30 Series
Dimension A C1+18
Dimension C1 4-digit number of the type name
(Protective height)
Dimension D C1-50
Dimension P 20
Protective height
(C1)
Number of Standard
Fixed Brackets *
Dimension F
0190 to 1230 2 1000 mm max.
1310 to 2270 3 1000 mm max.
2350 to 2510 4 1000 mm max.
F3SG-RA-14 Series
Dimension A C2+48
Dimension C2 4-digit number of the type name
(Protective height)
Dimension D C2-20
Dimension P 10
Protective height
(C2)
Number of Standard
Fixed Brackets *
Dimension F
0160 to 1200 2 1000 mm max.
1280 to 2080 3 1000 mm max.
* The number of brackets required to mount either one of emitter and receiver.

Omron F3SG series Specifications

General

Type	Safety Light Curtain
Protection Rating	IP67
Connection	M12 connector
Detection Method	Infrared Light
Operating Temperature	-10°C to +55°C
Resolution	14mm, 25mm, 40mm
Standards	EN/IEC 61496-1, EN ISO 13849-1
Power Supply Voltage	24V DC ±10%
