Omron F3SG series User Manual

3
F3SG-R
User’s Manual
Chapter1 System Components
Overview and Specifications
E
1-2. System Components

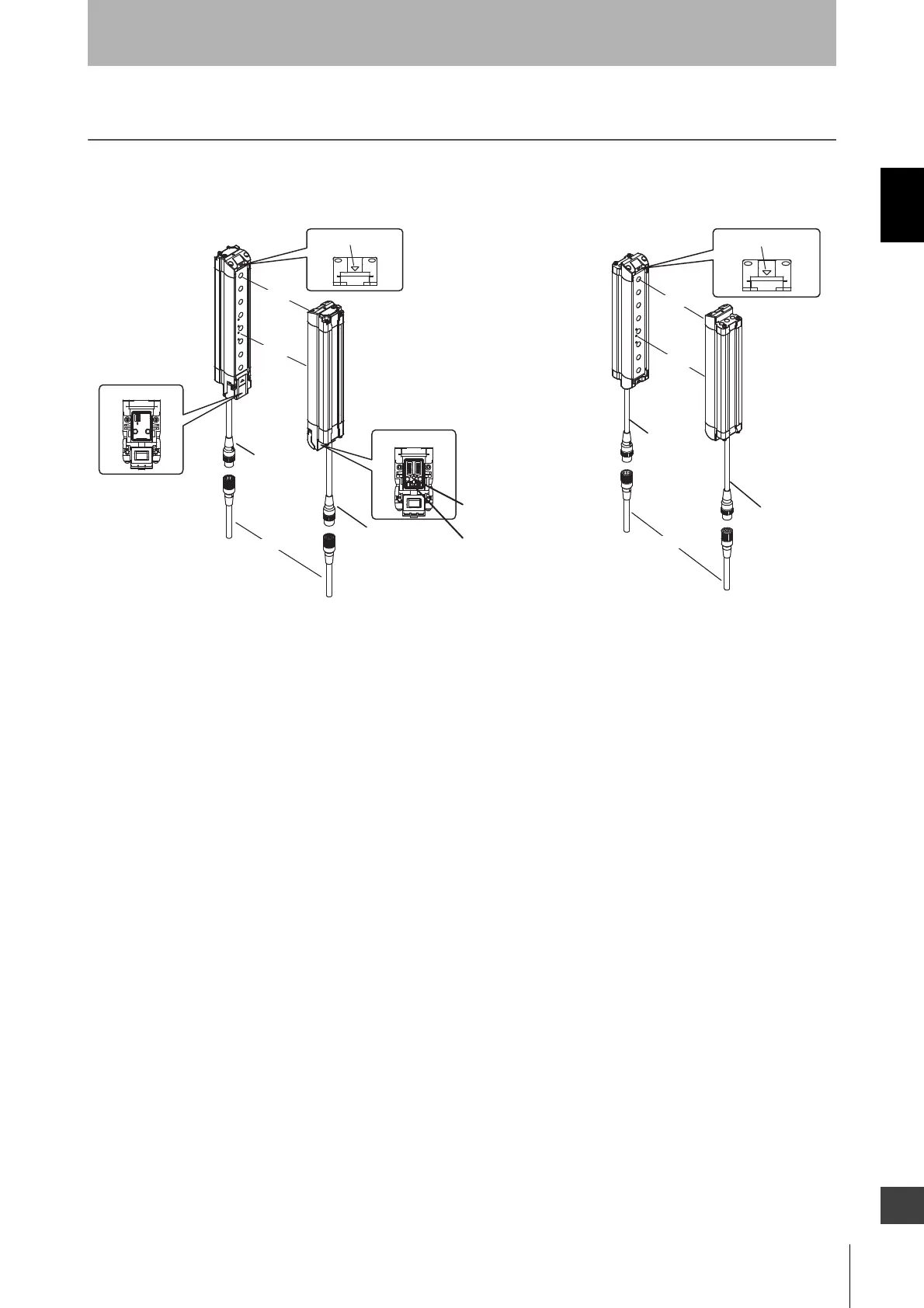

This section describes the system components and part names of the F3SG-R system.
Indicator
Beam
Beam center-line mark
DIP Switch (Receiver)
DIP Switch (Emitter)
Emitter
Receiver
Power Cable
(Black)
Power Cable
(Gray)
Push-Switch
Communication Port
Extension cable
Indicator
Beam
Emitter
Receiver
Power Cable
(Black)
Power Cable
(Gray)
Extension cable
Beam center-line mark
 F3SG-RA Series  F3SG-RE Series

Omron F3SG series Specifications

General

Type	Safety Light Curtain
Protection Rating	IP67
Connection	M12 connector
Detection Method	Infrared Light
Operating Temperature	-10°C to +55°C
Resolution	14mm, 25mm, 40mm
Standards	EN/IEC 61496-1, EN ISO 13849-1
Power Supply Voltage	24V DC ±10%
