Omron F3SG series User Manual

159
F3SG-R
User’s Manual
Chapter4 Mounting
Wiring/Installation
E

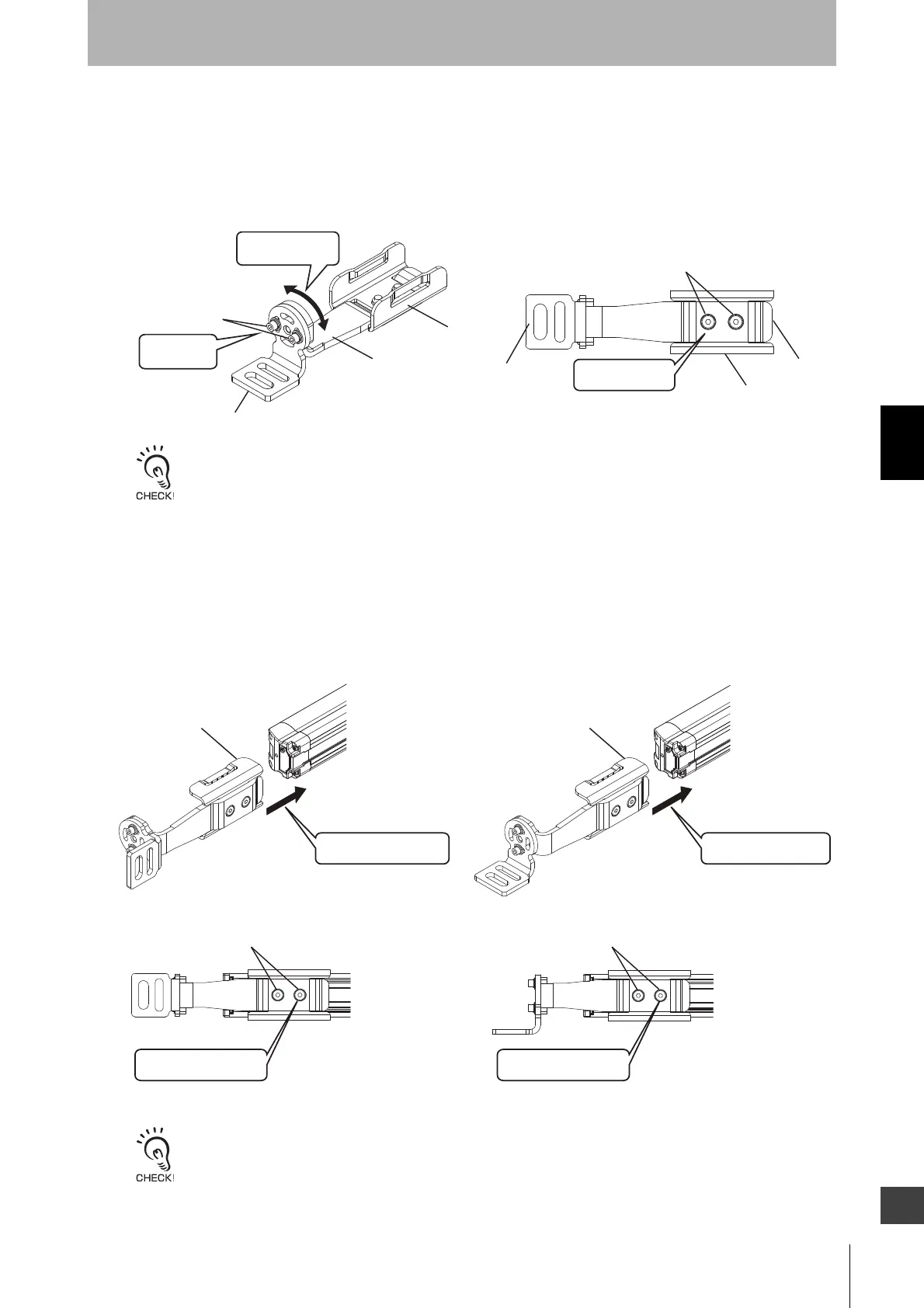

4-4-3-3. Mounting with Top/Bottom Adjustable Brackets (F39-LGTB)
1. Loosen the Screw (1) (hexagon socket head cap screw (M4×10)) of Top/Bottom Bracket (3) and
change the angle of the Top/Bottom Bracket (3) according to its mounting direction. Then loosen the
Screw (2) (low head hexagon socket head cap screw (M5×10)) of Top/Bottom Bracket (2). (Fig. 1)
The width across flat of the hexagon socket of the Screws (1) and (2) is S=3.
2. Slide the Top/Bottom Bracket (1) in the grooves of the F3SG-R housing. Adjust the Top/Bottom
Adjustable Bracket to the mounting position of the wall surface. Make sure to position the whole body
of the Top/Bottom Bracket (1) within the yellow area of the housing. Securely tighten the Screw (2) to
fix the Top/Bottom Adjustable Bracket to the housing of the F3SG-R. The recommended torque to
tighten the Screw (2) is 3.0 N•m. (Fig. 2)
Tightening screws with a torque that considerably exceeds the recommended torque may cause failure.
1. Loosen
these
Adjust the angle
Fig. 1
Screw (1)
(Hexagon socket head
cap screw (M4×10))
Top/Bottom
Bracket (3)
Top/Bottom
Bracket (2)
Top/Bottom
Bracket (1)
Top/Bottom
Bracket (3)
Top/Bottom
Bracket (1)
Top/Bottom
Bracket (2)
2. Loosen these
Screw (2)
(Low head hexagon socket head
cap screw (M5×10))
Fig. 2
Top/Bottom
Bracket (1)
Top/Bottom
Bracket (1)
Slide into the housing
Top/Bottom
Bracket (2)
Top/Bottom
Bracket (2)
Slide into the housing
<Backside mounting> <Side mounting>
Securely tighten these Securely tighten these

Omron F3SG series Specifications

General

Type	Safety Light Curtain
Protection Rating	IP67
Connection	M12 connector
Detection Method	Infrared Light
Operating Temperature	-10°C to +55°C
Resolution	14mm, 25mm, 40mm
Standards	EN/IEC 61496-1, EN ISO 13849-1
Power Supply Voltage	24V DC ±10%
