Omron F3SG series User Manual

173
F3SG-R
User’s Manual
Chapter4 Wiring
Wiring/Installation
E

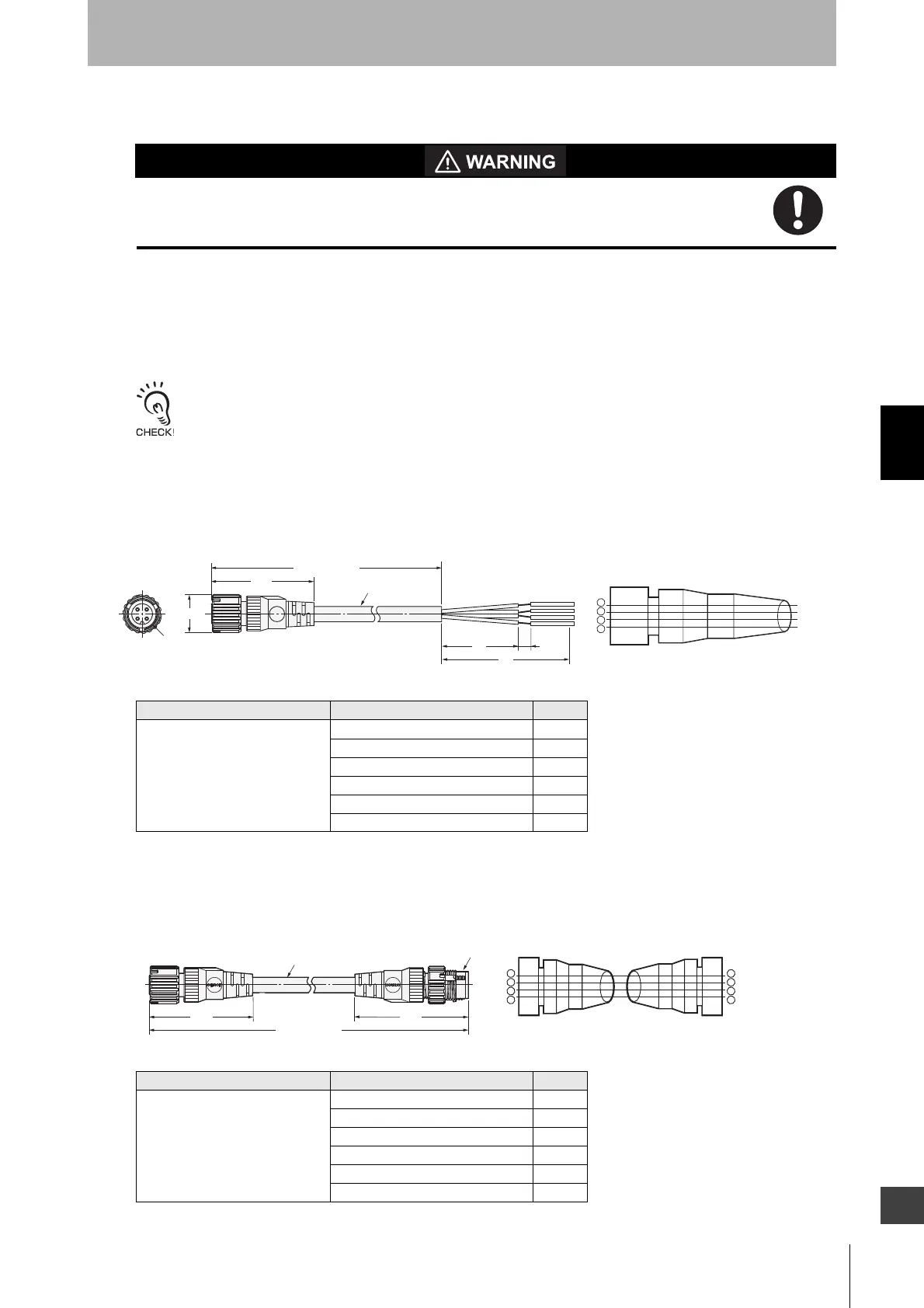

4-5-4. Cable Connections(F3SG-RE Series)
Extension of the cable must be within a specified length. If it isn't, safety function may not
work properly, resulting in danger.
There are no dedicated cables for the F3SG-RE series. You can use the cables that satisfy the
following requirements:
1. Emitter: 4-wire Receiver: 4-wire4
2. 0.3 mm
2
or larger, conductor resistance 0.058 ohms/m max.
Do not use cables in the same conduit as high voltage or electric power lines.
4-5-4-1. Recommended Cable
 Single-Ended Cable (Round Water-resistant Connector: Connector Connected to
Cable, Socket on One Cable End) (XS5F-D421-80-F, sold separately)
 Double-Ended Cable (Round Water-resistant Connector: Connectors Connected to
Cable, Socket and Plug on Cable Ends) (XS5W-D421-81-F, sold separately)
Specification Model L (m)
Fire-retardant, Robot cable
XS5F-D421-C80-F 1
XS5F-D421-D80-F 2
XS5F-D421-E80-F 3
XS5F-D421-G80-F 5
XS5F-D421-J80-F 10
XS5F-D421-L80-F 20
Specification Model L (m)
Fire-retardant, Robot cable
XS5W-D421-C81-F 1
XS5W-D421-D81-F 2
XS5W-D421-E81-F 3
XS5W-D421-G81-F 5
XS5W-D421-J81-F 10
XS5W-D421-L81-F 20
6 dia.
40.7
L (Cable length)
50
30 5
M12
14.9 dia.
1
2
3
4
Brown
White
Blue
Black
Terminal No.
Cable color of
core sheath
(Unit: mm)
(Unit: mm)
40.7
L (Cable length)
44.7
6 dia.
M12
1
2
3
4
1
2
3
4
Terminal No.
Blue
Black
Brown
White
Cable Color
of core
sheath

Omron F3SG series Specifications

General

Type	Safety Light Curtain
Protection Rating	IP67
Connection	M12 connector
Detection Method	Infrared Light
Operating Temperature	-10°C to +55°C
Resolution	14mm, 25mm, 40mm
Standards	EN/IEC 61496-1, EN ISO 13849-1
Power Supply Voltage	24V DC ±10%
