Chapter5 Wiring Examples (F3SG-RE Series)
F3SG-R
User’s Manual
Input/Output Circuit and Applications

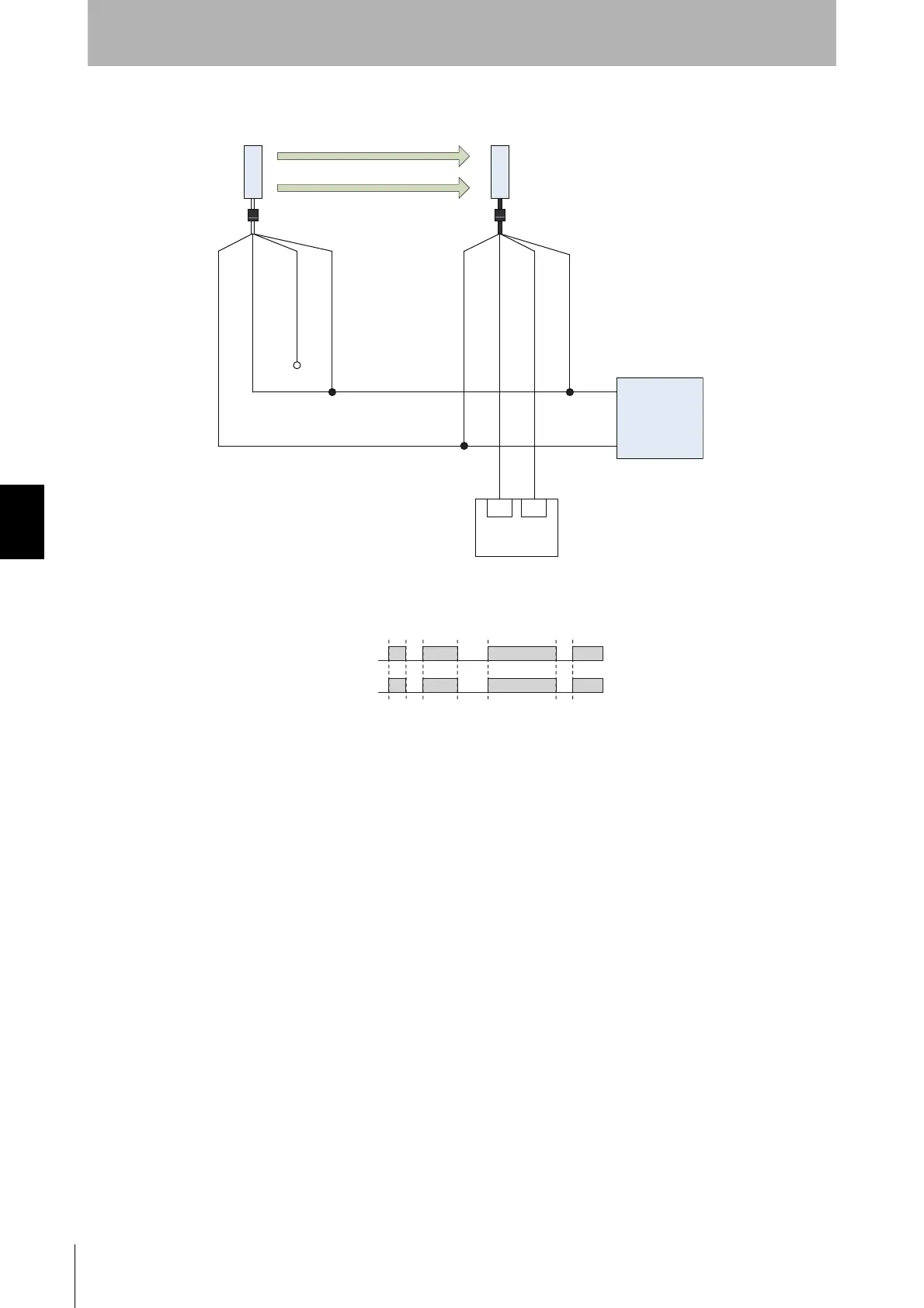

5-3-2. Long Mode
IN1 IN2
+24 V
0 V
OSSD1 : Black OSSD2 : White Operating Range Select Input : White 24 VDC : Brown Not used : Black 24 VDC : Brown 0 V : Blue
Receiver
Emitter
0 V : Blue
DC
Power
Supply
Safety
Controller *1 *2
Unblocked
Blocked
OSSD
Beam state
*1. Refer to 5-4. Connectable Safety Control Units for more information.
*2. The safety controller and the F3SG-R must share the power supply or
be connected to the common terminal of the power supply.

Omron F3SG series Specifications

General

Type	Safety Light Curtain
Protection Rating	IP67
Connection	M12 connector
Detection Method	Infrared Light
Operating Temperature	-10°C to +55°C
Resolution	14mm, 25mm, 40mm
Standards	EN/IEC 61496-1, EN ISO 13849-1
Power Supply Voltage	24V DC ±10%
