Chapter1 What is Included
F3SG-R
User’s Manual
Overview and Specifications
1-1. What is Included
Before use, confirm that the items below are included with the product.
If you find that an item is missing, please contact your local branch office or distributor.

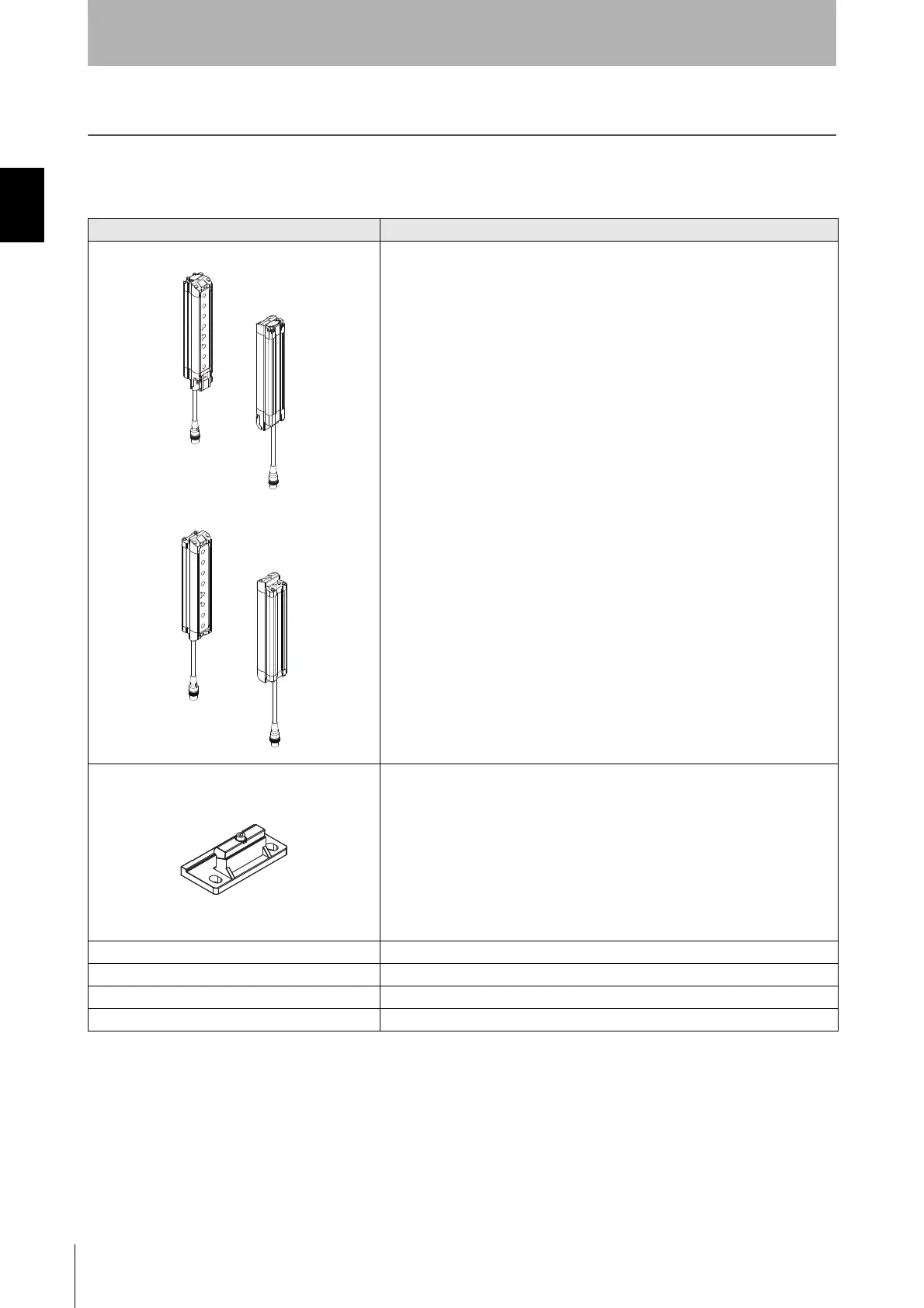

Product Quantity
F3SG-RA main unit
F3SG-RE main unit
Emitter x 1, Receiver x 1
Standard Fixed Bracket The number of brackets included depends on protective height of the F3SG-R.
Less than 1,280 mm: 2 sets
1,280 mm or longer and up to 2,270 mm: 3 sets
2,350 mm or longer and up to 2,510 mm: 4 sets
Warning Zone Label F3SG-RA series: 1, F3SG-RE series: Not included
Troubleshooting Guide Sticker 1
Safety Precautions 4
Quick Installation Manual 1

Omron F3SG series Specifications

General

Type	Safety Light Curtain
Protection Rating	IP67
Connection	M12 connector
Detection Method	Infrared Light
Operating Temperature	-10°C to +55°C
Resolution	14mm, 25mm, 40mm
Standards	EN/IEC 61496-1, EN ISO 13849-1
Power Supply Voltage	24V DC ±10%
