Chapter4 Mounting
Wiring/Installation
E
5. Securely tighten screws to fix the Standard Adjustable Bracket to the mounting position of the wall

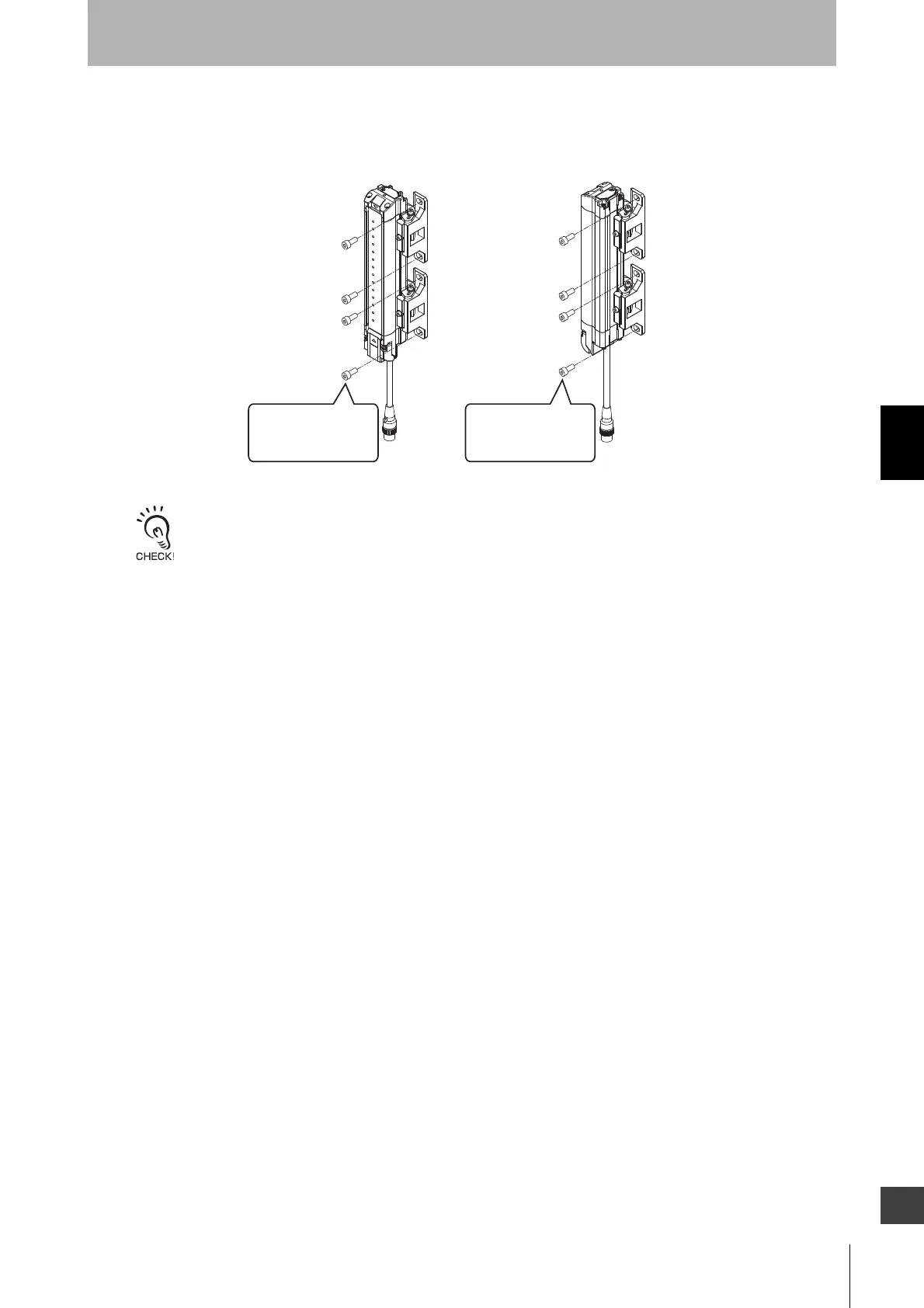

surface. (Fig. 4)
Screws to mount the brackets to the wall are not included.
<Backside mounting> <Side mounting>
Fig. 4
Fix the Standard
Adjustable Bracket
to the wall surface
with screws
Fix the Standard
Adjustable Bracket
to the wall surface
with screws
