Omron F3SG series User Manual

130
Chapter4 Cascade Connection
F3SG-R
User’s Manual
Wiring/Installation

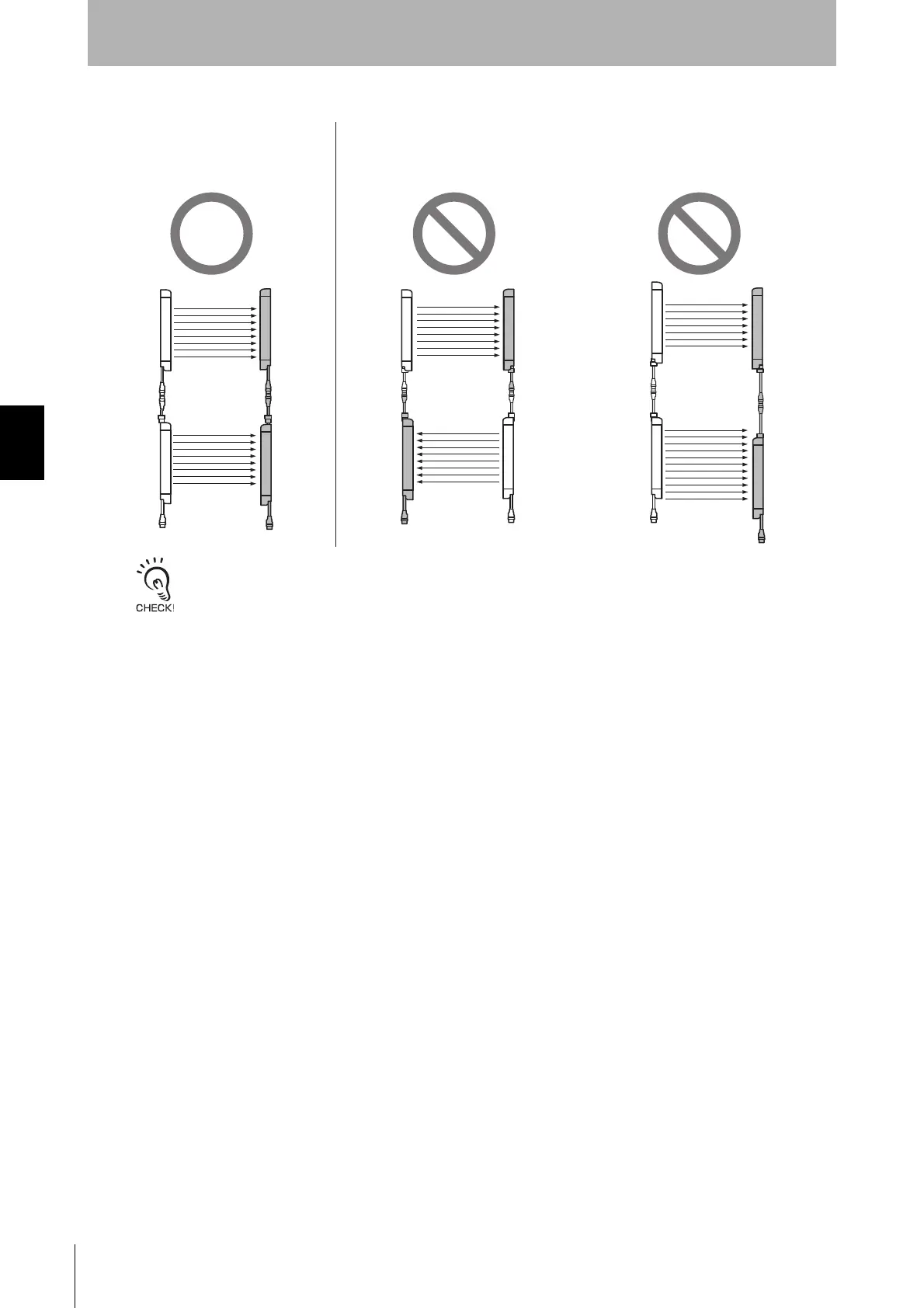

Properly connect an emitter to another emitter, and a receiver to another receiver, as shown below.
If caps and Cascading Cables are not connected properly, the F3SG-RA enters lockout (when power is turned ON).
Do not series-connect an emitter and receiver.
They will enter lockout state.
Do not face different models of emitters and
receivers toward each other. They will enter
lockout state or will be unable to detect objects
Secondary
sensor 1
(Emitter)
Secondary
sensor 1
(Emitter)
Secondary
sensor 1
(Emitter)
Secondary
sensor 1
(Receiver)
Secondary
sensor 1
(Receiver)
Secondary
sensor 1
(Receiver)
Primary
sensor
(Emitter)
Primary
sensor
(Emitter)
Primary
sensor
(Emitter)
Primary
sensor
(Receiver)
Primary
sensor
(Receiver)
Primary
sensor
(Receiver)

Omron F3SG series Specifications

General

Type	Safety Light Curtain
Protection Rating	IP67
Connection	M12 connector
Detection Method	Infrared Light
Operating Temperature	-10°C to +55°C
Resolution	14mm, 25mm, 40mm
Standards	EN/IEC 61496-1, EN ISO 13849-1
Power Supply Voltage	24V DC ±10%
