97
F3SG-R
User’s Manual
Chapter2 Lamp
System Operation and Functions
E
The user can make changes to the settings by the Configuration Tool.
*1. Setting parameters of this function are saved according to the states where the Muting function is
enabled and disabled, respectively. After changing the Muting function from Enable to Disable or
from Disable to Enable, also check the settings of this function again.
Refer to  Considerations for enabling and disabling Muting function under 2-1. Combination of
Functions for more information.
Refer to 2-12. Muting for more information on settings of the Muting function.
*2. Refer to the table of Information (Output operation mode) assigned to Lamp below.
*3. The Lamp illuminates according to the patterns as shown in the output pattern chart below.

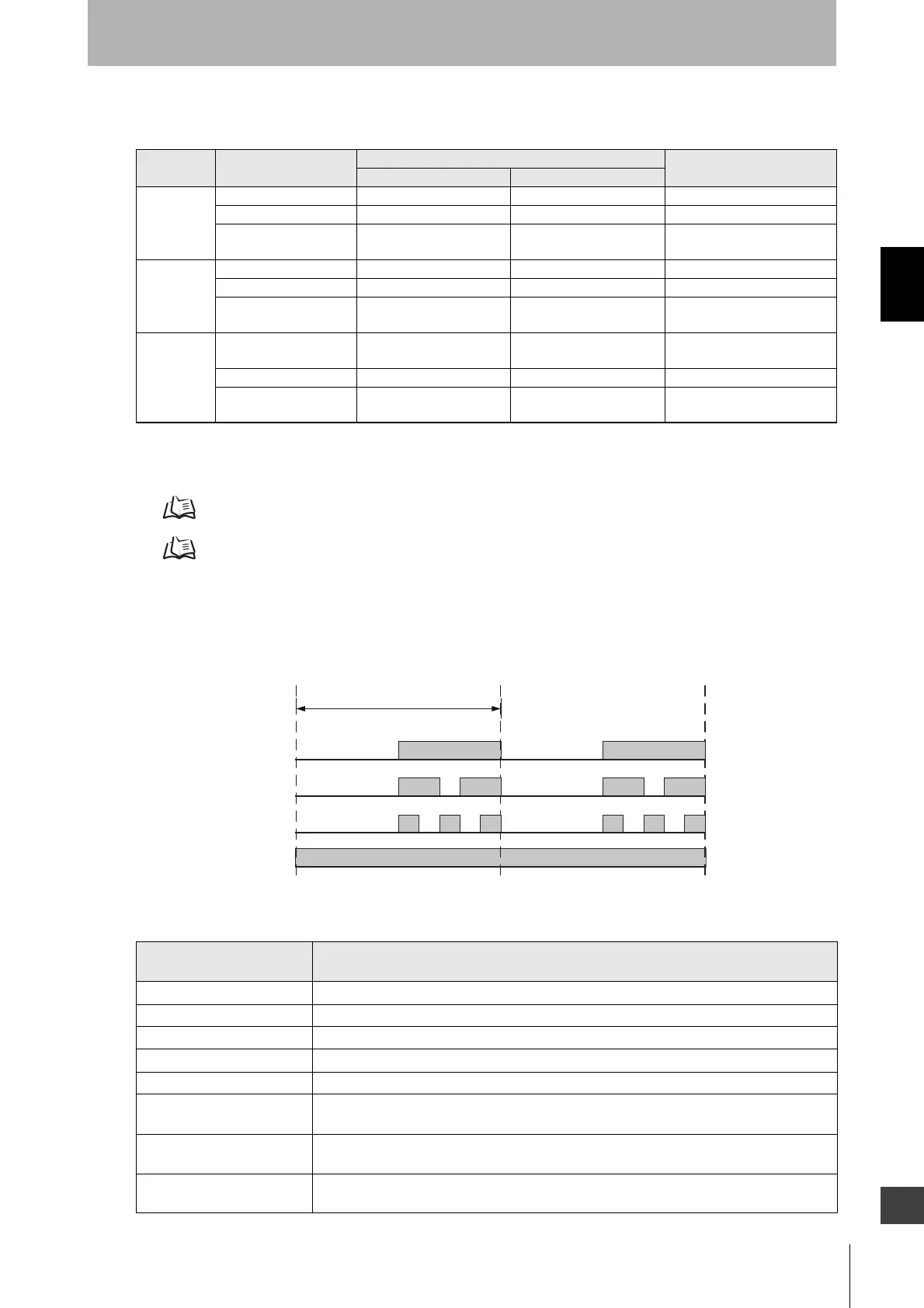

 Output pattern chart
 Information (Output operation mode) assigned to Lamp
Lamp output Function
Factory Default Setting
Available Parameters
Muting function enabled*1 Muting function disabled*1
Red
(Priority 1)
Output operation mode None None *2
Inverted signal output Disable Disable Enable/Disable
Output pattern Solid-ON Solid-ON Solid-ON/ON 1 time/ON 2
times/ON 3 times *3
Orange
(Priority 2)
Output operation mode None None *2
Inverted signal output Disable Disable Enable/Disable
Output pattern Solid-ON Solid-ON Solid-ON/ON 1 time/ON 2
times/ON 3 times *3
Green
(Priority 3)
Output operation mode Muting/Override
information
None *2
Inverted signal output Disable Disable Enable/Disable
Output pattern ON 1 time *3 Solid-ON Solid-ON/ON 1 time/ON 2
times/ON 3 times *3
Information Name
Description
(Lamp is turned ON under the following condition)
Safety output information When Safety output is in the ON state.
Reset-input information When Reset/EDM/Override input is in the ON state
Interlock information Under Interlock state
Pre-reset Information Under Pre-reset state
Lockout information Under error/ Lockout state
Excess power-on time
information
When power-on time exceeds power-on time threshold
Excess load switching
frequency information
When load switching frequency exceeds load switching frequency threshold
Light level diagnosis
information
When the F3SG-R is unblocked and light intensity is within a range from 100% to 170% of ON-
threshold for 10 s or longer
Solid-ON
ON 3 times
ON 2 times
ON 1 time
1 s
