Omron F3SG series User Manual

54
Chapter2 Muting
F3SG-R
User’s Manual
System Operation and Functions

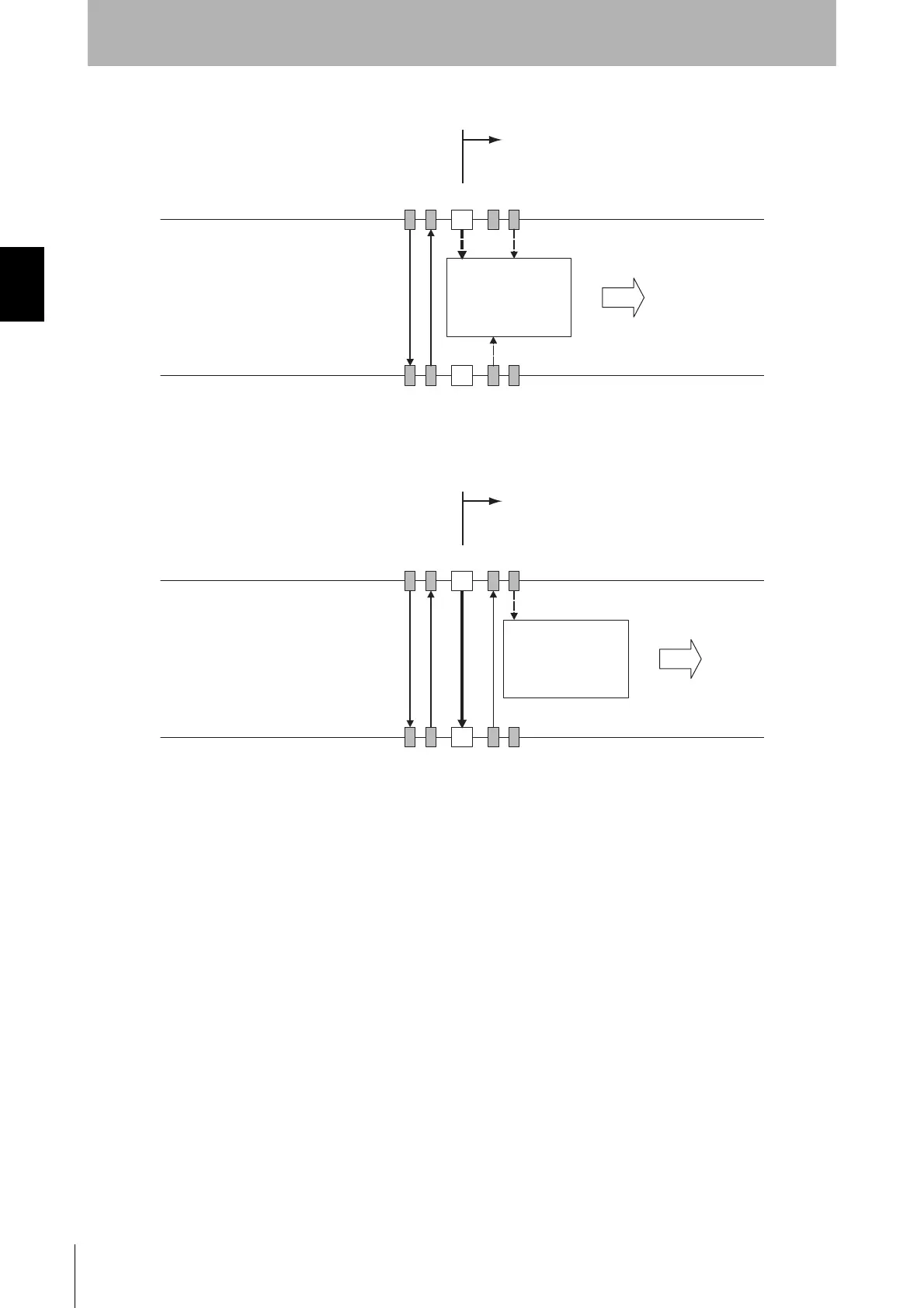

3. The muting sensor is blocked and the safety function of the F3SG-RA is disabled
Muting sensors A1 and B1 are turned OFF but A2 and B2 are ON, so the muting state is still
maintained. Safety outputs 1 and 2 are turned ON.
4. The muting state is released
Muting sensor B2 is turned OFF, the muting state is released, and the safety function of the F3SG-RA
is enabled.
<Installation distance>
The minimum distance, D3 [m], required for muting sensors to keep the muting state enabled is :
D3 < L . . . . . Formula (3)
L [m]: Length of a workpiece
The maximum distance, d2 [m], required for muting sensors to keep the muting state enabled is :
V x T1min < d2 < V x T1max . . . . . Formula (4)
V [m/s] : Approach speed of a workpiece
T1min [s] : Muting input time limit value (minimum). It is set as 0.1 s. (configurable)
T1max [s] : Muting input time limit value (maximum). It is set as 4 s. (configurable)
A1 F3SG-RA A2
Workpiece
Hazardous zone
B1 B2
A1
B1
F3SG-RA
B2
A2
Workpiece
Hazardous zone

Omron F3SG series Specifications

General

Type	Safety Light Curtain
Protection Rating	IP67
Connection	M12 connector
Detection Method	Infrared Light
Operating Temperature	-10°C to +55°C
Resolution	14mm, 25mm, 40mm
Standards	EN/IEC 61496-1, EN ISO 13849-1
Power Supply Voltage	24V DC ±10%
