Chapter2 Muting
F3SG-R
User’s Manual
System Operation and Functions
Also, muting sensors and F3SG-RA must be installed so that muting state caused by a workpiece
should be ended before the next workpiece arrives at the first muting sensor.

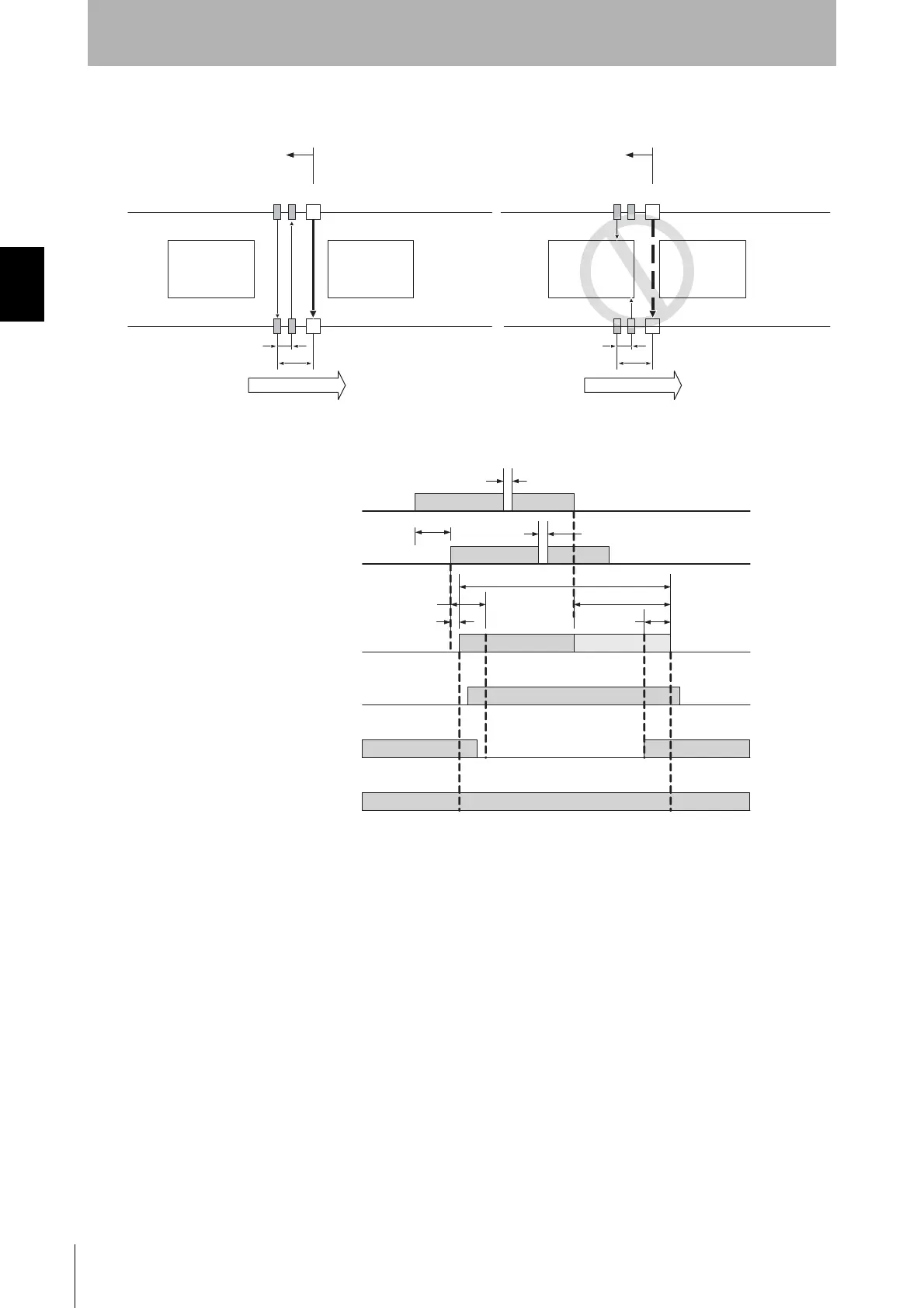

 Timing Chart
Workpiece Workpiece Workpiece Workpiece
F3SG-RAA1 B1 F3SG-RAA1 B1
Hazardous zone Hazardous zone
d2
d1
d2
d1
Moving direction
Moving direction
T2 max.
80 ms max.
T5 max.
Muting input A
(Muting sensor A1)
ON
OFF
Muting input B
(Muting sensor B1)
Beam state
Unblocked
Blocked
OSSD
ON
OFF
ON
OFF
Muting state
Enabled
Disabled
Auxiliary output
Blinking
OFF
T1max
T4 (1 s)
T1min to T1max
T3 (0.1 s) max.
T3(1 s) max.
Blinking at 0.5 s (1 Hz)

Omron F3SG series Specifications

General

Type	Safety Light Curtain
Protection Rating	IP67
Connection	M12 connector
Detection Method	Infrared Light
Operating Temperature	-10°C to +55°C
Resolution	14mm, 25mm, 40mm
Standards	EN/IEC 61496-1, EN ISO 13849-1
Power Supply Voltage	24V DC ±10%
