Omron R88D-1SN ECT Series User Manual

3 Specifications
3 - 82
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)

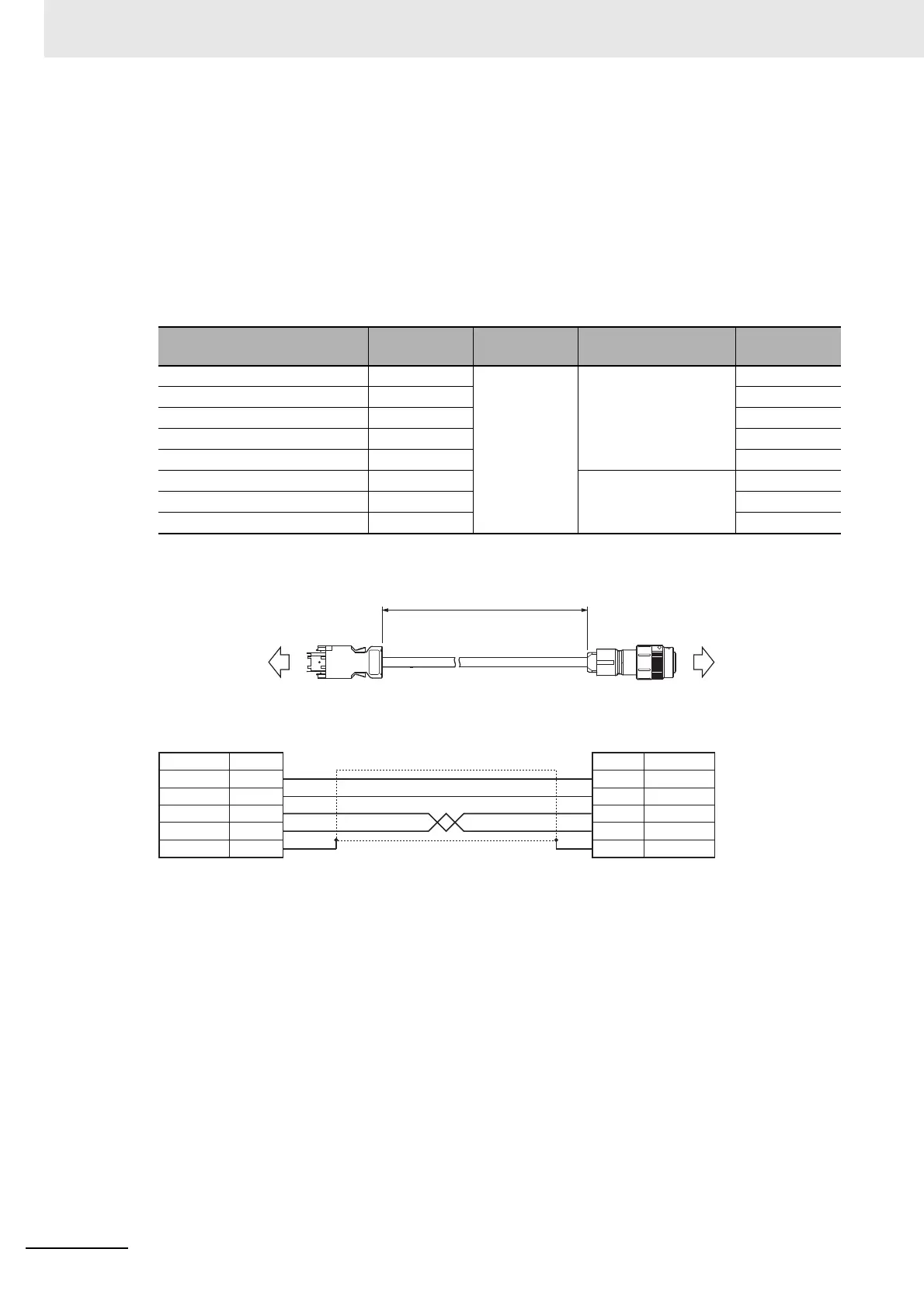

 R88A-CR1BNF
Applicable Servomotors
200 V:
3,000-r/min Servomotors of 1 kW to 3 kW, 2,000-r/min Servomotors, and 1,000-r/min Servomotors
400 V:
3,000-r/min Servomotors of 3 kW or less, 2,000-r/min Servomotors, and 1,000-r/min Servomotors
Cable types
Connection configuration and external dimensions [mm]
Wiring
Model Length [L]
Outer diame-
ter of sheath
Minimum bending
radius
Weight
R88A-CR1B003NF 3 m 6.0 dia. 33 mm Approx. 0.3 kg
R88A-CR1B005NF 5 m Approx. 0.4 kg
R88A-CR1B010NF 10 m Approx. 0.8 kg
R88A-CR1B015NF 15 m Approx. 1.1 kg
R88A-CR1B020NF 20 m Approx. 1.5 kg
R88A-CR1B030NF 30 m 42 mm Approx. 2.3 kg
R88A-CR1B040NF 40 m Approx. 3.0 kg
R88A-CR1B050NF 50 m Approx. 3.7 kg
Servomotor side
R88M-1
L
Servo Drive side
R88D-1SN
3
7
E5V
E0V
S+
S-
FG9
Symbol
4
1
Symbol
E5V 1
E0V 2
S+ 5
S- 6
FG
AWG22 × 2C + AWG24 × 1P UL20276 (3 to 20 m)
AWG18 × 2C + AWG24 × 1P UL20276 (30 to 50 m)
Rec eptacle: 3E206-0100KV (3M)
Shell kit: 3E306-3200-008 (3M)
JN2DS10SL1-R
(Japan Aviation Electronics)
JN1-22-22S-10000
(Japan Aviation Electronics)
Servomotor side connector
Servo Drive side
connector
Connector model
Red
Black
Blue
Blue/white
Name
Servomotor side
Cable
Name
Servo Drive side
Shell
Contact model
Straight plug model

Omron R88D-1SN ECT Series Specifications

General

Feedback	Incremental encoder, Absolute encoder
Position Control	Yes
Speed Control	Yes
Torque Control	Yes
Communication Interface	EtherCAT
Power Supply Voltage	200 to 240 VAC
Output Power	0.1 to 1.5 kW
Input Voltage Range	170 to 264 VAC
Control Method	Sine-wave PWM control
Main Circuit Power Supply	200-240 VAC
Applicable Motor Capacity	0.1 to 1.5 kW
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Encoder Error
Ambient Operating Temperature	0 to 55°C
Vibration Resistance	4.9 m/s² (10 to 55 Hz)
Shock Resistance	98 m/s2
Weight	Varies by model
