Omron R88D-1SN ECT Series User Manual

Items to Check After Unpacking
38
AC Servomotors/Servo Drives 1S-series with Built-in EtherCAT® Communications User’s Manual (I586)
For Decelerators (backlash: 15 arcminutes max.), the product nameplate indicates the model number,
rated output, reduction ratio, serial number, and date of manufacture.
The following product models come with a shield clamp. The shield clamp is used for mounting to a
Servo Drive. Keep it until the use.
Applicable models: R88A-CA1H
F, R88A-CA1JF, R8 8A-CA1KF
As for a shield clamp, refer to Shield Clamp Bracket on page 2-32.

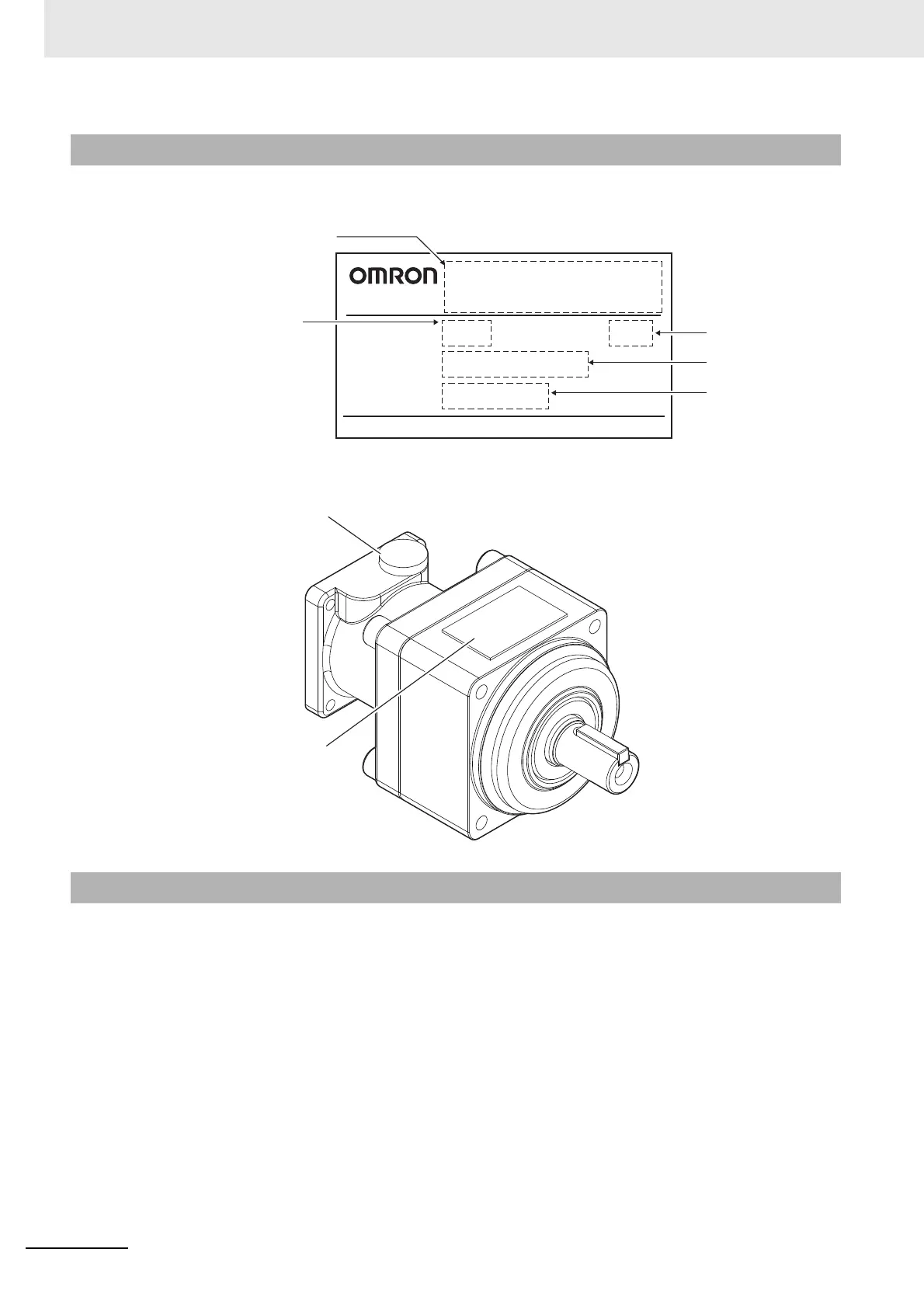

Decelerator (Backlash: 15 Arcminutes Max.)
Motor Power Cable
MADE IN CHINA
GEAR
R88G-
100 W
XXXXXXXXX
XXXX.XX
RATIO 1:5
VRXF05B100CJ
POWER
LOT NO.
DATE
OMRON Corporation
Reduction ratio
(Example: 1/5)
Rated output
(Example: 100 W)
Decelerator model number
Serial number
Date of manufacture
Nameplate display location
(Rubber cap side)
(Rubber cap)

Omron R88D-1SN ECT Series Specifications

General

Feedback	Incremental encoder, Absolute encoder
Position Control	Yes
Speed Control	Yes
Torque Control	Yes
Communication Interface	EtherCAT
Power Supply Voltage	200 to 240 VAC
Output Power	0.1 to 1.5 kW
Input Voltage Range	170 to 264 VAC
Control Method	Sine-wave PWM control
Main Circuit Power Supply	200-240 VAC
Applicable Motor Capacity	0.1 to 1.5 kW
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Encoder Error
Ambient Operating Temperature	0 to 55°C
Vibration Resistance	4.9 m/s² (10 to 55 Hz)
Shock Resistance	98 m/s2
Weight	Varies by model
