Panasonic FP0R - Overview of each Functions; Three Pulse InputOutput Functions; Pulse Output Function; PWM Output Function

8-3
8.1 Overview of Each Functions

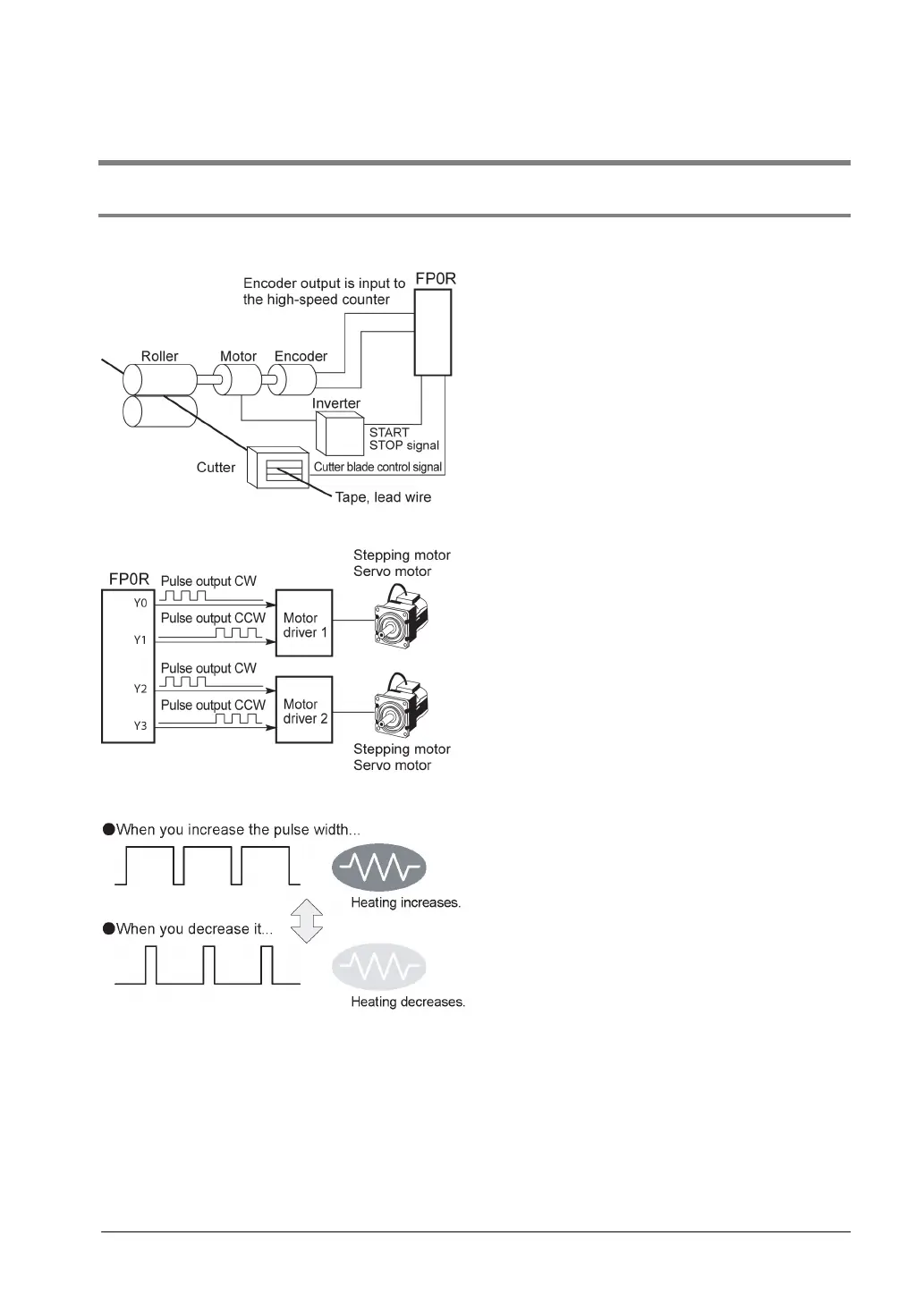

8.1.1 Three Pulse Input/Output Functions
High-speed counter function
The high-speed counter function counts external
inputs such as those from sensors or encoders.
When the count reaches the target value, this
function turns on/off the desired output.
Pulse output function
Combined with a commercially available motor
driver, the function enables positioning control.
With the exclusive instruction, you can perform
trapezoidal control, home return, and JOG
operation.
PWM output function
By using the exclusive instruction, the PWM output
function enables a pulse output of the desired duty
ratio.
