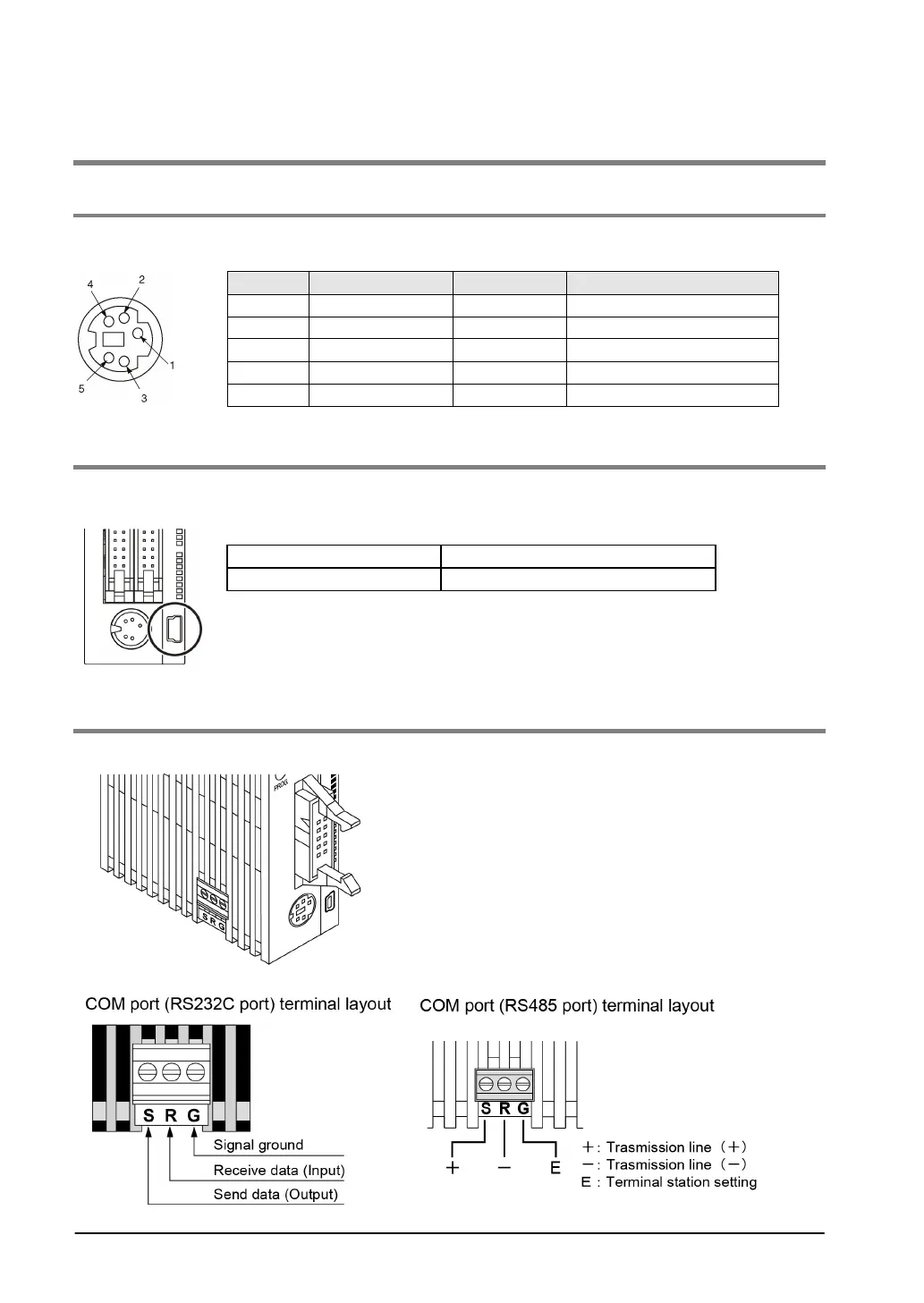

7.2 Communicaton Port Type
7.2.1 Tool Port
This connector is used to connect a programming tool.
A commercial mini-DIN 5-pin connector is used for the tool port on the control unit.
Pin No.
Signal name
Abbreviation
Signal direction
1 Signal Ground SG -
2
Send Data
SD
Unit
→
External device
３ Receive Data RD Unit ← External device
４
(Not used)
-
-
５ +5 V +5 V Unit → External device
7.2.2 USB Port
This connector is used to connect a programming tool.
A commercial USB2.0 cable (A: miniB) can be used.
Standard USB2.0
connector shape USB miniB type
Note) The USB driver should be installed. It is assigned to a
virtual COM port on the PC Select "RS232C(C-NET)" in a
programming tool.
7.2.3 COM Port
It is a screw down connection type terminal block (3-pin).
