Panasonic FP0R - Connector for Loose-Wire Cable; Suitable Wires (Twisted Wire); Supplied Connector and Suitable Wires; Wiring of MIL Connector Type

5-11

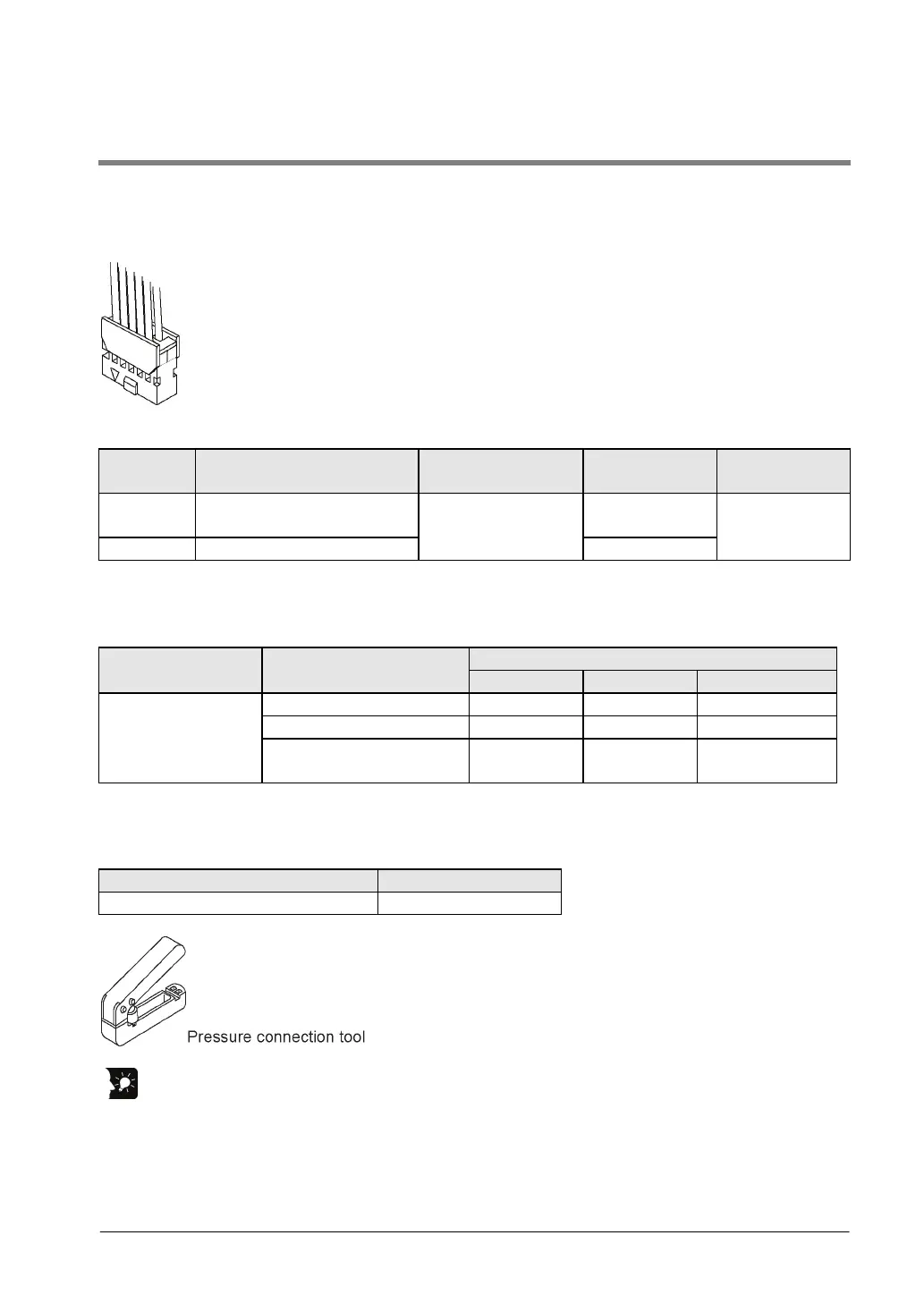

5.4 Wiring of MIL Connector Type
Supplied connector and suitable wires
The connector listed below is supplied with the unit. Use the suitable wires given below. Also, use the
required pressure connection tools for connecting the wires.
Suitable wires (Twisted wire)
Size
Nominal cross-sectional
area
Insulation thickness Remark Rated current
AWG#22 0.3mm
2
Dia. 1.5 to dia. 1.1
Twisted wire of
12 pcs/0.18
3A
AWG#24 0.2mm
2
Twisted wire
Note) The contact suitable for AWG#22 or AWG#24 is supplied with the product. For purchasing a
contact suitable for AWG#26 or AWG#28, specify AXW7231FP.
Connector for loose-wire cable (Attached to the control unit and expansion I/O unit)
Manufacturer Type and product No.
Unit type and required quantity
E8
C16/E16
C32/T32/F32/E32
Manufactured by us
Housing(10P) 1 pc 2 pcs x 1 set 2 pcs x 2 sets
Semi-cover(10P)
2 pcs
4 pcs x 1 set
4 pcs x 2 sets
Contact (for AW22 and 24)
5 pins
2 pcs x 1 set
4 pcs x 1 set 4 pcs x 2 sets
Note) The parts of the number of the connectors are supplied with the product. If you need more
connectors, purchase AFP0807 (2 sets/pack).
Pressure connection tool
Manufacturer
Product No.
Manufactured by us
AXY52000FP
Key Point:
When using a MIL connector for flat cables, purchase the product number AFP0808 (4 pcs, 10-pin
strain-relief with key). In this case, the suitable wire is AWG#28 and the rated current is 1A.
