Panasonic FP0R - Input and Output Specifications; Limitations on Number of Simultaneous Input on Points; Circuit Diagram

2-4

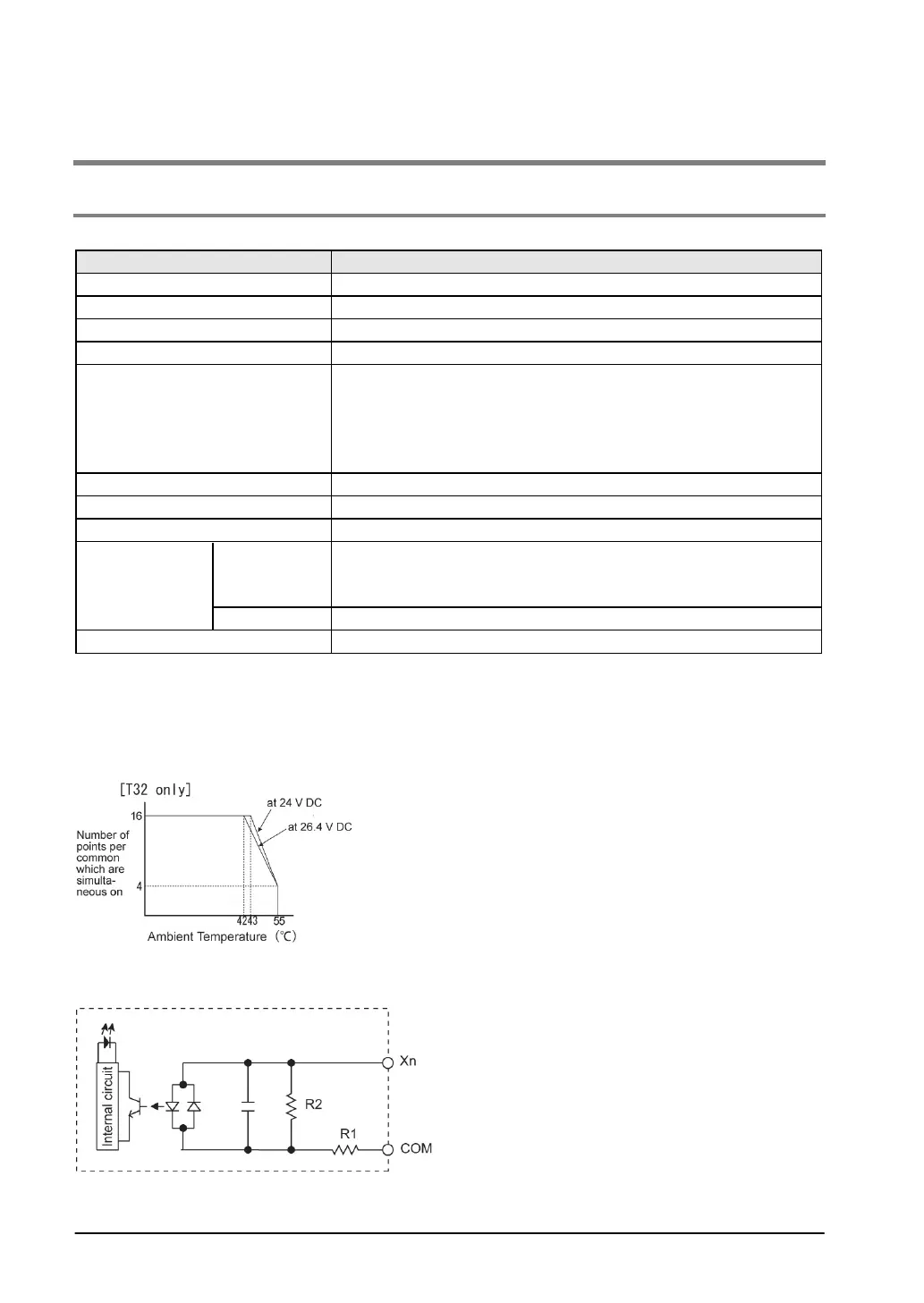

2.2 Input and Output Specifications
2.2.1 Input Specifications
Input specifications (for all types)
Item
Description
Insulation method
Optical coupler
Rated input voltage 24 V DC
operating voltage range 21.6 V DC to 26.4 V DC
Rated input current
Approx. 2.6 mA
Output points per common
For C10: 6 points/common
For C14, C16: 8 points/common
For C32, T32, F32: 16 points/common
(Either the positive or negative of the input power supply can be
connected to common terminal.)
Min. on voltage/Min. on current 19.2 V DC/2 mA
Max. off voltage/Max. off current 2.4 V DC/1.2 mA
Input impedance
9.1 k
Ω
Response time
OFF→ON
20 µs or less
Note) The input time constant can be set using system registers.
(0.1 ms to 64 ms)
ON→OFF Same as above
Operating mode indicator LED display
Note) This specification is applied when the rated input a voltage is 24 V DC and the temperature is
25°C.
Limitations on number of simultaneous input on points
Keep the number of input points per common which are simultaneously on within the following range as
determined by the ambient temperature.
Circuit diagram
R1=9.1 kΩ R2=1 kΩ
